Figure 2-28 4-20 Ma % Scale Display - Keysight U1242C User Manual

2 Making Measurements
Figure 2-28

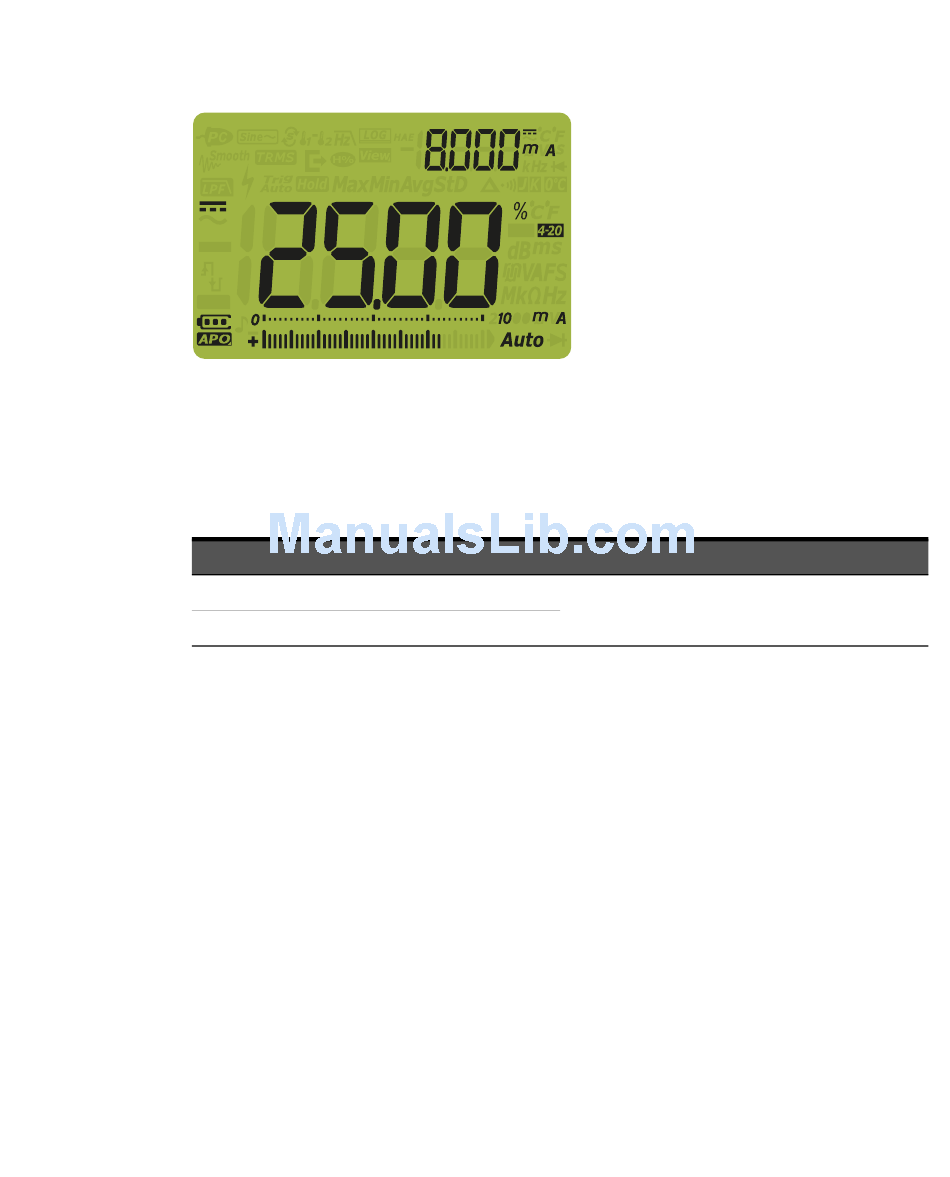

The analog bar graph displays the current measurement value. (In the example
above, 8 mA is represented as 25% in the 4-20 mA % scale.)
Table 2-15
[a] Applies to both autoranging and manual range selection.
You can change the % scale range (4-20 mA or 0-20 mA) by accessing the
multimeter's setup. Refer to "Changing the % scale range" on page 139.
Use the % scale with a pressure transmitter, a valve positioner, or other output
actuators to measure pressure, temperature, flow, pH, or other process variables.
92
4-20 mA % scale display
% scale measurement range
% scale of 4-20 mA or 0-20 mA
999.99%
9999.9%
DC mA measurement range
~1000 mA
