Dynojet POWER COMMANDER V Installation Instructions Manual page 7
For kawasaki ninja 650r 2006; kawasaki ninja 650r 2007; kawasaki ninja 650r 2008; kawasaki ninja 650r 2009; kawasaki ninja 650r 2010; kawasaki ninja 650r 2011; kawasaki er-6n 2006; kawasaki er-6n 2007; kawasaki er-6n 2008; kawasaki er-6n 2009; kawasaki e
Hide thumbs
Also See for POWER COMMANDER V:
- Installation manual (9 pages) ,
- Installation instructions manual (9 pages) ,
- Installation instructions and owner's manuals (8 pages)
Advertisement

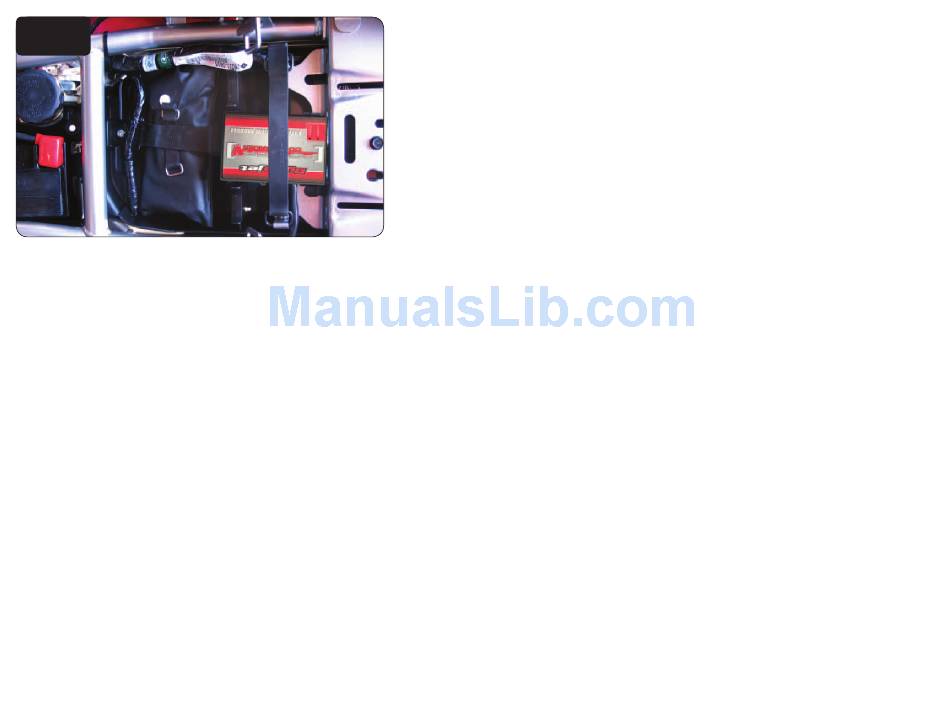

18 Secure the PCV in the tail section using the stock rubber band (Fig. N).
FIG.N
19 Reinstall the air box.
20 Reinstall the fuel tank.
Speed input - YELLOW wire of 3 pin BLACK connector from c/s sprocket
(YEL-PINK-BLK)
Temperature input - ORANGE wire of cylinder temp sensor
12v source for Auto tune - RED wire of 6 pin connector for tail light - under seat
17-030
www.powercommander.com
06-11 Kawasaki 650 PCV - 7
