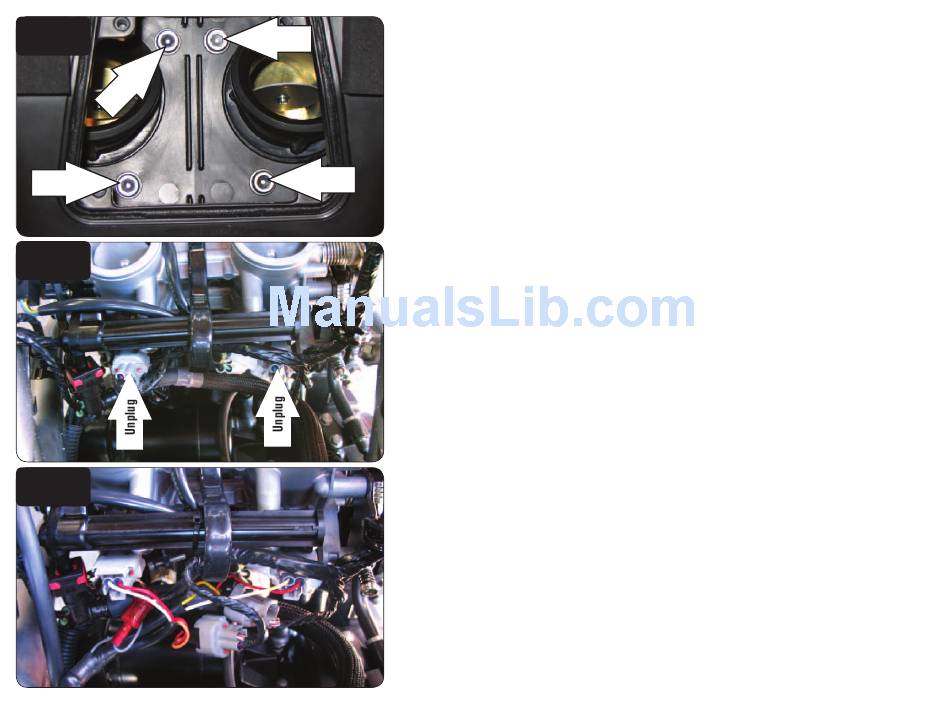

FIG.D
FIG.E
FIG.F
17-030
www.powercommander.com
6
Remove the 4 bolts that hold the air box to the throttle bodies (Fig. D).
7
Disconnect the air box temp sensor and hoses leading to the air box.
8
Remove the air box from the bike.
9
Unplug the stock wiring harness from the injectors (Fig. E).
10 Plug the PCV connectors in-line of the stock wiring harness and fuel injector
(Fig. F) for both cylinders
Connect the ORANGE colored wires of the PCV to the left hand cylinder.
06-11 Kawasaki 650 PCV - 4
