FIG.K
FIG.L
FIG.M
PCV ground
17-030
www.powercommander.com

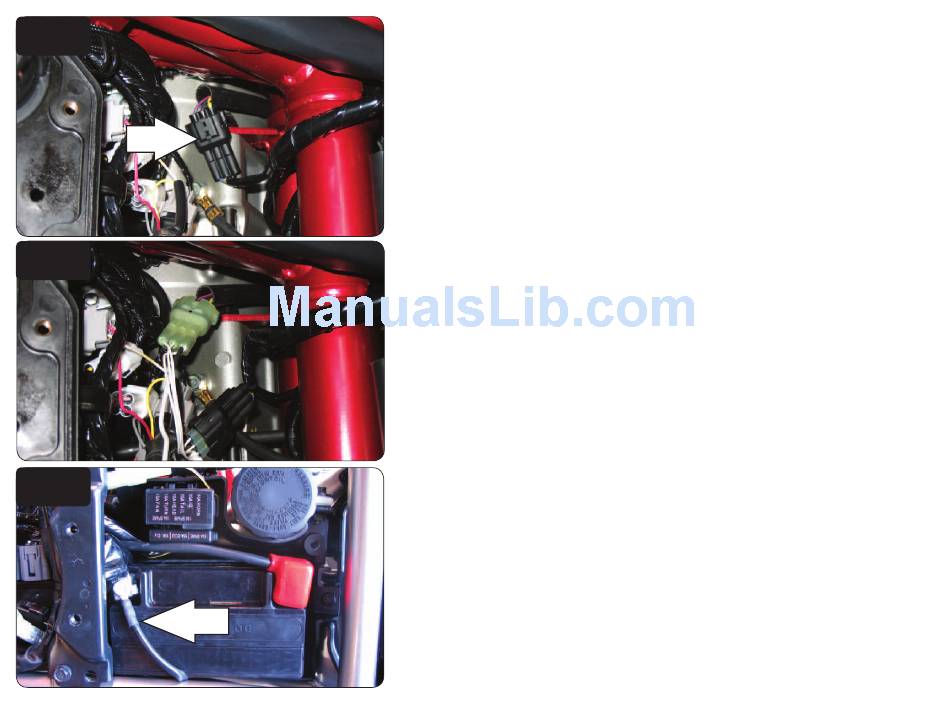

15 Locate the Crank Position Sensor connector to the right rear of the air box
(Fig. K).
This is a BLACK 3 pin connector
16 Plug the PCV connectors in-line of the stock wiring harness and crank position
sensor connector (Fig.L).
17 Connect the ground wire from the PCV to the negative side of the battery
(Fig. M).
06-11 Kawasaki 650 PCV - 6
