FIG.G
FIG.
TPS
FIG.H
FIG.
FIG.J
17-030
www.powercommander.com

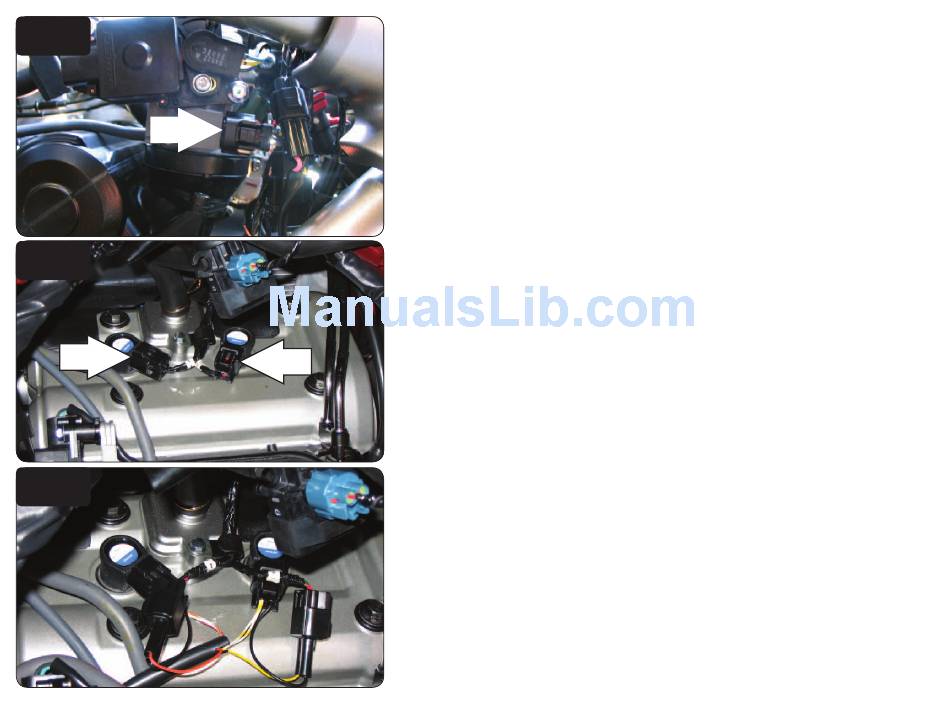

11 Locate the Throttle Position Sensor connector on the left hand side of the
throttle bodies.
12 Unplug the TPS connector from the throttle bodies and connect the PCV
harness in-line of the TPS and stock wiring harness.
13 Unplug the stock wiring harness from each of the ignition stick coils (Fig.H).
14 Plug the PCV harness in-line of the stock wiring harness and each coil stick
(Fig. J).
PCV GREEN wires go to left cylinder
PCV BLUE wires go to right cylinder
06-11 Kawasaki 650 PCV - 5
