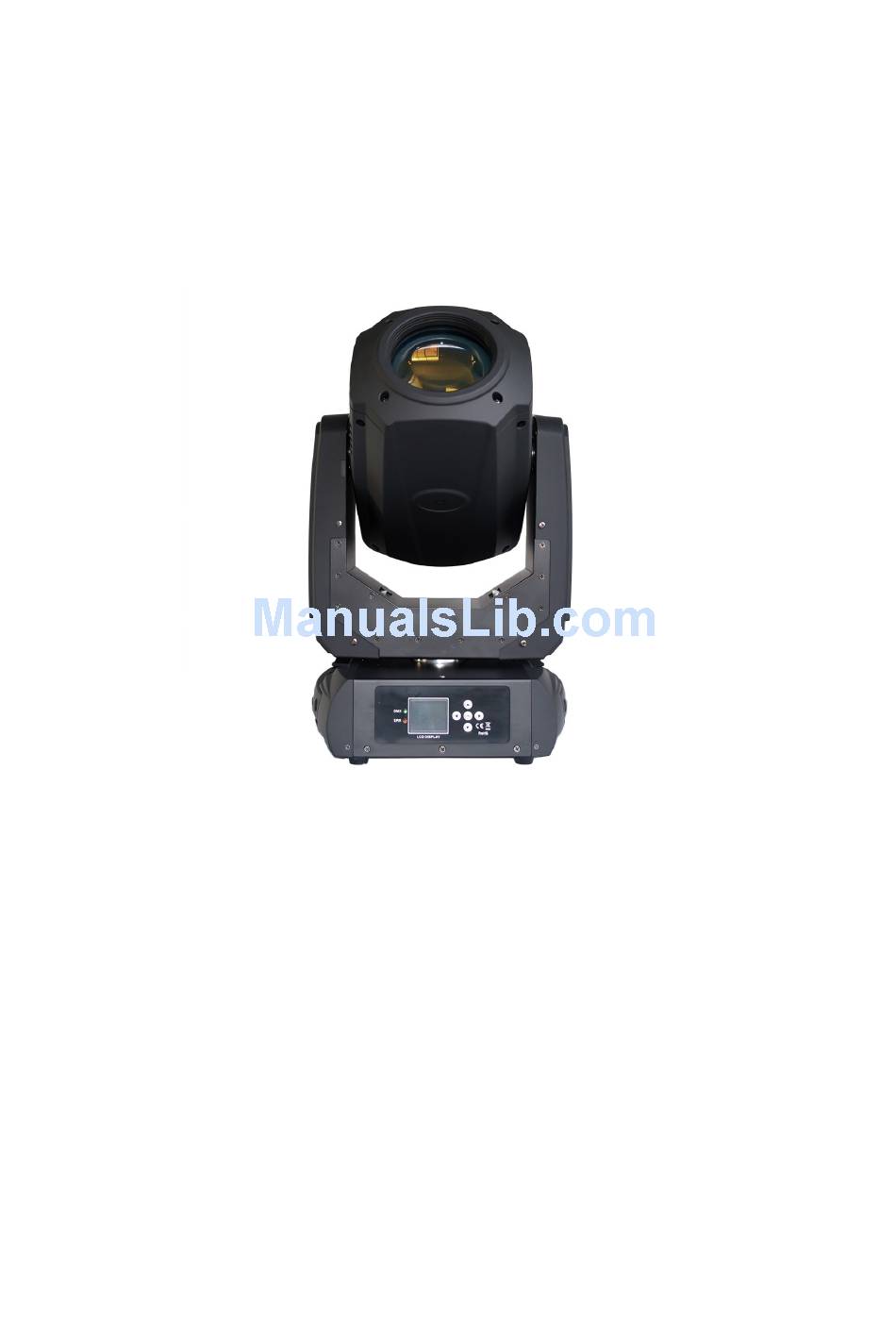

- Page 1 M SPOT 200 LED MOVING HEAD User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..2 DESCRIPTION OF THE DEVICE…………………………………………………………3 INSTALLATION………………………………………………………………….…………..4 OPERATION……………………………………………………………………….………...4 Stand alone operation…………………………………………………………….…………4 Master slave operation…………………………………………………………….……..…4 DMX controlled operation………………………………………………………….…….…4 Addressing…………………………………………………………………………….…..…4 Control board………………………………………………………………………….…..…4 DMX protocol………………………………………………………………………….…..…5 TECHNICAL SPECIFICATIONS…………………………………………………….……8... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
others. DESCRIPTION OF THE DEVICE Features > High power 200w white led > 50000 hours lifetime and lower power consumption > 17 DMX channel in optional > 540 degree PAN and 270 degree tilt movement > 1 Color wheel with 9 diachronic colors plus open >... -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-255 P-T Speed 0-255 Strobe 0-255 Dimmer 0-255 Color Wheel 0-255 Man(Manual) Gobo Wheel 1 0-255 Gobo Wheel 2 0-255 Gobo Wheel 2 Rotation 0-255 Focus 0-255 Zoom 0-255 Prism 0-255 Prism rotation 0-255 Frost 0-255... - Page 7 Dimmer 0-255 0~100% linear dimmer Color wheel White White+Red 10-14 15-19 Red+Green 20-24 Green 25-29 Green+Blue 30-34 Blue 35-39 Blue+Orange 40-44 Orange 45-49 Orange+Purple 50-54 Purple 55-59 Purple+Yellow 60-64 Yellow 65-69 Yellow+Light Green 70-74 Light Green 75-79 Light Green+Light Blue 80-84 Light Blue 85-89...
- Page 8 White light gobo shaking 146-200 Anti-clockwise gobo change with decreasing speed 201-255 Clockwise gobo change with increasing speed Gobo Wheel 2 White 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89...
-
Page 9: Technical Specifications
128-255 All reset TECHNICIAL SPECIFICATIONS Model M SPOT 200 LED MOVING HEAD Voltage 100V- 250V / 50/60Hz Power consumption: 290W 200w high power white led Net Weight / Gross Weight 14.5Kgs / 16.8Kgs Dimensions 44*41*54cm...
