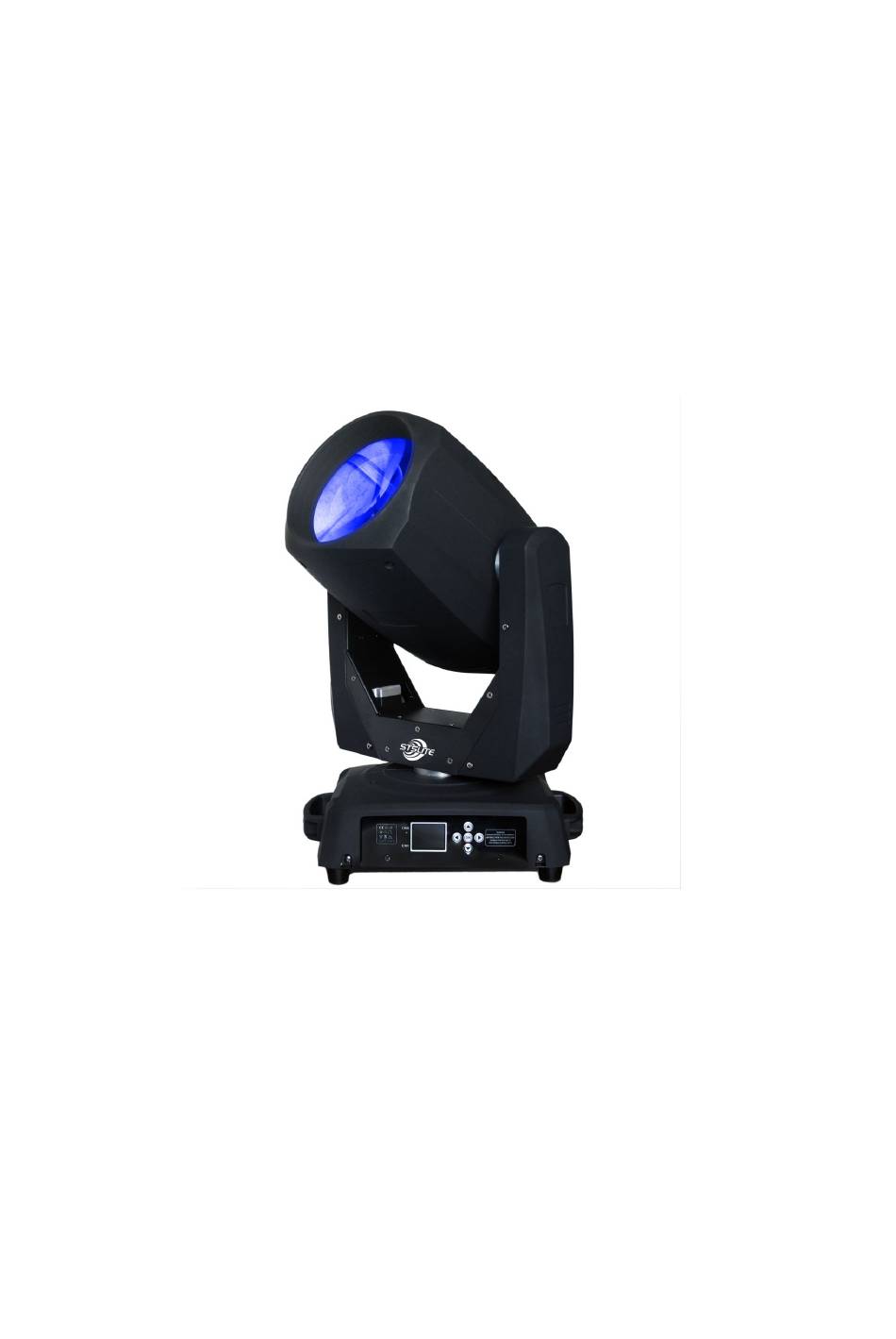

- Page 1 M BEAM 180 LED MOVING HEAD User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..2 DESCRIPTION OF THE DEVICE…………………………………………………………3 INSTALLATION………………………………………………………………….…………..4 OPERATION……………………………………………………………………….………...4 Stand alone operation…………………………………………………………….…………4 Master slave operation…………………………………………………………….……..…4 DMX controlled operation………………………………………………………….…….…4 Addressing…………………………………………………………………………….…..…4 Control board………………………………………………………………………….…..…4 DMX protocol………………………………………………………………………….…..…5 TECHNICAL SPECIFICATIONS…………………………………………………….……8... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of others. DESCRIPTION OF THE DEVICE Features >... -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
DMX signal CLEAR/KEEP Linear color ON/OFF Load Default OK/CANCEL 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-255 P-T Speed 0-255 Strobe 0-255 Dimmer 0-255 Man(Manual) Color 0-255 Gobo 0-255 Focus 0-255 Prism 0-255 Prism Rotation 0-255 Frost 0-255 Reset OK/Cancel VER. - Page 7 Pan Tilt speed 0-255 Pan/Tilt movement with decreasing speed Shutter/Strobe Shutter close 4-251 Strobe with increasing speed 252-255 Shutter open Dimmer 0-255 0~100% linear dimmer Color wheel White White+Red 10-14 15-19 Red+Green 20-24 Green 25-29 Green+Blue 30-34 Blue 35-39 Blue+Orange 40-44 Orange 45-49...
- Page 8 25-29 Gobo 5 30-34 Gobo 6 35-39 Gobo 7 40-44 Gobo 8 45-49 Gobo 9 50-54 Gobo 10 55-59 Gobo 11 60-64 Gobo 12 65-69 Gobo 13 70-74 Gobo 1 shaking with increasing speed 75-79 Gobo 2 shaking with increasing speed 80-84 Gobo 3 shaking with increasing speed 85-89...
-
Page 9: Technical Specifications
251-255 No function TECHNICIAL SPECIFICATIONS Model M BEAM 180 LED MOVING HEAD Voltage 100V- 250V / 50/60Hz Power consumption: 290W 180w high power white led Net Weight / Gross Weight 14Kgs / 16.5Kgs Dimensions 45x43x57cm...
