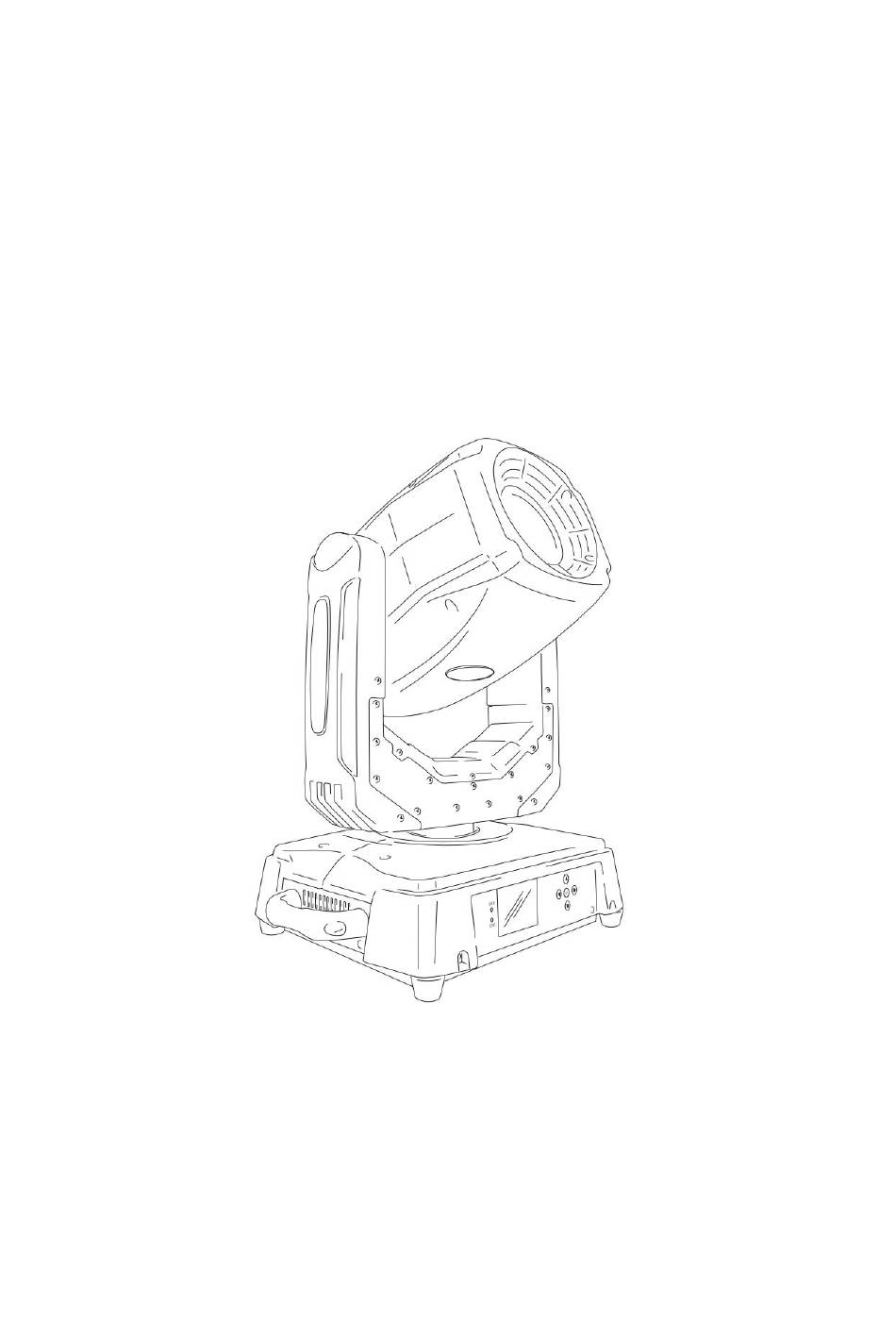

- Page 1 M SPOT 200 User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..3 OPERATION……………………………………………………………………….………...4 Stand alone operation…………………………………………………………….…………4 Master slave operation…………………………………………………………….……..…4 DMX controlled operation………………………………………………………….…….…4 Addressing…………………………………………………………………………….…..…4 Control board………………………………………………………………………….…..…4 DMX protocol………………………………………………………………………….…..…5 TECHNICAL SPECIFICATIONS…………………………………………………….….…8... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Installation
Features > High power 200w white led > 50000 hours lifetime and lower power consumption > 18 DMX channel in optional > Beam angle 14/24 degree > 540 degree Pan and 270 degree Tilt movement > 1 Color wheel with 7 diachronic colors plus white >... -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
Channel Mode 18CH Invert Pan ON/OFF Invert Tilt ON/OFF Pan-Tilt Swap ON/OFF Pan-Tilt Encoder ON/OFF No DMX Signal KEEP/CLEAR Display Power Save ON/OFF Linear change of color wheel ON/OFF Load Default OK/Cancel 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-255 Pan/Tilt 0-255... - Page 7 0-255 Pan fine movement Tilt movement 0-255 Tilt movement Tilt Fine 0-255 Tilt fine movement Pan/Tilt Speed 0-255 Pan/Tilt movement with decreasing speed Shutter/Strobe Shutter close 4-251 Strobe with increasing speed 252-255 Shutter open Dimmer 0-255 0~100% linear dimmer Color wheel White 10-19 20-29...
- Page 8 211-215 Gobo 1 shaking 216-220 Gobo 2 shaking 221-225 Gobo 3 shaking 226-230 Gobo 4 shaking 231-235 Gobo 5 shaking 236-240 Gobo 6 shaking 241-245 Gobo 7 shaking 246-250 Gobo 8 shaking 251-255 Gobo 9 shaking Effect Gobo Change White 8-15 Gobo 1 16-23...
-
Page 9: Technical Specifications
Automatic movement 3 96-135 Automatic movement 4 136-175 Sound-active movement 176-215 Random effect 216-240 No function 241-255 TECHNICIAL SPECIFICATIONS Model M SPOT 200 Voltage 110V- 250V / 50-60Hz Power consumption: 300W 200w high power white led Net Weight 16.95Kgs Dimensions 57cmx43cmx31cm...
