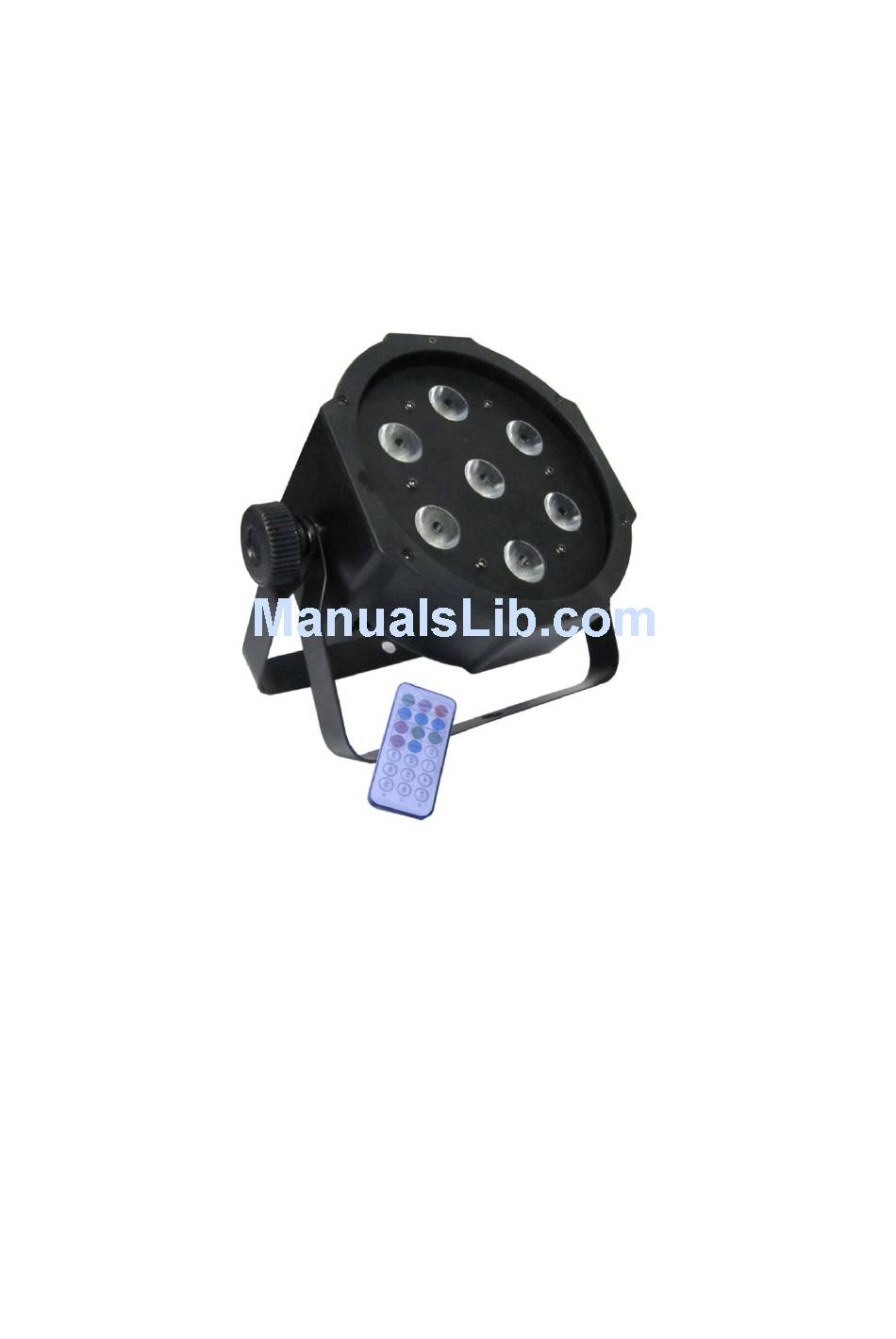

- Page 1 Q PAR 708 wash User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Operating Determinations
outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and mortal electrical shock.Always plug in the power plug last. The power plug must always be inserted without force .Make sure that the plug is tightly connected with the outlet. -
Page 5: Description Of The Device
fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoking machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more then 10 meters. -
Page 6: Operation
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. -
Page 7: Addressing
Addressing The control board allows you to assign the DMX starting address, Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order to ensure proper transmission on the DMX data link. C O N TRO L B O AR D The control board offer several features :you can simple set the starting address, run the pre-programmed program or make a reset... -
Page 8: Dmx Protocol
0-255 Green (0%--100%) Blue 0-255 Blue (0%--100%) White 0-255 White (0%-100%) Dimmer 0-255 Dimmer (0%-100%) Sound and Strobe No function 001-005 Sound control (15 colors) 006-010 No function 011-255 Strobe with increasing speed TECHNICIAL SPECIFICATIONS Model Q Par 708 wash... - Page 9 Voltage 110V- 250V / 50-60Hz Power consumption: 7pcsX8w RGBW 4 in 1 with 25degree beam angle Gross Weight 1.3Kgs Dimensions 245(H) x 245(W) x 150(L) mm...
