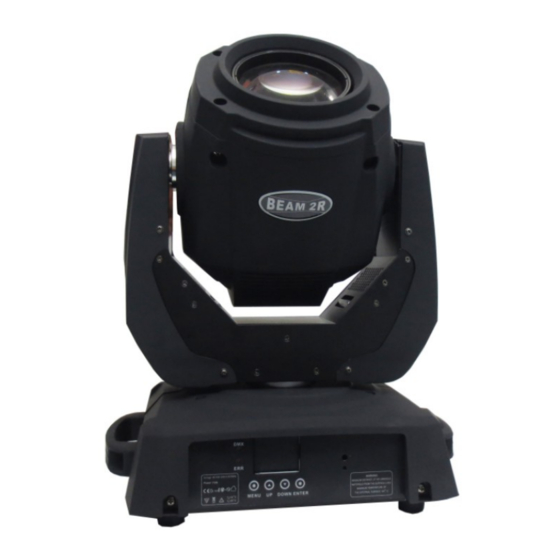

M BEAM 2R MOVING HEAD

User Manual

Ver1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Beam 2R MOVING HEAD and is the answer not in the manual?

Questions and answers

Summary of Contents for STSLITE M Beam 2R MOVING HEAD

  • Page 1: User Manual

    ‘、 M BEAM 2R MOVING HEAD User Manual Ver1.0...
  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7...
  • Page 3: Introduction

    CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product...
  • Page 4: Installation

    > High power 2R lamp > 50000 hours lifetime and lower power consumption > 15 or 19 DMX channel in optional > Beam angle 4 degree, > 540/630 degree PAN and 270 degree tilt movement > 1 Color wheel with 8 diachronic colors plus open >...
  • Page 5: Stand Alone Operation

    After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device DMX controlled operation You can control the projectors individually via your DMX-controller...
  • Page 6 0-255 Tilt fine movement Pan Tilt speed 0-255 Pan/Tilt movement with increasing speed Shutter/Strobe Shutter close 4-251 Strobe with increasing speed 252-255 Shutter open Dimmer 0-255 0~100% linear dimmer Color Wheel White 1-10 Color 1 11-20 Color 2 21-30 Color 3 31-40 Color 4 41-50...
  • Page 7: Color

    196-200 Gobo 3 shaking 201-205 Gobo 4 shaking 206-210 Gobo 5 shaking 211-215 Gobo 6 shaking 216-220 Gobo 7 shaking 221-225 Gobo 8 shaking 226-230 Gobo 9 shaking 231-235 Gobo 10 shaking 236-240 Gobo 11 shaking 241-245 Gobo 12 shaking 246-250 Gobo 13 shaking 251-255...
  • Page 8: Technical Specifications

    Color wheel Speed 0-255 Color wheel in decreasing speed Dimmer/Prism Speed 0-255 Dimmer/Prism in decreasing speed Gobo wheel Speed 0-255 Gobo wheel in decreasing speed TECHNICIAL SPECIFICATIONS Model M Beam 2R MOVING HEAD Voltage 110V- 250V / 50-60Hz Power consumption: 300w...
  • Page 9: Color

    2R high power lamp Net Weight / Gross Weight 11.5Kgs/13kg Fixture dimensions 33x24x36cm...
