Summary of Contents for STSLITE C525 MATRIX

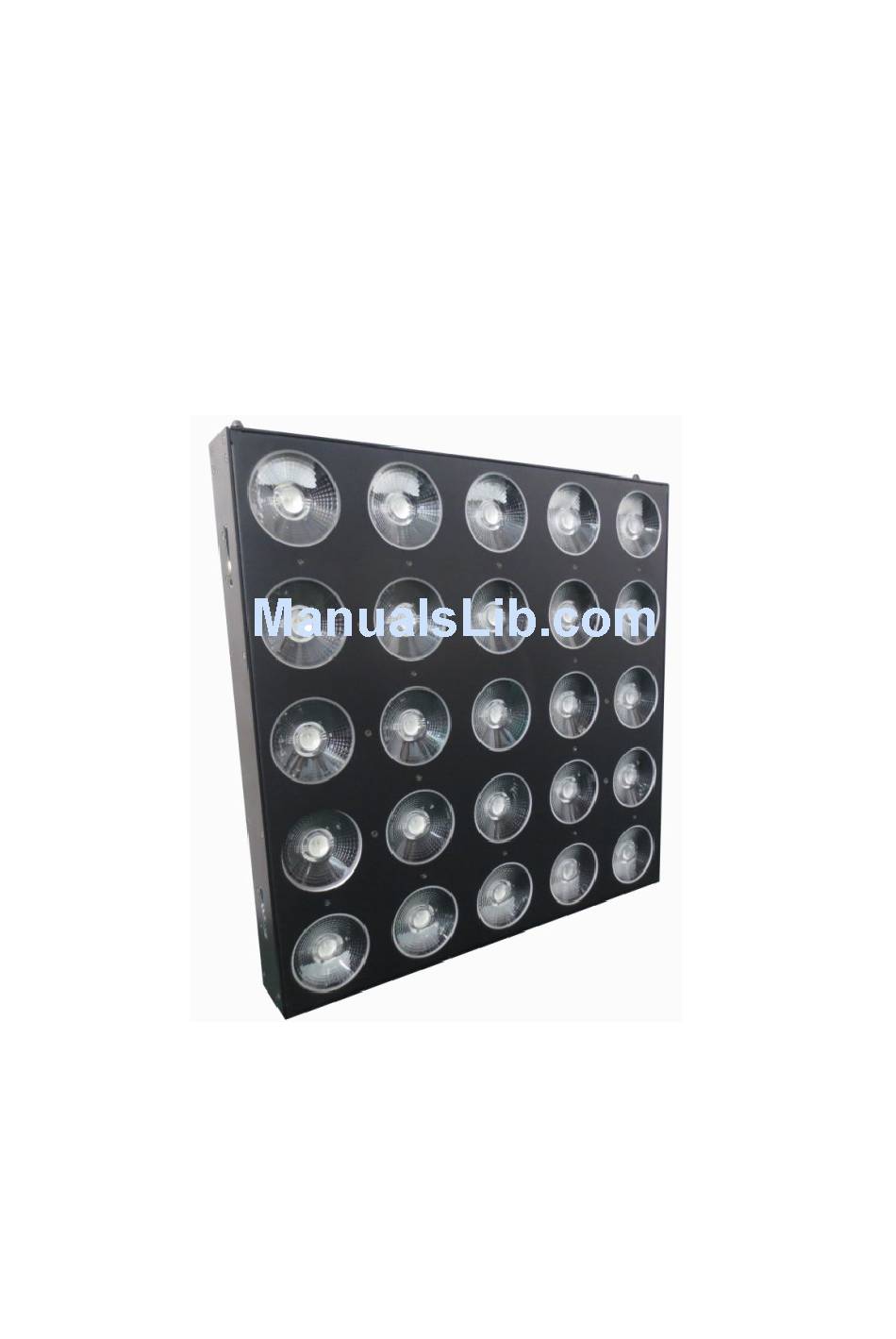

- Page 1 C525 MATRIX COB WASH User Manual...
-
Page 2: Table Of Contents
Ver1.0 Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock .The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. -
Page 5: Operation
damage to property. The projector had to be installed out of the reach of people DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable material(decoration articles, etc.)within a distance of min.0.5m. DMX 512 connection/ connection between fixture The wires must not come into contact with each other, otherwise the fixture will not work at all or properly. -
Page 6: Dmx Protocol
pre-programmed program or make a reset he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every mode by pressing the Mode/Esc-button .The functions provided are described in the following setting. -
Page 7: Channel Mode
Value Function Channel Dimmer 0-255 0-100% dimmer Strobe 0-255 Strobe from slowly to fast Built-in Program 0-20 No function 21-70 Color change 71-120 Color change in fade 121-170 Color change in pulse 171-220 Matrix color change 221-240 Sound control mode 1 241-255 Sound control model 2 Speed... - Page 8 (control 50 fixture under same DMX ddress ) No function 10-14 15-19 20-24 25~255 ID5~ID50 TECHNICIAL SPECIFICATIONS Model C525 MATRIX COB WASH Voltage 110V- 250V / 50-60Hz Power consumption: 600w 25pcs 30w RGB Tri COB LEDs Gross Weight 20.5Kgs Dimensions...
