Page 1: User Manual

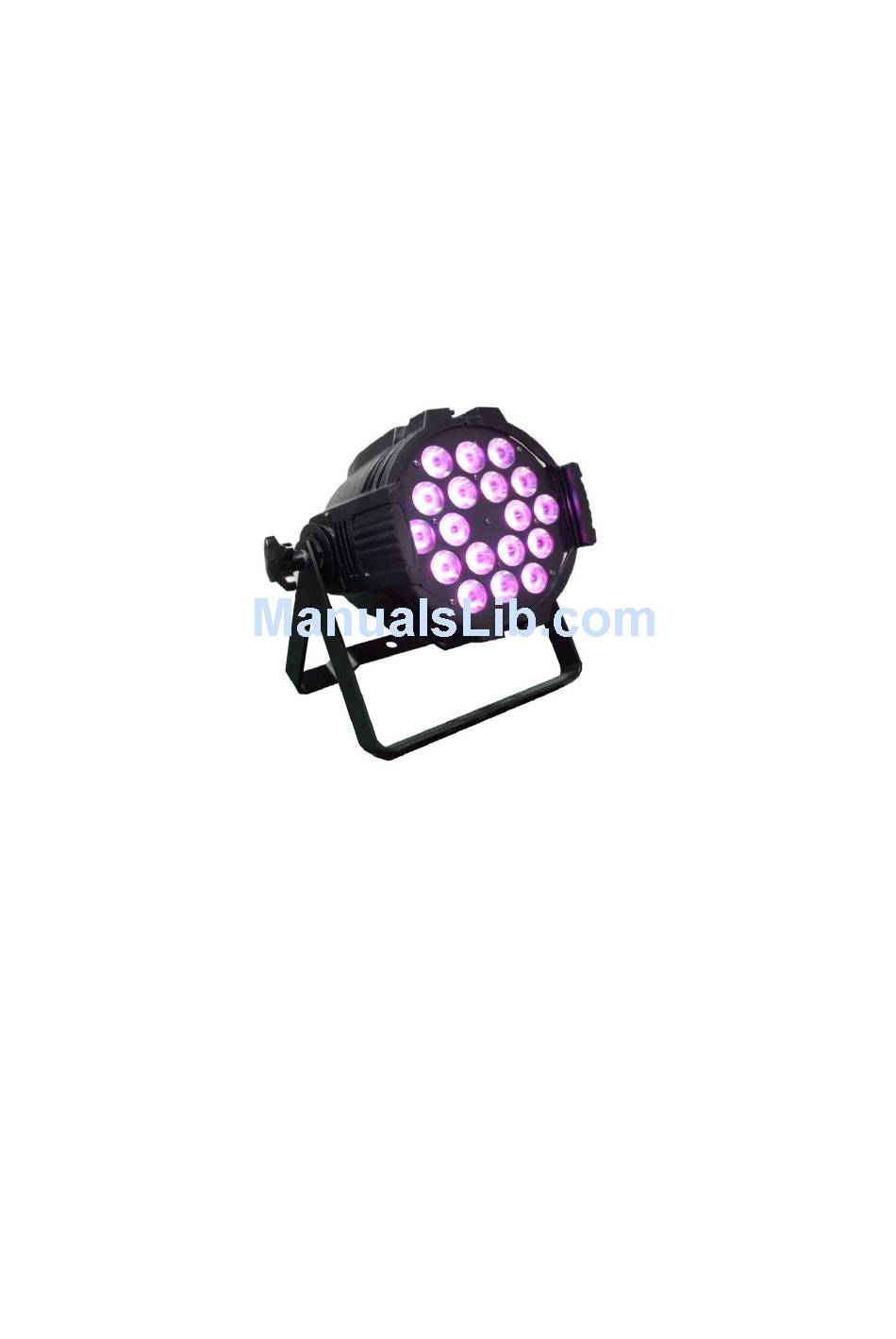

QUAD 188 4 IN 1 WASH User Manual Ver1.0... -
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Operating Determinations
power outlets can lead to the destruction of the device and mortal electrical shock.Always plug in the power plug last. The power plug must always be inserted without force .Make sure that the plug is tightly connected with the outlet. OPERATING DETERMINATIONS This device is designed for permanent operation. -
Page 5: Installation
Features > 18x8w RGBW 4 in 1 LEDs. > Electronic Dimming 0-100% and 4 dimmer mode in optional > Auto/Master & Slave synchronization and sound control > LED operation menu with function buttons > 16 bit dimmer effect and White balance >... -
Page 6: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... - Page 7 AUTO AT From AT01 to AT10 with 10 different auto mode PR From PR01 to PR10 with 10 different mode SOUD MOD1 Sound control with color change MOD2 Sound control with color strobe DMX and SLAV mode for selection Adjust DMX value from 001 to 512 PERS STRG Run static mode ,11 channel with details on dmx protocol ARC.1 Run 3 channel mode Red/Green/Blue...
-
Page 8: Dmx Protocol
Dimmer 4 most slowly ID selection No function 10-211 Each 10 value with a ID from ID1 until ID19 211-222 Each value with a ID from ID20 until ID66 TECHNICIAL SPECIFICATIONS Model Quad 188 PAR WASH Voltage 110V- 250V / 50-60Hz... - Page 9 Power consumption: 180W 18pcsX8w RGBW 4 in 1 Gross Weight 5.5Kgs Dimensions 245(H) x 245(W) x 360(L) mm...
