Page 1: User Manual

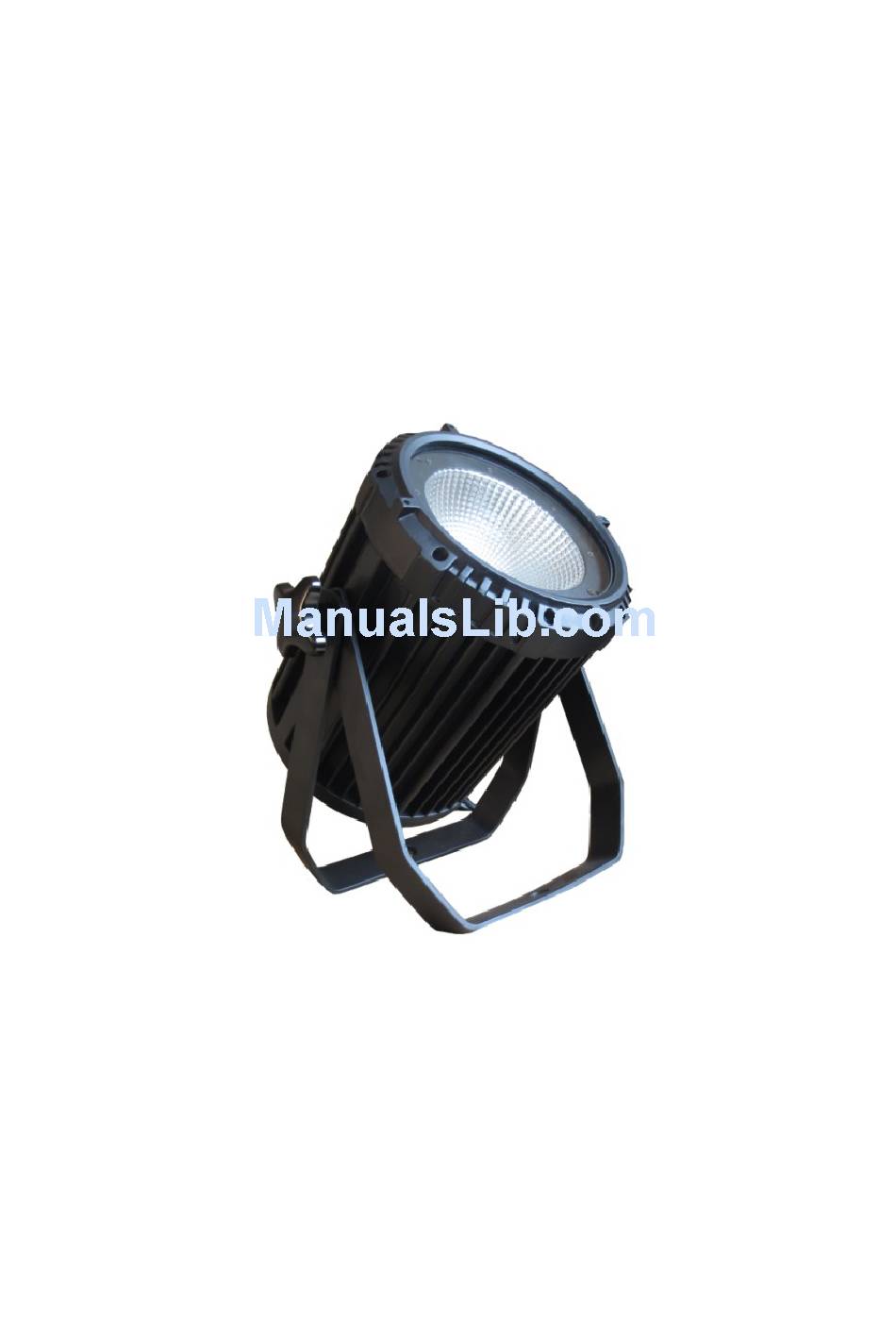

COB PAR 100SQ WASH User Manual Ver1.0... -
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
edges. Check the device and the power-cord from time to time. If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords. OPERATING DETERMINATIONS This device is designed for permanent operation. -
Page 5: Operation
material(decoration articles, etc.)within a distance of min.0.5m. DMX 512 connection/ connection between fixture The wires must not come into contact with each other, otherwise the fixture will not work at all or properly. Please note the starting address depends upon which controller is being used. Only use a DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture to another Connection with the mains. -
Page 6: Dmx Protocol
he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every mode by pressing the Mode/Esc-button .The functions provided are described in the following setting. - Page 7 OFF/DIM1/DIM2/DIM3/DIM4 White balance adjustment CAL 1 WT01 to WT.11 to adjust R/G/B/W from 0~255 Ps:when run stat dmx mode, channel 9 can show 11 different white color RGBW adjust correct color CAL 2 RGB adjust from 25~255 Master/slave mode(auto-running、sound control) This mode will allow you to link up 32 units together without a controller.
- Page 8 Each 10 value with a ID from ID1 until ID19 10-211 Each value with a ID from ID20 until ID66 211-222 TECHNICIAL SPECIFICATIONS Model COB PAR 100SQ WASH Voltage 110V- 250V / 50-60Hz Power consumption: 120w RGBW QUAD COB LEDs Gross Weight 6.5Kgs...
