Section 2 Inside Views - Icom IC-F6012 Service Manual

SECTION 2.

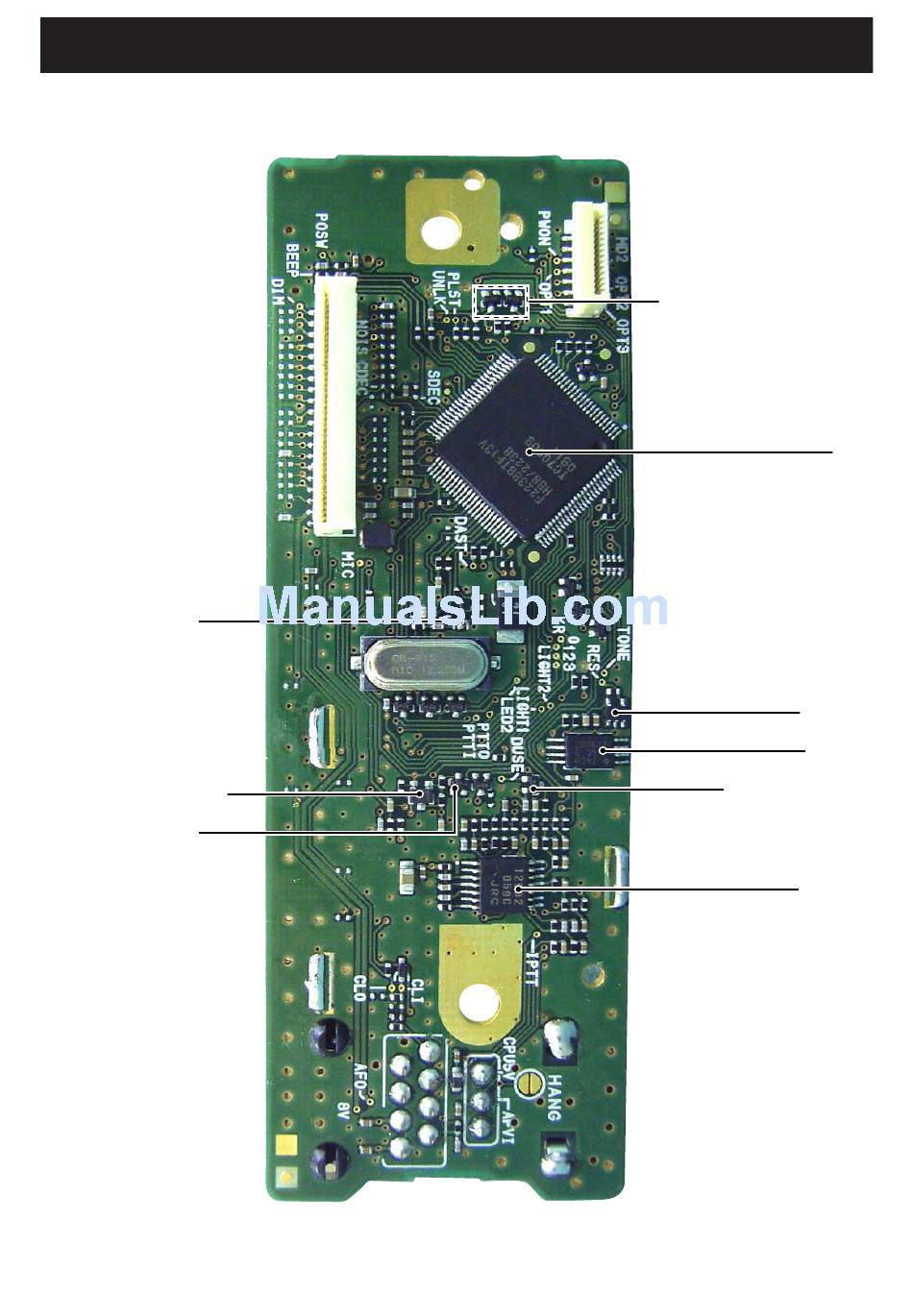

• FRONT UNIT
(TOP VIEW)
CLOCK FREQUENCY
SHIFT DIODE
(D6)
KEY BACKLIGHT DRIVER
(Q1)
KEY BACKLIGHT SW
(Q2)
INSIDE VIEWS
2 - 1
TX/RX INDICATOR LED DRIVERS
(Q13 and Q14)
RESET IC
(IC2)
EEPROM
(IC3)
TONE FILTER SWITCH
(Q3)
TONE LPF
(IC5)
CPU
(IC1)
