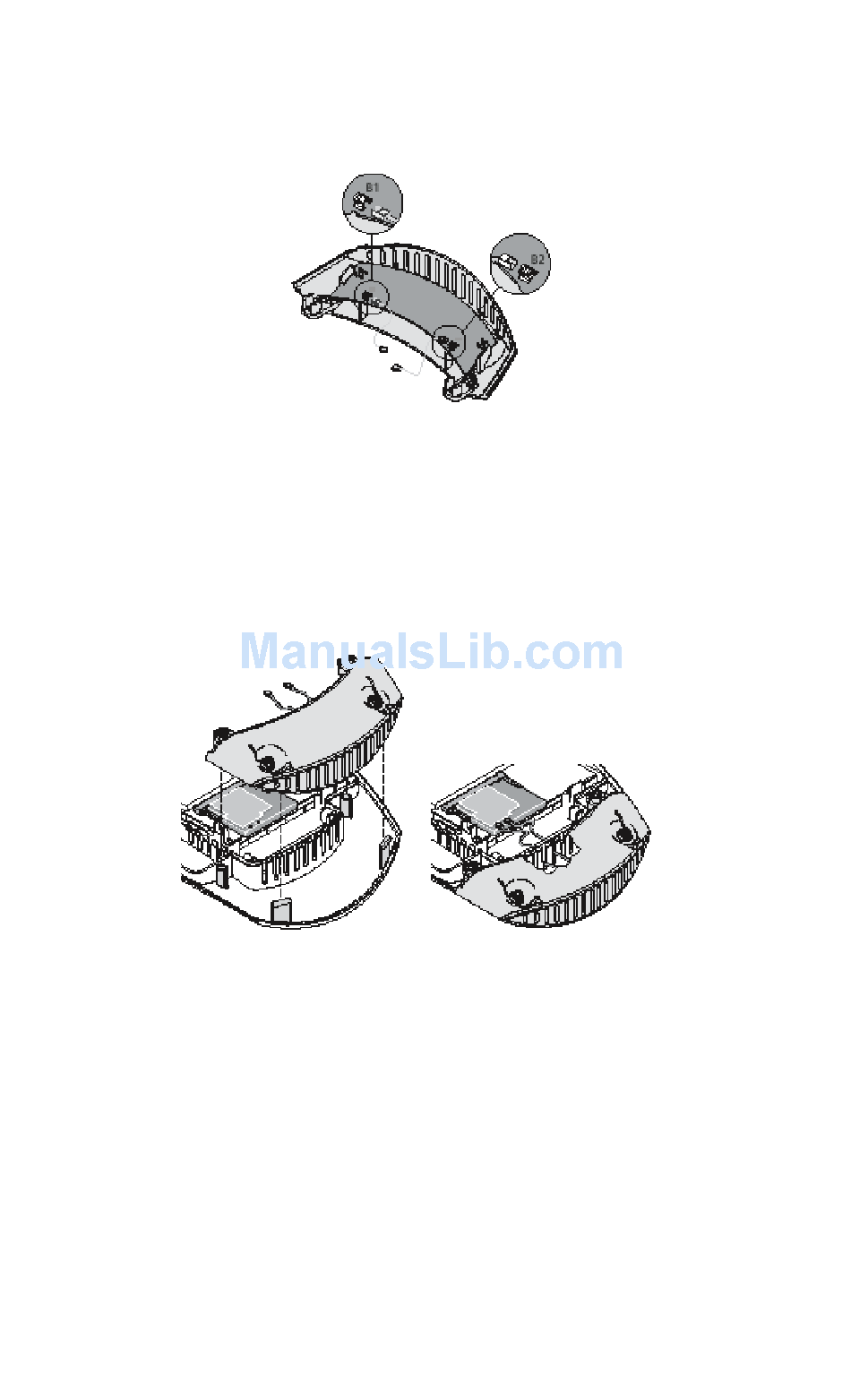

Attach the cables to the antenna module.
With the notched side of the square connector facing up (button side facing down), insert one cable connector
into the B1 connection on the antenna module and push gently until it snaps into place. Attach the other cable
connector to the B2 connection in the same manner.
6
Attach the antenna module and connect the cables.
1
Align the antenna module with the snaps and posts on the unit and press until the module
snaps firmly into place. Make sure the cables are routed through the slots in the unit.
2
Align the free end of one cable with one connector on the board. Press until the cable snaps
into place. Repeat with the other cable and the other connector. (You can connect either cable
to either connector; the order is not important.)
3
After the cables are connected, press them down out of the way inside the housing.
