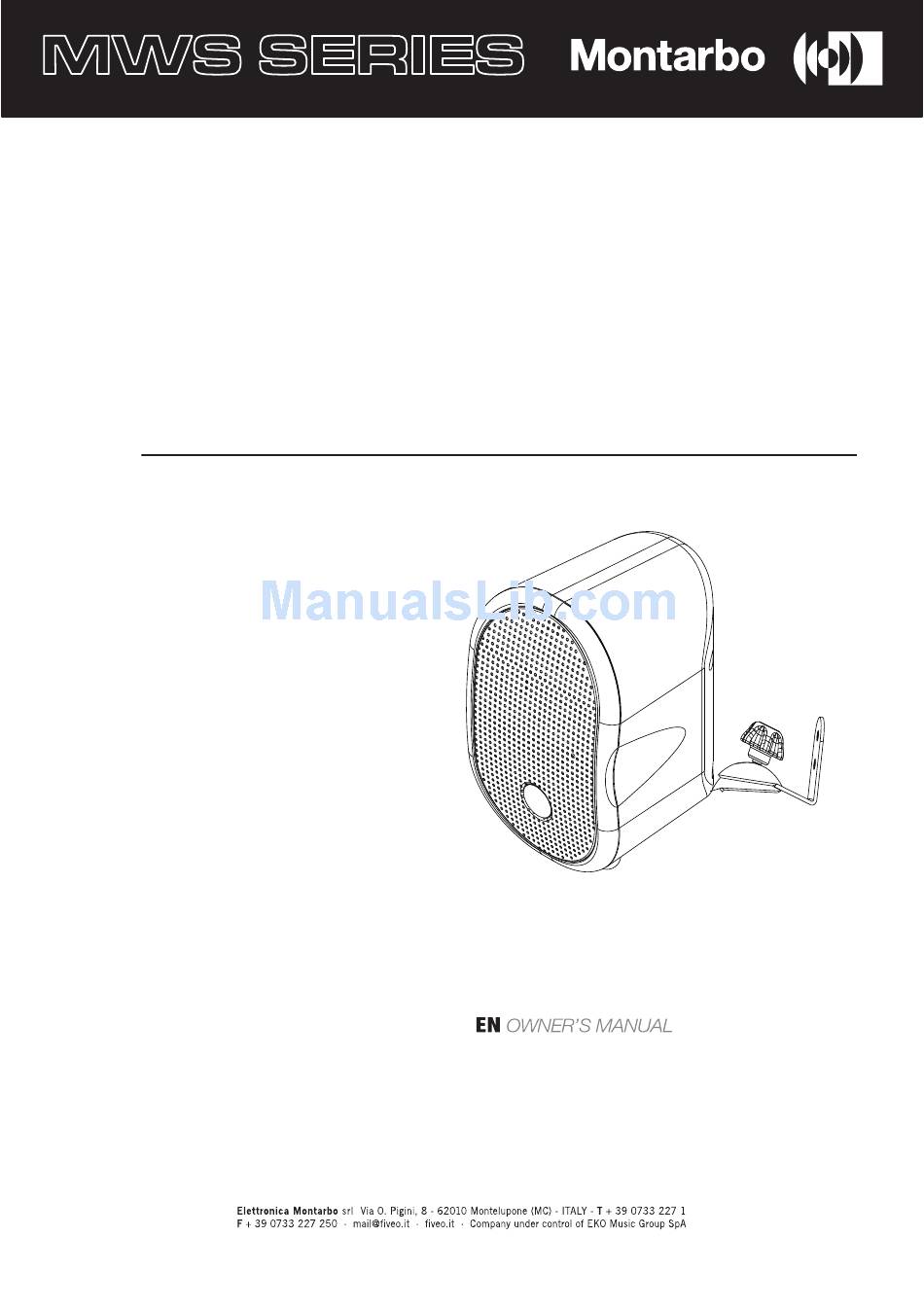

- Page 1 MWS SERIES OUTDOORS INDOORS SPEAKER MWS40A / MWS40AW / MWS40T...
- Page 2 Important Safety Instructions - 2 -...
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION 2. FEATURES 3. CONTROL ELEMENT 4. CONNECTION DIAGRAM 5. INSTALLATION DESCRIPTION 6. BLOCK DIAGRAM 7. FREQUENCY RESPONSE DIAGRAM 8. TECHNICAL SPECIFICATION - 3 -... -
Page 4: Introduction
MWS40A / MWS40AW / MWS40T are designed for indoor and outdoor installation and public address system. They provide quality performance and alternative two models, including speaker cabinet with transformer and active speaker cabinet. Further more, we offer optional metal rotatable mounting bracket, thus you can install MWS SERIES speakers on wall easily. -
Page 5: Control Element
It is used to input stereo signal. 6- LINK It is used for outer signal output and be connected with other active speaker cabinets. 7- Volume Control It is used to adjust the main volume. MWS40T MWS40A / MWS40AW - 5 -... -
Page 6: Connection Diagram
Connection Diagram LEVEL DISTRIBUTION SYSTEM FOR MWS40T MWS40T have built in transformer of 70/100V , can connect many speakers to one channel , and only need one amplifier. The amplifier output terminal "com/-'' stands for negative polar, terminal "70V/100V/+" stands For positive. The red speaker terminal stands for positive, black stands for negative. -
Page 7: Installation Description
Installation Description Note: Commercial audio installation system must conform to local building laws. When install speaker on wall or ceiling, please consult a building designer with a license or a professional engineer. The corporation won't be responsible for the improper installation or damage because of not conforming to installation description. - Page 8 Installation Description Every reflection will loss the energy. When the acoustic hit the reflection surface, the room will be filled with random reflected acoustic wave. The music and address will be complex. It is recommended that install more speakers and make the volume of speakers lower to reduce the reverberation in high reverberating room.
-
Page 9: Block Diagram
Block Diagram - 9 -... -
Page 10: Frequency Response Diagram
Frequency Response Diagram MWS40A / MWS40AW MWS40T - 10 -... -
Page 11: Technical Specification
Technical Specification Model MWS40A / MWS40AW MWS40T System Type Speaker cabinet with transformer Active speaker cabinet 4''(106mm)paper cone speaker 4''(106mm)paper cone speaker Speaker 1''(25.4mm)voice coil diameter 1''(25.4mm)voice coil diameter 90 dB(±3dB) 90 dB(±3dB) SPL at 1m/1w 76Hz-18KHz 76Hz-18KHz Frequency Response(-10dB)
