SECTION 2.
EEPROM
(IC52)
CPU CLOCK
(X51)
CLOCK FREQUENCY
SHIFT DIODE
(D60)
BACKLIGHT LED DRIVER
(Q1)
DIMMER CONTROLLER
(Q2)
MIC AMP FREQUENCY
RESPONSE SW
(IC54)
INSIDE VIEWS

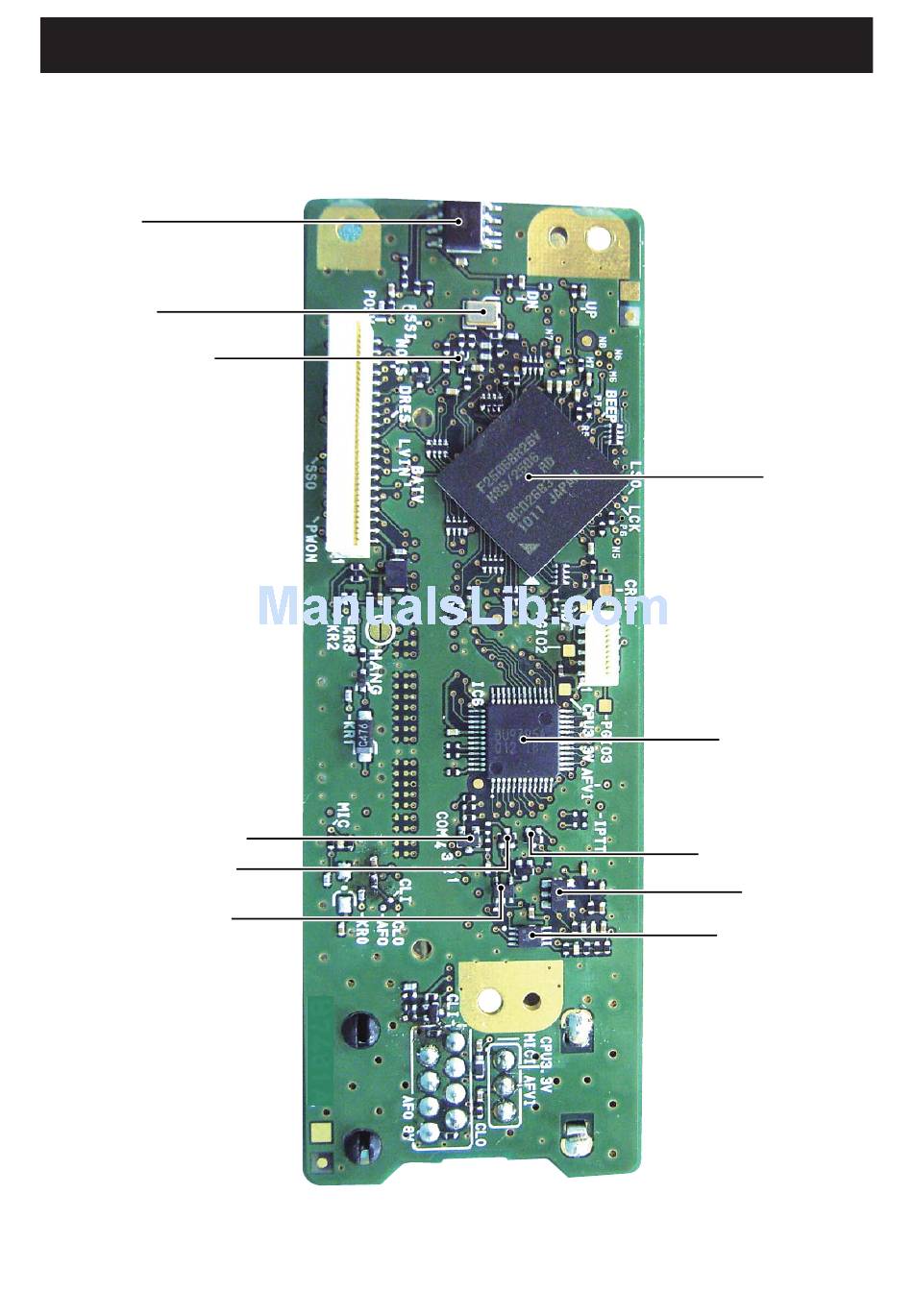

• FRONT UNIT
2 - 1
CPU
(IC51)
LCD DRIVER
(IC6)
BACKLIGHT SW
(Q5)
MIC AMP
(IC7)
MIC GAIN SW
(IC53)
