RKC INSTRUMENT SRZ Instruction Manual

Module type controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual


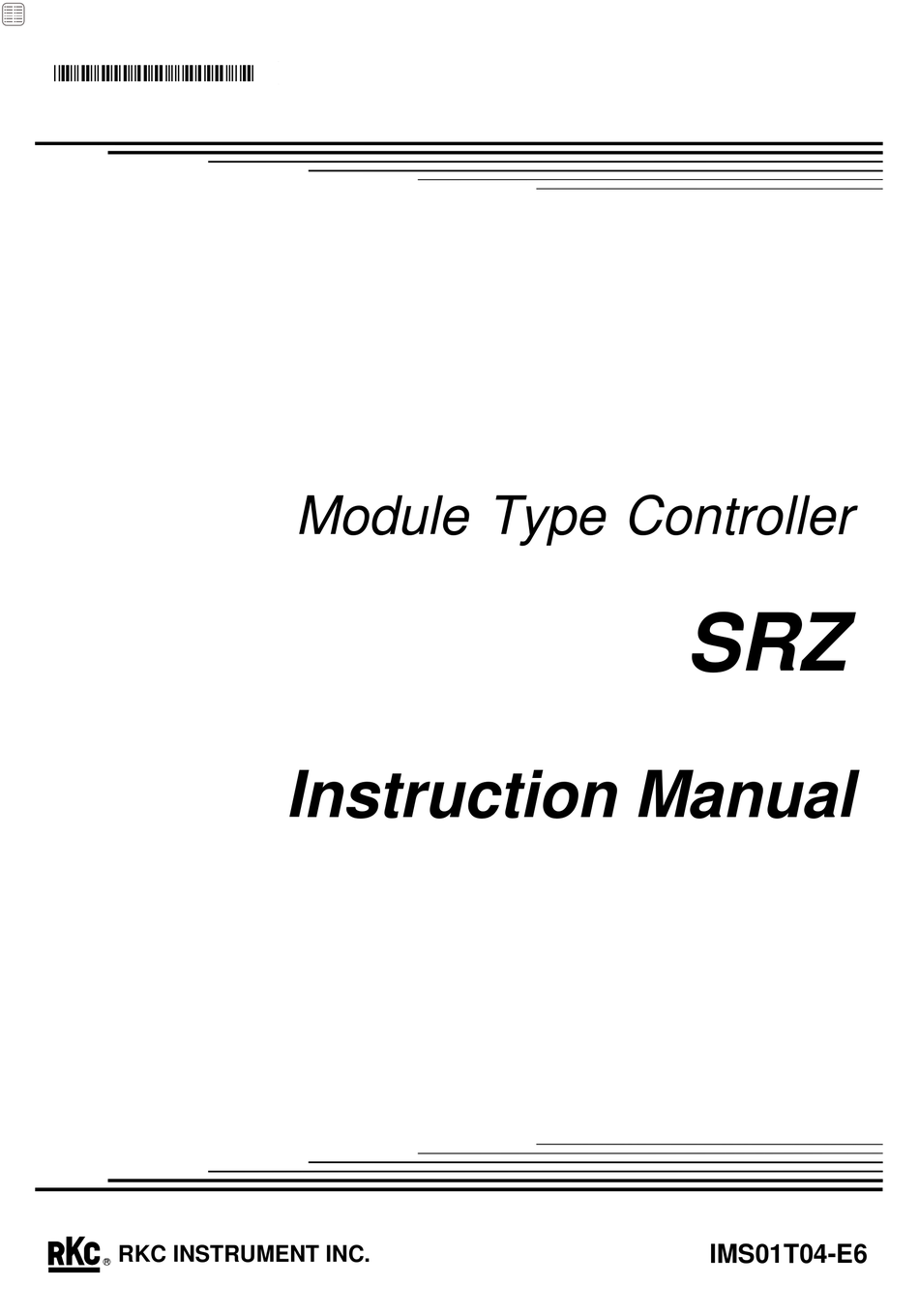

Module Type Controller
SRZ
Instruction Manual
IMS01T04-E6
RKC INSTRUMENT INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RKC INSTRUMENT SRZ

Summary of Contents for RKC INSTRUMENT SRZ

  • Page 1  Module Type Controller Instruction Manual IMS01T04-E6 RKC INSTRUMENT INC.
  • Page 2  Modbus is a registered trademark of Schneider Electric.  Company names and product names used in this manual are the trademarks or registered trademarks of the respective companies.

  • Page 3: Ims01T04-E6

    Thank you for purchasing this RKC product. In order to achieve maximum performance and ensure proper operation of the instrument, carefully read all the instructions in this manual. Please place the manual in a convenient location for easy reference. SYMBOLS : This mark indicates precautions that must be taken if there is danger of electric WARNING shock, fire, etc., which could result in loss of life or injury.
  • Page 4 CAUTION  This product is intended for use with industrial machines, test and measuring equipment. (It is not designed for use with medical equipment and nuclear energy plant.)  This is a Class A instrument. In a domestic environment, this instrument may cause radio interference, in which case the user may be required to take additional measures.

  • Page 5: Table Of Contents

    CONTENTS Page 1. OUTLINE ................1-1 1.1 Features ...................... 1-2 1.2 Checking the Product .................. 1-3 1.2.1 Z-TIO module ......................1-3 1.2.2 Z-DIO module ......................1-3 1.2.3 Optional (sold separately) ..................1-3 1.3 Model Code....................1-4 1.3.1 Z-TIO module ......................1-4 1.3.2 Z-DIO module ......................
  • Page 6 Page 6. RKC COMMUNICATION ........... 6-1 6.1 Polling ......................6-2 6.1.1 Polling procedures ....................6-2 6.1.2 Polling procedures example ..................6-7 6.2 Selecting ....................... 6-8 6.2.1 Selecting procedures ....................6-8 6.2.2 Selecting procedures example ................6-11 6.3 Communication Data Structure ..............6-12 6.4 Communication Data List................
  • Page 7 Page 8. COMMUNICATION DATA DESCRIPTION ....... 8-1 8.1 Reference to Communication Data Contents ..........8-2 8.2 Communication Data of Z-TIO Module ............8-3 8.2.1 Normal setting data items ..................8-3 8.2.2 Engineering setting data items ................8-61 8.3 Communication Data of Z-DIO Module ............. 8-143 8.3.1 Normal setting data items ...................
  • Page 8 MEMO IMS01T04-E6...

  • Page 9: Outline

    OUTLINE 1.1 Features ................... 1-2 1.2 Checking the Product ............... 1-3 1.2.1 Z-TIO module .................... 1-3 1.2.2 Z-DIO module .................... 1-3 1.2.3 Optional (sold separately) ................1-3 1.3 Model Code ..................1-4 1.3.1 Z-TIO module .................... 1-4 1.3.2 Z-DIO module .................... 1-7 1.4 Parts Description ................

  • Page 10: Features

     4CH Z-TIO module can have 4 CT (current transformer) inputs.  Up to 16 Z-TIO modules can be connected. [The maximum number of SRZ modules (including other function modules) on the same communication line is 31.]  Z-DIO module (Z-DIO-A) ...

  • Page 11: Checking The Product

    [For Host communication] (IMS01T02-E)  Joint connector cover KSRZ-517A Enclosed with instrument  Power terminal cover KSRZ-518A(1) Enclosed with instrument  SRZ Instruction Manual This manual (sold separately) * (IMS01T04-E6) This manual can be downloaded from the official RKC website: http://www.rkcinst.com/english/manual_load.htm 1.2.2 Z-DIO module...

  • Page 12: Model Code

    1. OUTLINE 1.3 Model Code Check that the product received is correctly specified by referring to the following model code list: If the product is not identical to the specifications, please contact RKC sales office or the agent. 1.3.1 Z-TIO module ...
  • Page 13 1. OUTLINE  Output Code Table Output type Code Output type Code Voltage output (0 to 1 V DC) Voltage output (1 to 5 V DC) Voltage output (0 to 5 V DC) Current output (0 to 20 mA DC) Voltage output (0 to 10 V DC) Current output (4 to 20 mA DC) ...
  • Page 14 1. OUTLINE  Quick start code 2 (Initial setting code) Quick start code 2 tells the factory to ship with each parameter preset to the values detailed as specified by the customer. Quick start code is not necessarily specified when ordering, unless the preset is requested. These parameters are software selectable items and can be re-programmed in the field via the manual.

  • Page 15: Z-Dio Module

    1. OUTLINE 1.3.2 Z-DIO module Z-DIO-A □－□ □／□－□□□□□□□ (2) (3) (7) (8) Suffix code Specifications Hardware coding only Quick start code1 Wiring type Terminal type Connector type Digital input (DI) None 8 points None Digital output (DO) Relay contact output (8 points) Open collector output (8 points) Quick start code No quick start code (Configured to factory default)
  • Page 16 1. OUTLINE Continued from the previous page.  DO assignment code table [DO1 to DO4] Code No assignment DO1 manual output DO2 manual output DO3 manual output DO4 manual output Event 1 comprehensive output Event 2 comprehensive output Event 3 comprehensive output Event 4 comprehensive output Event 1 (CH1) Event 2 (CH1)

  • Page 17: Parts Description

    1. OUTLINE 1.4 Parts Description 1.4.1 Z-TIO module  Module mainframe <Terminal type> (Left side) (Right side) Loader communication / L I R N U FAIL/ UN connector RX/TX RX/TX DIP switch Indication lamps Address setting switch Input CT Input connector select switch* (Optional) (for CH3)
  • Page 18 1. OUTLINE  Base (Right side) (Right side) Base Base (Z-TIO-A: Terminal type) (Z-TIO-A: Connector type) (Base: Front) Joint connector Mounting holes (M3 screw) Used to mechanically and electrically connect Holes for screws to fix the base to each module. a panel, etc.

  • Page 19: Z-Dio Module

    1. OUTLINE 1.4.2 Z-DIO module  Module mainframe <Terminal type> (Right side) Loader Indication lamps FAIL/ UN RX/TX communication DIP switch Address setting switch connector Digital input Digital output terminals terminals Base <Connector type> (Right side) Loader Indication lamps FAIL/ UN RX/TX DIP switch communication...
  • Page 20 MEMO 1-12 IMS01T04-E6...

  • Page 21: Setting Procedure To Operation

    SETTING PROCEDURE TO OPERATION 1.1 ******** ....................1-2 1.2 ******* ....................1-3 1.3 ****** ....................1-4 1.4 *********** ..................1-5 1.4.1 ***** ......................1-6 1.4.2 ******** ....................... 1-7 IMS01T04-E6...
  • Page 22 Execute it after turning off a power supply of the host computer. Refer to 4. WIRING (P. 4-1). Power-OFF Power-ON Turn on the power of the host computer and SRZ. Communication program start Setting of Engineering setting data Before setting operation data items, always set initial setting data items so as to satisfy the specification used.
  • Page 23 2. SETTING PROCEDURE TO OPERATION Position proportioning PID control Control action type? PID control or Adjustment of the valve position Heat/Cool PID control For details, refer to P. 8-118. Setting of Normal setting data Set parameters in Normal setting of data. For normal setting data items, refer to following pages.
  • Page 24 MEMO IMS01T04-E6...

  • Page 25: Mounting

    MOUNTING 3.1 Mounting Cautions ................3-2 3.2 Dimensions ..................3-4 3.3 Important Points When Joining Modules .......... 3-5 3.4 DIN Rail Mounting and Removing ............ 3-6 3.5 Panel Mounting ................3-8 IMS01T04-E6...

  • Page 26: Mounting Cautions

    3. MOUNTING 3.1 Mounting Cautions This chapter describes installation environment, mounting cautions, dimensions and mounting procedures. WARNING To prevent electric shock or instrument failure, always turn off the power before mounting or removing the instrument. (1) This instrument is intended to be used under the following environmental conditions. (IEC 61010-1) [OVERVOLTAGE CATEGORY II, POLLUTION DEGREE 2] (2) Use this instrument within the following environment conditions: ...
  • Page 27 00433384 Joint connector cover  Installing direction of SRZ unit Mount the SRZ unit in the direction specified as shown below. Bottom (5) If this instrument is permanently connected to equipment, it is important to include a switch or circuit-breaker into the installation. This should be in close proximity to the equipment and within easy reach of the operator.

  • Page 28: Dimensions

    3. MOUNTING 3.2 Dimensions Terminal type module (Unit: mm) Z-TIO-AT: 4-channel type Z-TIO-BT: 2-channel type Connector type module (Unit: mm) 89.7 76.9 76.9 Connector type (sold separately): Connector type (sold separately): SRZP-01 [Front-screw type] SRZP-02 [Side-screw type] Z-TIO-AC: 4-channel type Z-TIO-BC: 2-channel type IMS01T04-E6...

  • Page 29: Important Points When Joining Modules

    16 Z-DIO modules SRZ unit 16 Z-TIO-A modules 15 Z-DIO modules The maximum number of SRZ modules (including other function modules) on the same communication line is 31. Therefore, when 16 Z-TIO modules are connected, up to 15 Z-DIO modules can be connected.

  • Page 30: Din Rail Mounting And Removing

    3. MOUNTING 3.4 DIN Rail Mounting and Removing  Mounting procedures 1. Pull down the mounting bracket at the bottom of the module (A). Attach the hooks on the top of the module to the DIN rail and push the lower section into place on the DIN rail (B). 2.
  • Page 31 3. MOUNTING 5. Connect the required number of function modules. 6. Install a plastic cover on the connector on both sides of the mounted modules for protection of connectors. Joint connector cover To firmly fix the modules, use end plates on both sides of the mounted modules. End plate End plate (sold separately)

  • Page 32: Panel Mounting

    3. MOUNTING 3.5 Panel Mounting  Mounting procedures 1. Refer to the mounting dimensions below when selecting the location. (30) (Unit: mm) 300.2 Recommended screw: M3  10 Recommended tightening torque: 0.3 N･m (3 kgf･cm) Base Mounting dimensions 2. Remove the base from the module (B) while the lock is pressed (A). (Fig. 1) Lock (Bottom of the module mainframe) Fig.

  • Page 33: Wiring

    WIRING 4.1 Wiring Cautions ................4-2 4.2 Connecting Precautions ..............4-4 4.3 Terminal Configuration ..............4-5 4.3.1 Z-TIO module .................... 4-5 4.3.2 Z-DIO module ..................4-10 4.4 Connection to Host Computer ............4-12 4.5 Installation of Termination Resistor ..........4-17 4.6 Connections for Loader Communication ........

  • Page 34: Wiring Cautions

    4. WIRING 4.1 Wiring Cautions This chapter describes wiring cautions, wiring layout and wiring of terminals. WARNING To prevent electric shock or instrument failure, do not turn on the power until all wiring is completed. Make sure that the wiring is correct before applying power to the instrument.
  • Page 35 4. WIRING When a screw of the instrument, make sure tightening to fit the screwdriver properly into the screw head mounted tilted or flat as shown in the right figure. Tightening the screw with excessive torque may damage the screw thread. Tilted terminal Flat terminal ...

  • Page 36: Connecting Precautions

    4. WIRING 4.2 Connecting Precautions WARNING To prevent electric shock or instrument failure, turn off the power before connecting or disconnecting the instrument and peripheral equipment.  Connect connectors correctly in the right position. If it is forcibly pushed in with pins in the wrong positions, the pins may be bent resulting in instrument failure.

  • Page 37: Terminal Configuration

    4. WIRING 4.3 Terminal Configuration 4.3.1 Z-TIO module  Input/Output terminals <Terminal type module> Z-TIO-AT Z-TIO-BT <Common to both 2-channel/4-channel types> 4-channel type 2-channel type Open collector Triac output Voltage pulse/ Relay contact output Current/Voltage output output OUT1 OUT1 OUT1 OUT1 ...
  • Page 38 4. WIRING <Connecter type module> Z-TIO-AC Z-TIO-BC <Common to both 2-channel/4-channel types> 4-channel type 2-channel type Open collector Triac output Voltage pulse/ Relay contact output Current/Voltage output output OUT1 OUT1 OUT1 OUT1  Triac  Voltage/Current RTD input Thermocouple input input ...
  • Page 39 4. WIRING Input/output configurations by control specifications CH1 output CH2 output CH3 output CH4 output CH1 input CH2 input CH3 input CH4 input Control type terminal terminal terminal terminal terminal terminal terminal terminal (OUT1) (OUT2) (OUT3) (OUT4) (Input1) (Input2) (Input3) (Input4) Control output Control output...
  • Page 40 4. WIRING  Power supply terminals, Communication terminals (Common to both terminal and connector type module) Power supply terminals Communication terminals (RS-485) Terminal No. Description Terminal No. Description 24 V DC () T/R (A) 24 V DC () T/R (B) ...
  • Page 41 4. WIRING  CT input connector (Optional) Pin No. Description Pin No. Description CT4 (CH4) CT2 (CH2) CT3 (CH3) CT1 (CH1) For the CT input, use the following our CT cable (with socket) and current transformer (CT). [sold separately] Cable type: W-BW-03- (: Standard cable length [unit: mm]) 1000: 1m, 2000: 2 m, 3000: 3 m [Solderless terminal] Blue:...
  • Page 42 4. WIRING 4.3.2 Z-DIO module  Digital input (DI1 to DI8) <Terminal type module> <Connecter type module> Voltage Voltage contact input contact input Pin No. Description Pin No. Description CAUTION Flat terminal Tilted terminal An external power supply of 24 V DC is required for the voltage contact input. Voltage contact input ...
  • Page 43 4. WIRING  Digital output (DO1 to DO8) <Terminal type module> <Connecter type module> Relay Open collector Relay contact output/ contact output output Open collector output Pin No. Description Pin No. Description CAUTION Flat terminal Tilted terminal * An external power supply of 12 to 24 V DC is required for the open collector output. Relay contact output Open collector output Load...

  • Page 44: Z-Tio Module

    Examples of configurations of SRZ units that can be connected to a host computer are shown below. “SRZ unit” refers to a unit consisting of only Z-TIO modules, or a unit in which Z-TIO modules are connected to several other function modules (Z-DIO, Z-CT and Z-COM).
  • Page 45 Power supply (24 V DC) Regardless of the number of units, a maximum of 16 SRZ Z-TIO modules and a maximum of 16 SRZ Z-DIO modules can be connected respectively. However, the maximum number of SRZ modules that can be connected overall, including other function modules (Z-DIO, Z-CT and Z-COM), is 31.
  • Page 46 Up to 16 Z-TIO modules can be connected. The maximum number of SRZ modules (Z-DIO, Z-CT and Z-COM) on the same communication line is 31. The maximum number of SRZ modules (including other function modules) on the same communication line is 31.
  • Page 47 Up to 16 Z-TIO modules can be connected. The maximum number of SRZ modules (including other function modules) on the same communication line is 31. The maximum number of SRZ modules (Z-DIO, Z-CT and Z-COM) on the same communication line is 31.
  • Page 48 Up to 16 Z-TIO modules can be connected. The maximum number of SRZ modules (including other function modules) on the same communication line is 31. The maximum number of SRZ modules (Z-DIO, Z-CT and Z-COM) on the same communication line is 31.

  • Page 49: Installation Of Termination Resistor

    When connecting termination resistors to each end of the RS-485 communication line, follow the procedure below to connect the resistor to the SRZ end. For the termination resistor on the host computer side, connect it so as to satisfy the host computer used.
  • Page 50 4. WIRING  When two or more SRZ units are connected (distributed arrangement) SRZ unit (Slave) Z-TIO module Z-DIO module Internal communication line (RS-485) Host RS-485 computer (master) SRZ unit (Slave) Z-TIO module Z-DIO module Internal communication line (RS-485) RS-485...

  • Page 51: Connections For Loader Communication

    A loader communication cable (optional) is required for the connection to the Loader communication connector on the module. USB communication converter COM-K-1 (with Loader communication cable [cable length: 1 m]) The communication tool (WinUCI-SRZ, PROTEM2) can be downloaded from the official RKC website: http://www.rkcinst.com/.
  • Page 52 MEMO 4-20 IMS01T04-E6...

  • Page 53: Settings Before Operation

    SETTINGS BEFORE OPERATION 5.1 Module Address Setting ..............5-2 5.2 Protocol Selections and Communication Speed Setting ....5-3 5.3 Operating Precautions ..............5-4 5.4 Communication Requirements ............5-5 IMS01T04-E6...

  • Page 54: Module Address Setting

    5. SETTINGS BEFORE OPERATION 5.1 Module Address Setting Set communication setting before mounting and wiring of the Z-TIO module. WARNING  To prevent electric shock or instrument failure, always turn off the power before setting the switch.  To prevent electric shock or instrument failure, never touch any section other than those instructed in this manual.

  • Page 55: Protocol Selections And Communication Speed Setting

    5. SETTINGS BEFORE OPERATION 5.2 Protocol Selections and Communication Speed Setting Use the DIP switch on the right side of module to select communication speed, data bit, configuration and protocol. The data changes become valid when the power is turned on again or when changed to RUN/STOP.

  • Page 56: Operating Precautions

    5. SETTINGS BEFORE OPERATION 5.3 Operating Precautions Check the following items before starting operation, then turn on the power.  Power ON When first powered on, the unit starts with the operation mode set to “Control” and the RUN/STOP switch set to STOP (control is stopped) (FAIL/RUN display lamp: lights green).

  • Page 57: Communication Requirements

    5. SETTINGS BEFORE OPERATION 5.4 Communication Requirements  Processing times during data send/receive When the host computer is using either the polling or selecting procedure for communication, the following processing times are required for controller to send data: - Response wait time after controller sends BCC in polling procedure - Response wait time after controller sends ACK or NAK in selecting procedure RKC communication (Polling procedure) Procedure details...
  • Page 58 5. SETTINGS BEFORE OPERATION  RS-485 (2-wire system) send/receive timing RS-485 communication is conducted through two wires, therefore the transmission and reception of data requires precise timing.  Polling procedure Possible Send data (Possible/Impossible) Host Impossible computer Sending status - - - - - Possible Send data (Possible/Impossible)

  • Page 59: Rkc Communication

    COMMUNICATION 6.1 Polling ....................6-2 6.1.1 Polling procedures ..................6-2 6.1.2 Polling procedures example ..............6-7 6.2 Selecting................... 6-8 6.2.1 Selecting procedures ................6-8 6.2.2 Selecting procedures example ..............6-11 6.3 Communication Data Structure ............6-12 6.4 Communication Data List ............... 6-13 6.4.1 Reference to communication data list .............

  • Page 60: Polling

    The communication tool (WinUCI-SRZ, PROTEM2) can be downloaded from the official RKC website: http://www.rkcinst.com/. 6.1.1 Polling procedures Polling is the action where the host computer requests one of the connected SRZ to transmit data. An example of the polling procedure is shown below: Host Host...
  • Page 61 1. Address (2 digits) This data is a module address of the SRZ for polled and must be the same as the module address set value in item 5.1 Module Address Setting (P. 5-2). The polling address which transmitted a message once becomes effective so long as data link is not initialized by transmit and receive of EOT.
  • Page 62 6. RKC COMMUNICATION 3. Identifier (2 digits) The identifier specifies the type of data that is requested from the SRZ. Always attach the ENQ code to the end of the identifier. Refer to 6.4 Communication Data List (P. 6-13). 4. ENQ The ENQ is the transmission control character that indicates the end of the polling sequence.
  • Page 63  When all the data has been sent (5) No response from the SRZ The SRZ will not respond if the polling address is not received correctly. It may be necessary for the host computer to take corrective action such as a time-out.
  • Page 64 If the host computer does not receive correct data from the SRZ, it sends a negative acknowledgment NAK to the SRZ. The SRZ will re-send the same data when NAK is received. This cycle will go on continuously until either recovery is achieved or the data link is corrected at the host computer.

  • Page 65: Polling Procedures Example

    02H 53H 31H 30H 31H 20H 20H 20H 34H 30H 30H 2EH 30H Identifier Channel No. Data Continue to *1 SRZ send Host computer send  02H 50H 31H 30H 31H 20H 03H 48H SRZ send  Error transmission...

  • Page 66: Selecting

    Host computer sends selecting address for the selecting sequence. Address (2 digits): This data is a module address of the SRZ to be selected and must be the same as the module address set value in item 5.1 Module Address Setting (P. 5-2).
  • Page 67 <Example> When data send with 001.5, 01.5, 1.5, 1.50, 1.500 at the time of 1.5, SRZ can receive a data.  When the host computer sends data with decimal point to item of without decimal point, the SRZ receives a message with the value that cut off below the decimal point.
  • Page 68 An acknowledgment ACK is sent by the SRZ when data received is correct. When the host computer receives ACK from the SRZ, the host computer will send any remaining data. If there is no more data to be sent to the SRZ, the host computer sends EOT to terminate the data link.

  • Page 69: Selecting Procedures Example

    04H 30H 31H 02H 4BH 31H 53H 31H 30H 31H 20H 20H 20H 34H 30H 30H 2EH 30H Address Memory Identifier Channel No. Data area number Continue to *1 SRZ send Host computer send Host computer send  02H 50H 31H 30H 31H 20H SRZ send  Error transmission Error data Host computer send ...

  • Page 70: Communication Data Structure

    6. RKC COMMUNICATION 6.3 Communication Data Structure  Data description (Transmission/Receive data structure) ......................Data Part of the data above is shown below.  Data for each channel Data length 7 digits 1 0 0 Memory Channel Data Identifier Data Channel area number *...

  • Page 71: Communication Data List

    RKC will not bear any responsibility for malfunction or failure as a result of improper changes in the Engineering setting. When attempting to poll non-existing communication data item (invalid identifier), EOT is returned from the SRZ. In case of selecting, NAK is returned from the SRZ. 6-13 IMS01T04-E6...

  • Page 72: Communication Data Of Z-Tio Module

    6. RKC COMMUNICATION 6.4.2 Communication data of Z-TIO module Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value  Model code Model code (character)  ROM version ROM version  Measured value (PV) Input scale low to Input scale high Varies with the setting of the decimal point position.
  • Page 73 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value  Memory area soak time 0 minutes 00 seconds to 199 minutes 59 seconds: monitor 0:00 to 199:59 (min:sec) 0 hours 00 minutes to 99 hours 59 minutes: 0:00 to 99:59 (hrs:min) Data range of Area soak time can be selected on the Soak...
  • Page 74 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value LBA deadband ★ 0 to Input span 0 (0.0) Varies with the setting of the decimal point position. Set value (SV) ★ Setting limiter low to Setting limiter high TC/RTD: 0 (0.0) V/I: 0.0...
  • Page 75 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value Manual reset ★  100.0 to +100.0 % If the Integral function is valid, set to RO (Only reading data is possible).
  • Page 76 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 100.0 to 100.0 % Output distribution bias 9.999 to 9.999 Output distribution ratio 1.000 Proportional cycle time 0.1 to 100.0 seconds Relay contact output: 20.0 This item becomes RO (Only reading data is possible) for the...
  • Page 77 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value EDS value learning times 0 to 10 times (0: No learning mode) EDS start signal 0: EDS start signal OFF 1: EDS start signal ON (for disturbance 1) 2: EDS start signal ON (for disturbance 2) Operation mode...
  • Page 78 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 0: C Based on Display unit 1: F model code When not Use to select the temperature unit for Thermocouple (TC) and specifying: 0 RTD inputs.
  • Page 79 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 0: None Event 1 type Based on 1: Deviation high (Using SV monitor value) model code 2: Deviation low (Using SV monitor value) 3: Deviation high/low (Using SV monitor value) When not 4: Band (Using SV monitor value)
  • Page 80 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 0: None Event 2 type Based on 1: Deviation high (Using SV monitor value) model code 2: Deviation low (Using SV monitor value) 3: Deviation high/low (Using SV monitor value) When not 4: Band (Using SV monitor value)
  • Page 81 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 0: None Event 3 type Based on 1: Deviation high (Using SV monitor value) model code 2: Deviation low (Using SV monitor value) 3: Deviation high/low (Using SV monitor value) When not 4: Band (Using SV monitor value)
  • Page 82 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 0: None Event 4 type Based on 1: Deviation high (Using SV monitor value) model code 2: Deviation low (Using SV monitor value) 3: Deviation high/low (Using SV monitor value) When not 4: Band (Using SV monitor value)
  • Page 83 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value CT ratio 0 to 9999 CTL-6-P-N: 800 CTL-12-S56-10L -N: 1000 0: None 3: OUT3 CH1: 1 CT assignment 1: OUT1 4: OUT4 CH2: 2 2: OUT2...
  • Page 84 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 140 Action (high) at input error 0: Normal control 1: Manipulated output value at input error 141 Action (low) at input error 105.0 to 105.0 % 142 Manipulated output value at input error...
  • Page 85 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 157 AT differential gap time  0.0 to 50.0 seconds 10.0 158 Proportional band adjusting 0.01 to 10.00 times 1.00 factor [heat-side] ...
  • Page 86 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value Action at feedback 0: Action depending on the valve action at STOP resistance (FBR) input error 1: Control action continued ...
  • Page 87 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value PV transfer function 0: Unused 1: Used Operation mode 0: No assignment assignment 1 1: Operation mode (Monitor/Control) 2: Operation mode (Monitor  Event function/Control) (Logic output selection function) 3: Auto/Manual...

  • Page 88: Communication Data Of Z-Dio Module

    6. RKC COMMUNICATION 6.4.3 Communication data of Z-DIO module Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value  Model code Model code (character)  ROM version ROM version  Digital input (DI) state 1 Least significant digit: DI1 2nd digit: 3rd digit: 4th digit:...
  • Page 89 6. RKC COMMUNICATION Continued from the previous page. Iden- Attri- Struc- Factory Name Digits Data range tifier bute ture set value 9.999 to 9.999 DO output distribution ratio 1.000 Relay contact DO proportional cycle time 0.1 to 100.0 seconds output: 20.0 Open collector output: 2.0 DO minimum ON/OFF...
  • Page 90 MEMO 6-32 IMS01T04-E6...

  • Page 91: Modbus

    MODBUS 7.1 Communication Protocol ..............7-2 7.1.1 Message format ..................7-2 7.1.2 Function code ................... 7-3 7.1.3 Communication mode ................7-3 7.1.4 Slave responses ..................7-4 7.1.5 Calculating CRC-16 .................. 7-5 7.2 Register Read and Write ..............7-8 7.2.1 Read holding registers [03H] ..............7-8 7.2.2 Preset single register [06H] ..............

  • Page 92: Communication Protocol

    The master controls communication between master and slave. A typical message consists of a request (query message) sent from the master followed by an answer (response message) from the slave (SRZ). When master begins data transmission, a set of data is sent to the slave in a fixed sequence. When it is received, the slave decodes it, takes the necessary action, and returns data to the master.

  • Page 93: Function Code

    7. MODBUS 7.1.2 Function code  Function code contents Function code Function Contents (Hexadecimal) Read holding registers Measured value, control output value, current transformer input measured value, Event status, etc. Preset single register Set value, PID constants, event set value, etc. Diagnostics (loopback test) Loopback test Preset multiple registers...

  • Page 94: Slave Responses

    7. MODBUS 7.1.4 Slave responses (1) Normal response  In the response message of the Read Holding Registers, the slave returns the read out data and the number of data items with the same slave address and function code as the query message. ...

  • Page 95: Calculating Crc-16

    7. MODBUS 7.1.5 Calculating CRC-16 The Cyclic Redundancy Check (CRC) is a 2 byte (16-bit) error check code. After constructing the data message, not including start, stop, or parity bit, the master calculates a CRC code and appends this to the end of the message.
  • Page 96 7. MODBUS  The flow chart of CRC-16 START FFFFH  CRC Register CRC Register  next byte of the message  CRC Register 0  n Shift CRC Register 1 bit to the right Carry flag is 1 CRC Register  A001H  CRC Register n + 1 ...
  • Page 97 7. MODBUS  Example of a CRC calculation in the ‘C’ language This routine assumes that the data types ‘uint16’ and ‘uint8’ exists. Theses are unsigned 16-bit integer (usually an ‘unsigned short int’ for most compiler types) and unsigned 8-bit integer (unsigned char). ‘z_p’ is a pointer to a Modbus message, and ‘z_messaage_length’...

  • Page 98: Register Read And Write

    7. MODBUS 7.2 Register Read and Write 7.2.1 Read holding registers [03H] The query message specifies the starting register address and quantity of registers to be read. The contents of the holding registers are entered in the response message as data, divided into two parts: the high-order 8-bit and the low-order 8-bit, arranged in the order of the register numbers.

  • Page 99: Preset Single Register [06H]

    7. MODBUS 7.2.2 Preset single register [06H] The query message specifies data to be written into the designated holding register. The write data is arranged in the query message with high-order 8-bit first and low-order 8-bit next. Only R/W holding registers can be specified.

  • Page 100: Diagnostics (Loopback Test) [08H]

    7. MODBUS 7.2.3 Diagnostics (Loopback test) [08H] The master’s query message will be returned as the response message from the slave. This function checks the communication system between the master and slave. Example: Loopback test for slave address 1 Query message Slave address Function code Test code...

  • Page 101: Preset Multiple Registers [10H]

    7. MODBUS 7.2.4 Preset multiple registers [10H] The query message specifies the starting register address and quantity of registers to be written. The write data is arranged in the query message with high-order 8-bit first and low-order 8-bit next. Only R/W holding registers can be specified.

  • Page 102: Data Processing Precautions

    7. MODBUS 7.3 Data Processing Precautions  The numeric range of data used in Modbus protocol is 0000H to FFFFH. Only the set value within the setting range is effective. FFFFH represents 1.  The Modbus protocol does not recognize data with decimal points during communication. Example1: When Heater break alarm (HBA) set value is 20.0 A, 20.0 is processed as 200, 200 = 00C8H...

  • Page 103: How To Use Memory Area Data

    7. MODBUS 7.4 How to Use Memory Area Data Memory area function can store up to 8 individual sets of SVs and parameters. One of the areas is used for control, and the currently selected area is Control area. Memory area data can be used to check and change settings that belong to memory areas other than the Control area.
  • Page 104 7. MODBUS [Example 1] When data on the Event 1 set value in Memory area 2 of CH1 is read 1. The Memory area number, “2” is written to the CH1 Setting memory area number (0500H). Data in Memory area 2 is called up to the CH1 register addresses. CH1 register addresses Setting memory area number 0500H...
  • Page 105 7. MODBUS  Control area transfer Any memory area used for control is specified by the Memory area transfer (006EH to 0071H). The area (0076H to 00C5H) now used for control is called Control area. The Memory area number (Control area) can be changed at either RUN or STOP. Register address Memory area transfer 006EH...
  • Page 106 7. MODBUS [Example] When performing control by calling up data in Memory area 3 of CH1 1. The Memory area number, “3” is written to the Memory area transfer (006EH). Data in Memory area 3 is called up to the CH1 register addresses. CH1 register addresses Memory area transfer 006EH...

  • Page 107: How To Use Data Mapping

    7. MODBUS 7.5 How to Use Data Mapping When this communication method is used, 16 types of data (mapping data) can be specified as desired for the Z-TIO and Z-DIO modules, and read/write can be performed continuously. Z-TIO module Z-DIO module Register address to specify mapping data 1000H to 100FH 1000H to 100FH...

  • Page 108: Communication Data List

    7. MODBUS 7.6 Communication Data List 7.6.1 Reference to communication data list (4) (5) Resister address Chan- Factory Attri- Struc- Name Data range bute ture set value  Measured value (PV) 0000 Input scale low to Input scale high 0001 Varies with the setting of the decimal point position.

  • Page 109: Communication Data Of Z-Tio Module

    7. MODBUS 7.6.2 Communication data of Z-TIO module Register address Attri- Chan- Struc- Factory Name Data range bute ture set value  Measured value (PV) 0000 Input scale low to Input scale high 0001 Varies with the setting of the decimal point position. 0002 0003 ...
  • Page 110 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value  Burnout state monitor 0021 0: OFF 0022 1: ON 0023 0024  Event 1 state monitor 0025 0: OFF 0026 1: ON 0027...
  • Page 111 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value      Unused 0045 ･ ･ ･ ･ ･ ･ 0060 PID/AT transfer 0061 0: PID control 0062 1: Autotuning (AT) 0063...
  • Page 112 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Proportional band 0092 TC/RTD: TC/RTD inputs: [heat-side] ★  0 to Input span (Unit: C [F]) 0093 30 (30.0) 0094 V/I: 30.0 Varies with the setting of the decimal point position.
  • Page 113 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 100.0 to +100.0 % Manual reset ★ 00B2 00B3 If the Integral function is valid, set to RO (Only 00B4 reading data is possible).
  • Page 114 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Input span to +Input span RS bias * 00E2 0 (0.0) 00E3 Varies with the setting of the decimal point position. 00E4 00E5 RS digital filter *...
  • Page 115 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value EDS mode 010A 0: No function (for disturbance 1) 010B 1: EDS function mode 010C 2: Learning mode 010D 3: Tuning mode EDS mode 010E EDS function: External disturbance suppression...
  • Page 116 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Startup tuning (ST) 0146 0: ST unused 0147 1: Execute once * 0148 2: Execute always 0149 * When the Startup tuning is finished, the setting will automatically returns to “0: ST unused.”...
  • Page 117 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 017E Decimal point position 0: No decimal place Based on 017F 1: One decimal place model code 0180 2: Two decimal places 0181 If input range 3: Three decimal places...
  • Page 118 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 01A2 0: None Based on Event 1 type 01A3 1: Deviation high (Using SV monitor value) model code 01A4 2: Deviation low (Using SV monitor value) 01A5 3: Deviation high/low (Using SV monitor value) When not...
  • Page 119 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Event 2 type 01BE 0: None Based on 01BF 1: Deviation high (Using SV monitor value) model code 01C0 2: Deviation low (Using SV monitor value) 01C1 3: Deviation high/low (Using SV monitor value) When not...
  • Page 120 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Event 3 type 01DA 0: None Based on 01DB 1: Deviation high (Using SV monitor value) model code 2: Deviation low (Using SV monitor value) 01DC 3: Deviation high/low (Using SV monitor value) 01DD...
  • Page 121 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 01F6 0: None Event 4 type Based on 1: Deviation high (Using SV monitor value) 01F7 model code 2: Deviation low (Using SV monitor value) 01F8 3: Deviation high/low (Using SV monitor value) 01F9...
  • Page 122 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 0212 0 to 9999 CTL-6-P-N: CT ratio 0213 0214 CTL-12-S56- 0215 10L-N: 1000 CT assignment 0216 0: None 3: OUT3 CH1: 1 0217 1: OUT1...
  • Page 123 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Undershoot suppression 023E Water cooling: 0.000 to 1.000 factor  0.100 Unused Unused Unused Air cooling: 0240 0.250 Unused Unused Unused Cooling gain linear type:...
  • Page 124 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Output change rate limiter 0276 0.0 to 100.0 % of manipulated output /seconds (down) [cool-side]  Unused Unused Unused (0.0: OFF) 0278 Becomes invalid when in Position proportioning PID Unused...
  • Page 125 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value TC/RTD: Proportional band limiter 02AE TC/RTD inputs: (high) [heat-side]  0 to Input span (Unit: C [F]) Input span 02AF 02B0 Varies with the setting of the decimal point position.
  • Page 126 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Control motor time  02EA 5 to 1000 seconds Unused Unused Unused 02EC Unused Unused Unused Integrated output limiter 02EE 0.0 to 200.0 % of control motor time 150.0 ...
  • Page 127 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Setting change rate limiter 031E 1 to 3600 seconds unit time 031F 0320 0321 Soak time unit 0322 0: 0 to 5999 minutes 0323 [0 hours 00 minutes to 0324...
  • Page 128 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value 1 1 Address of interacting 034E (Interact with its own module address) modules 034F 0 to 99 0350 (Interact with the addresses of other modules) 0351 Channel selection of 0352...

  • Page 129: Communication Data Of Z-Dio Module

    7. MODBUS 7.6.3 Communication data of Z-DIO module Register address Attri- Chan- Struc- Factory Name Data range bute ture set value   0000 Bit data Digital input (DI) state Bit 0: DI1 Bit 1: DI2 Bit 2: DI3 Bit 3: DI4 Bit 4: DI5 Bit 5: DI6 Bit 6: DI7...
  • Page 130 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value DO output distribution 0048 0: DO output selection 0049 1: Distribution output 004A 004B 004C 004D 004E 004F 100.0 to 100.0 % DO output distribution 0050 bias...
  • Page 131 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value  DO output assignment 1 00A8 0 to 13 Based on [DO1 to DO4] (Refer to page 8-158) model code When not specifying: 0 ...

  • Page 132: Memory Area Data Address (Z-Tio)

    7. MODBUS 7.6.4 Memory area data address (Z-TIO) The register addresses, 0500H to 0553H are used for checking and changing each set value belonging to the memory area. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Setting memory area 0500 1280...
  • Page 133 7. MODBUS Continued from the previous page. Register address Attri- Chan- Struc- Factory Name Data range bute ture set value Proportional band 0530 1328 TC/RTD inputs: TC/RTD: 1 (0.1) to Input span (Unit: C [F]) [cool-side] 0531 1329 30 (30.0) 0532 1330 Varies with the setting of the decimal point position.

  • Page 134: Data Mapping Address (Z-Tio, Z-Dio)

    7. MODBUS 7.6.5 Data mapping address (Z-TIO, Z-DIO)  Register address for data mapping Register address Number Attri- Factory Name of data Data range bute set value items 1 Register address setting 1000 4096 Decimal: 1 to 4095 (1: No mapping) Read/write address : 1500H 1...
  • Page 135 7. MODBUS  Register address for data read/writes Number Register address Attri- Factory Name Data range of data bute set value items Data specified by register address 1500 5376 setting 1 (1000H) Data specified by register address 1501 5377 setting 2 (1001H) Data specified by register address 1502 5378...
  • Page 136 MEMO 7-46 IMS01T04-E6...

  • Page 137: Communication Data Description

    COMMUNICATION DATA DESCRIPTION 8.1 Reference to Communication Data Contents ........8-2 8.2 Communication Data of Z-TIO Module ..........8-3 8.2.1 Normal setting data items ................. 8-3 8.2.2 Engineering setting data items ..............8-61 8.3 Communication Data of Z-DIO Module ........8-143 8.3.1 Normal setting data items ..............

  • Page 138: Reference To Communication Data Contents

    8. COMMUNICATION DATA DESCRIPTION Reference to Communication Data Contents RKC communication Set value (SV) identifier [Local set value (SV)] Modbus ch1: 008EH (142) ch3: 0090H (144) register address ch2: 008FH (143) ch4: 0091H (145) Set value (SV) is desired value of the control. Attribute: Digits: 7 digits...

  • Page 139: Communication Data Of Z-Tio Module

    8. COMMUNICATION DATA DESCRIPTION 8.2 Communication Data of Z-TIO Module 8.2.1 Normal setting data items Model code RKC communication identifier  Modbus register address This value is the type identifier code of the Z-TIO module. Attribute: Digits: 32 digits Number of data: 1 (Data of each module) Data range: Depends on model code...
  • Page 140 8. COMMUNICATION DATA DESCRIPTION Comprehensive event state RKC communication identifier Modbus ch1: 0004H (4) ch3: 0006H (6) register address ch2: 0005H (5) ch4: 0007H (7) Each event state such as Event 1 to Event 4, Heater break alarm, Temperature rise completion or Burnout is expressed in bit data items.
  • Page 141 8. COMMUNICATION DATA DESCRIPTION Operation mode state monitor RKC communication identifier Modbus ch1: 0008H (8) ch3: 000AH (10) register address ch2: 0009H (9) ch4: 000BH (11) Each operation mode state of the Z-TIO module is expressed in bit data items. Attribute: Digits: 7 digits...
  • Page 142 0 to 63 (bit data) The error state is assigned as a bit image in binary numbers. However, send data from the SRZ be changed to decimal ASCII code from the bit image in binary numbers for RKC communication. Bit image: 0000000000000000...
  • Page 143 8. COMMUNICATION DATA DESCRIPTION Manipulated output value (MV) monitor RKC communication identifier [cool-side] Modbus ch1: 0011H (17) ch3: 0013H (19) register address ch2: Unused ch4: Unused Cool-side output value of Heat/Cool PID control. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel) 5.0 to 105.0 % Data range:...
  • Page 144 8. COMMUNICATION DATA DESCRIPTION Remote setting (RS) input value monitor RKC communication identifier Modbus ch1: 001DH (29) ch3: 001FH (31) register address ch2: 001EH (30) ch4: 0020H (32) Input value used in Remote mode. Monitors the SV selected by the remote SV selection function. Attribute: Digits: 7 digits...
  • Page 145 8. COMMUNICATION DATA DESCRIPTION Event 1 state monitor RKC communication identifier Modbus ch1: 0025H (37) ch3: 0027H (39) register address ch2: 0026H (38) ch4: 0028H (40) Event 2 state monitor RKC communication identifier Modbus ch1: 0029H (41) ch3: 002BH (43) register address ch2: 002AH (42) ch4: 002CH (44) Event 3 state monitor...
  • Page 146 8. COMMUNICATION DATA DESCRIPTION Output state monitor RKC communication identifier Modbus 0039H (57) register address ON/OFF state of output (OUT1 to OUT4) is expressed as a bit image in decimal number. Attribute: Digits: 7 digits Number of data: 1 (Data of each module) Data range: RKC communication: ASCII code data The output state is assigned as a digit image in ASCII code data of 7 digits.
  • Page 147 8. COMMUNICATION DATA DESCRIPTION Memory area soak time monitor RKC communication identifier Modbus ch1: 003AH (58) ch3: 003CH (60) register address ch2: 003BH (59) ch4: 003DH (61) Monitors the time elapsed for memory area operation (soak time) when ramp/soak control by using Multi-memory area is performed.
  • Page 148 8. COMMUNICATION DATA DESCRIPTION Integrated operating time monitor RKC communication identifier Modbus 003EH (62) register address This value is an integrated operating time of the Z-TIO module. Attribute: Digits: 7 digits Number of data: 1 (Data of each module) Data range: 0 to 19999 hours ...
  • Page 149 8. COMMUNICATION DATA DESCRIPTION Logic output monitor 1 RKC communication identifier Logic output monitor 2 RKC communication identifier Logic output monitor Modbus 0044H (68) register address Each logic output state of the Z-TIO module is expressed in bit data items. Attribute: Digits: 7 digits...
  • Page 150 8. COMMUNICATION DATA DESCRIPTION PID/AT transfer RKC communication identifier Modbus ch1: 0061H (97) ch3: 0063H (99) register address ch2: 0062H (98) ch4: 0064H (100) Activation or deactivation of the Autotuning (AT) function is selected. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel) Data range: 0: PID control...
  • Page 151 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Requirements for Autotuning (AT) cancellation If the Autotuning (AT) is canceled according to any of the following conditions, the controller immediately changes to PID control. The PID values will be the same as before Autotuning (AT) was activated. When the Operation is When the RUN/STOP mode is changed to the STOP mode.
  • Page 152 8. COMMUNICATION DATA DESCRIPTION Auto/Manual transfer RKC communication identifier Modbus ch1: 0065H (101) ch3: 0067H (103) register address ch2: 0066H (102) ch4: 0068H (104) Use to transfer the Auto mode or Manual mode. Auto mode: Automatic control is performed. Manual mode: The manipulated output value can be manually changed. Attribute: Digits: 1 digit...
  • Page 153 8. COMMUNICATION DATA DESCRIPTION Remote/Local transfer RKC communication identifier Modbus ch1: 0069H (105) ch3: 006BH (107) register address ch2: 006AH (106) ch4: 006CH (108) Use to transfer the Remote mode or Local mode. Local mode: Control is performed at the local set value (SV). Remote mode: Control is performed with a remote setting (RS) input value.
  • Page 154 If the set values are stored in divided memory areas for each work process, it is possible to collectively call up all of these set values necessary for the process simply by changing the corresponding memory area numbers. * On the SRZ, up to eight areas can be stored per channel. Memory area 1 Memory area 2...
  • Page 155 8. COMMUNICATION DATA DESCRIPTION Interlock release RKC communication identifier ch1: 0072H (114) ch3: 0074H (116) Modbus ch2: 0073H (115) ch4: 0075H (117) register address The event state is turned OFF when the event ON state is continued by the event interlock function. Attribute: Digits: 1 digit...
  • Page 156 8. COMMUNICATION DATA DESCRIPTION Event 1 set value (EV1) RKC communication identifier Modbus ch1: 0076H (118) ch3: 0078H (120) register address ch2: 0077H (119) ch4: 0079H (121) Event 2 set value (EV2) RKC communication identifier Modbus ch1: 007AH (122) ch3: 007CH (124) register address ch2: 007BH (123) ch4: 007DH (125) Event 3 set value (EV3)
  • Page 157 8. COMMUNICATION DATA DESCRIPTION Control loop break alarm (LBA) time RKC communication identifier Modbus ch1: 0086H (134) ch3: 0088H (136) register address ch2: 0087H (135) ch4: 0089H (137) The LBA time sets the time required for the LBA function to determine there is a loop failure. When the LBA is output (under alarm status), the LBA function still monitors the Measured value (PV) variation at an interval of the LBA time.
  • Page 158 8. COMMUNICATION DATA DESCRIPTION LBA deadband RKC communication identifier Modbus ch1: 008AH (138) ch3: 008CH (140) register address ch2: 008BH (139) ch4: 008DH (141) Control loop break alarm (LBA) deadband gives a neutral zone to prevent the Control loop break alarm (LBA) from malfunctioning caused by disturbance.
  • Page 159 8. COMMUNICATION DATA DESCRIPTION Set value (SV) RKC communication identifier [Local set value (SV)] Modbus ch1: 008EH (142) ch3: 0090H (144) register address ch2: 008FH (143) ch4: 0091H (145) Set value (SV) is desired value of the control. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel)
  • Page 160 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Function: In Heat/Cool PID control, only one module enables heat and cool control. For example, this is effective when cool control is required in extruder cylinder temperature control. Manipulated output (MV) Proportional band Proportional band [heat-side]...
  • Page 161 8. COMMUNICATION DATA DESCRIPTION Derivative time [heat-side] RKC communication identifier Modbus ch1: 009AH (154) ch3: 009CH (156) register address ch2: 009BH (155) ch4: 009DH (157) Derivative time [cool-side] RKC communication identifier Modbus ch1: 00AAH (170) ch3: 00ACH (172) register address ch2: Unused ch4: Unused Derivative action is to prevent rippling and make control stable by monitoring output change.
  • Page 162 8. COMMUNICATION DATA DESCRIPTION Control response parameter RKC communication identifier Modbus ch1: 009EH (158) ch3: 00A0H (160) register address ch2: 009FH (159) ch4: 00A1H (161) The control response for the Set value (SV) change can be selected among Slow, Medium, and Fast. Attribute: Digits: 1 digit...
  • Page 163 8. COMMUNICATION DATA DESCRIPTION Overlap/Deadband RKC communication identifier Modbus ch1: 00AEH (174) ch3: 00B0H (176) register address ch2: 00AFH (175) ch4: 00B1H (177) This is the overlapped range of proportional bands (on the heat and cool sides) or the deadband range when Heat/Cool PID control is performed.
  • Page 164 8. COMMUNICATION DATA DESCRIPTION Manual reset RKC communication identifier Modbus ch1: 00B2H (178) ch3: 00B4H (180) register address ch2: 00B3H (179) ch4: 00B5H (181) In order to eliminate the offset occurring in Proportional (P) control, the manipulated output value is manually corrected.
  • Page 165 8. COMMUNICATION DATA DESCRIPTION Setting change rate limiter (up) RKC communication identifier Modbus ch1: 00B6H (182) ch3: 00B8H (184) register address ch2: 00B7H (183) ch4: 00B9H (185) Setting change rate limiter (down) RKC communication identifier Modbus ch1: 00BAH (186) ch3: 00BCH (188) register address ch2: 00BBH (187) ch4: 00BDH (189) This function is to allow the Set value (SV) to be automatically changed at specific rates when a new Set...
  • Page 166 8. COMMUNICATION DATA DESCRIPTION Area soak time RKC communication identifier Modbus ch1: 00BEH (190) ch3: 00C0H (192) register address ch2: 00BFH (191) ch4: 00C1H (193) This is the time required until transferred to the Link area number when performing Ramp/Soak control. Attribute: Digits: 7 digits...
  • Page 167 8. COMMUNICATION DATA DESCRIPTION Link area number RKC communication identifie Modbus ch1: 00C2H (194) ch3: 00C4H (196) register address ch2: 00C3H (195) ch4: 00C5H (197) Memory area numbers for linking the corresponding memory areas are set when Ramp/Soak control is performed.
  • Page 168 8. COMMUNICATION DATA DESCRIPTION Heater break alarm (HBA) set value RKC communication identifier Modbus ch1: 00C6H (198) ch3: 00C8H (200) register address ch2: 00C7H (199) ch4: 00C9H (201) HBA is to set the set values for the Heater break alarm (HBA) function. The HBA function detects a fault in the heating circuit by monitoring the current flowing through the load by a dedicated Current transformer (CT).
  • Page 169 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. < Heater break alarm (HBA) type B > Heater Break Alarm (HBA) type B can be used with continuous control output (Voltage/Current continuous output). The HBA function assumes that the heater current value is proportional* to the control output value of the controller, otherwise viewed as the Manipulated variable (MV), and compare it with the CT input value to detect a fault in the heating or cooling circuit.
  • Page 170 8. COMMUNICATION DATA DESCRIPTION Heater break determination point RKC communication identifier Modbus ch1: 00CAH (202) ch3: 00CCH (204) register address ch2: 00CBH (203) ch4: 00CDH (205) Set the Heater break determination point for the Heater break alarm (HBA) type B. Attribute: Digits: 7 digits...
  • Page 171 8. COMMUNICATION DATA DESCRIPTION PV bias RKC communication identifier Modbus ch1: 00D2H (210) ch3: 00D4H (212) register address ch2: 00D3H (211) ch4: 00D5H (213) PV bias adds bias to the Measured value (PV). The PV bias is used to compensate the individual variations of the sensors or correct the difference between the Measured value (PV) of other instruments.
  • Page 172 8. COMMUNICATION DATA DESCRIPTION PV low input cut-off RKC communication identifier Modbus ch1: 00DEH (222) ch3: 00E0H (224) register address ch2: 00DFH (223) ch4: 00E1H (225) PV low input cut-off is used with Square root extraction function. The measured value less than the PV low input cut-off is ignored to prevent control disturbance caused by input variation at low measured value range.
  • Page 173 8. COMMUNICATION DATA DESCRIPTION RS digital filter RKC communication identifier Modbus ch1: 00E6H (230) ch3: 00E8H (232) register address ch2: 00E7H (231) ch4: 00E9H (233) This item is the time of the first-order lag filter to eliminate noise against the Remote setting input. Attribute: Digits: 7 digits...
  • Page 174 The manipulated output values of the master channel and slave channels are each output within the limit of the output limiter. The output distribution function only functions within modules that are connected together (SRZ unit). Continued on the next page.
  • Page 175 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Operation flow In the slave channel, set the module address number of the module that includes the 1. Set the Output channel to be specified as the master. distribution master channel module Output distribution master channel module address (P.
  • Page 176 8. COMMUNICATION DATA DESCRIPTION Output distribution bias RKC communication identifier Modbus ch1: 00F2H (242) ch3: 00F4H (244) register address ch2: 00F3H (243) ch4: 00F5H (245) The bias which is added to the manipulated output value of the master channel that is distributed to slave channels and output.
  • Page 177 8. COMMUNICATION DATA DESCRIPTION Minimum ON/OFF time of proportioning RKC communication identifier cycle Modbus ch1: 00FEH (254) ch3: 0100H (256) register address ch2: 00FFH (255) ch4: 0101H (257) This is the minimum ON/OFF time of the time proportioning cycle. Attribute: Digits: 7 digits Number of data:...
  • Page 178 8. COMMUNICATION DATA DESCRIPTION Manual manipulated output value RKC communication identifier Modbus ch1: 0102H (258) ch3: 0104H (260) register address ch2: 0103H (259) ch4: 0105H (261) Use to set the output value in the Manual control. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel) Data range:...
  • Page 179 8. COMMUNICATION DATA DESCRIPTION Area soak time stop function RKC communication identifier Modbus ch1: 0106H (262) ch3: 0108H (264) register address ch2: 0107H (263) ch4: 0109H (265) Select the event for which the Area soak time is to be stopped when an event state occurs. Attribute: Digits: 1 digit...
  • Page 180 8. COMMUNICATION DATA DESCRIPTION EDS mode (for disturbance 1) RKC communication identifier Modbus ch1: 010AH (266) ch3: 010CH (268) register address ch2: 010BH (267) ch4: 010DH (269) EDS mode (for disturbance 2) RKC communication identifier Modbus ch1: 010EH (270) ch3: 0110H (272) register address ch2: 010FH (271) ch4: 0111H (273) Select the mode of the EDS function (External disturbance suppression function).
  • Page 181 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. For the EDS action time, set the approximate time for a single disturbance response to converge. This time will be automatically computed when tuning is performed, and will be the action time of the EDS control.
  • Page 182 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Requirements for normal end and suspending [Normal end]  When the EDS action time elapses after EDS control starts following EDS start signal input.  When a new EDS start signal is input (in this case, EDS control is re-started within the same sampling period or after a lapse of the EDS action wait time).
  • Page 183 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Example: EDS action selection when the number of learning times is set at 3 (When there is one disturbance pattern) EDS start signal EDS start signal EDS start signal EDS start signal EDS start signal EDS start signal EDS mode...
  • Page 184 8. COMMUNICATION DATA DESCRIPTION EDS value 1 (for disturbance 1) RKC communication identifier Modbus ch1: 0112H (274) ch3: 0114H (276) register address ch2: 0113H (275) ch4: 0115H (277) EDS value 1 (for disturbance 2) RKC communication identifier Modbus ch1: 0116H (278) ch3: 0118H (280) register address ch2: 0117H (279) ch4: 0119H (281) This setting is used to suppress temperature changes in the Measured value (PV) due to external disturbances.
  • Page 185 8. COMMUNICATION DATA DESCRIPTION EDS transfer time (for disturbance 1) RKC communication identifier Modbus ch1: 0122H (290) ch3: 0124H (292) register address ch2: 0123H (291) ch4: 0125H (293) EDS transfer time (for disturbance 2) RKC communication identifier Modbus ch1: 0126H (294) ch3: 0128H (296) register address ch2: 0127H (295) ch4: 0129H (297) This sets the time for transfer between EDS value 1 and EDS value 2.
  • Page 186 8. COMMUNICATION DATA DESCRIPTION EDS action wait time (for disturbance 1) RKC communication identifier Modbus ch1: 0132H (306) ch3: 0134H (308) register address ch2: 0133H (307) ch4: 0135H (309) EDS action wait time (for disturbance 2) RKC communication identifier Modbus ch1: 0136H (310) ch3: 0138H (312) register address ch2: 0137H (311) ch4: 0139H (313)
  • Page 187 8. COMMUNICATION DATA DESCRIPTION EDS start signal RKC communication identifier Modbus ch1: 013EH (318) ch3: 0140H (320) register address ch2: 013FH (319) ch4: 0141H (321) This is the input signal to start or end the mode (tuning, learning, and EDS function) of EDS mode selection.
  • Page 188 8. COMMUNICATION DATA DESCRIPTION Operation mode RKC communication identifier Modbus ch1: 0142H (322) ch3: 0144H (324) register address ch2: 0143H (323) ch4: 0145H (325) This mode is used to select “unused,” “monitor,” “monitor  event function,” or “control” for each channel. Attribute: Digits: 1 digit...
  • Page 189 8. COMMUNICATION DATA DESCRIPTION Startup tuning (ST) RKC communication identifier Modbus ch1: 0146H (326) ch3: 0148H (328) register address ch2: 0147H (327) ch4: 0149H (329) Use to set the number of execution times of Startup tuning (ST). Attribute: Digits: 7 digits Number of data: 1 (Data of each channel) Data range:...
  • Page 190 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Caution for using the Startup tuning (ST)  For Startup tuning (ST) at power ON or transfer from STOP to RUN, always set the heater power to ON simultaneously with the start of tuning or before the start of tuning. ...
  • Page 191 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Procedure for using the Startup tuning (ST) The setting procedure when executing Startup tuning (ST) only one time at power ON is shown below as a setting example. In “ST start condition” (P. 8-120) in the engineering setting data, set “At power ON (either 0 1.
  • Page 192 8. COMMUNICATION DATA DESCRIPTION Automatic temperature rise learning RKC communication identifier Modbus ch1: 014AH (330) ch3: 014CH (332) register address ch2: 014BH (331) ch4: 014DH (333) Use to select Use/Unuse of the Automatic temperature rise learning function. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel) Data range:...
  • Page 193 The automatic temperature rise function can be used for a group of channels within connected modules (SRZ unit), or within a single module. Example: Multi-point temperature control using two Z-TIO modules (2-channel type)  When Z-TIO module 1 (CH1, CH2) and Z-TIO module 2 (CH1, CH2) are started without using the automatic temperature rise function (Automatic temperature rise group: “0”...
  • Page 194 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Requirements for automatic temperature rise start When all the channels in a group satisfy the following conditions, automatic temperature rise is executed. RUN/STOP transfer Operation PID/AT transfer PID control state Auto/Manual transfer Auto mode Operation mode (P.
  • Page 195 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Procedure for using the automatic temperature rise function For each Z-TIO module channel, set an automatic temperature rise group number in 1. Set the Automatic “Automatic temperature rise group” (P. 8-121) in the engineering setting data. temperature rise group Automatic temperature rise group: 0 to 16 (0: Automatic temperature rise function OFF) When the group number is set to “0,”...
  • Page 196 8. COMMUNICATION DATA DESCRIPTION Communication switch for logic RKC communication identifier Modbus 014EH (334) register address ON/OFF signal that applies the signal of event information occurring in the higher system as input to a logic computation result (logic output). Attribute: Digits: 7 digits Number of data:...

  • Page 197: Engineering Setting Data Items

    8. COMMUNICATION DATA DESCRIPTION 8.2.2 Engineering setting data items WARNING The Engineering setting data should be set according to the application before setting any parameter related to operation. Once the Engineering setting data are set correctly, those data are not necessary to be changed for the same application under normal conditions.
  • Page 198 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Data type Items Default value Engineering Burnout direction 0: Upscale Event 1 channel setting 1 (Channel 1) setting data Event 2 channel setting Event 3 channel setting Event 4 channel setting Event 1 hold action 0 (OFF) Event 2 hold action...
  • Page 199 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Data type Items Default value Engineering Integral time limiter (low) [cool-side] 1 second setting (No decimal place): 0 seconds setting data 0.1 seconds setting (One decimal place): 0.0 seconds Derivative time limiter (high) [cool-side] 1 second setting (No decimal place): 3600 seconds 0.1 seconds setting (One decimal place): 1999.9 seconds...
  • Page 200 8. COMMUNICATION DATA DESCRIPTION  When an Event type parameter is changed When an event type setting is changed, the corresponding event settings will be initialized. Reset these settings to the values that you wish to use. Event 1 type (RKC communication identifier: XA, Modbus address: 01A2H to 01A5H) Event 2 type (RKC communication identifier: XB, Modbus address: 01BEH to 01C1H) Event 3 type (RKC communication identifier: XC, Modbus address: 01DAH to 01DDH) Event 4 type (RKC communication identifier: XD, Modbus address: 01F6H to 01F9H)
  • Page 201 8. COMMUNICATION DATA DESCRIPTION  When the Control action parameter is changed When the control action setting (RKC communication identifier: XE, Modbus address: 0232H to 0235H) is changed, the settings in the following table will be changed. Reset the settings to the values that you wish to use.
  • Page 202 8. COMMUNICATION DATA DESCRIPTION  When the Decimal point position parameter is changed When the input decimal point position is changed (RKC communication identifier: XU, Modbus address: 017EH to 0181H), the decimal point positions of the settings in the following table are automatically converted.
  • Page 203 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Items processed by limiter processing: Data type Items Engineering Event 1 differential gap AT bias setting data Event 2 differential gap Proportional band limiter (high) [heat-side] Event 3 differential gap Proportional band limiter (low) [heat-side] Event 4 differential gap Proportional band limiter (high) [cool-side] Start determination point...
  • Page 204 8. COMMUNICATION DATA DESCRIPTION  When the EDS transfer time decimal point position parameter is changed When the EDS transfer time decimal point position is changed (RKC communication identifier: NS, Modbus address: 0312H to 0315H), the decimal point positions of the settings in the following table are automatically converted.
  • Page 205 8. COMMUNICATION DATA DESCRIPTION  Data explanation Input type RKC communication identifier Modbus ch1: 0176H (374) ch3: 0178H (376) register address ch2: 0177H (375) ch4: 0179H (377) Input type number is a number to indicate an input type. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel)
  • Page 206 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Hardware selection The voltage (low) or (high) input group is selected by the Input select switch at the side of the module. Turn the measured value input switch by a small screwdriver. (Left side) (Right side) Input select...
  • Page 207 8. COMMUNICATION DATA DESCRIPTION RKC communication Decimal point position identifier Modbus ch1: 017EH (382) ch3: 0180H (384) register address ch2: 017FH (383) ch4: 0181H (385) Use to select the Decimal point position of the input range. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel) Data range:...
  • Page 208 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Function: The input range can be changed for temperature input. For Voltage (V)/Current (I) input, display scaling can be made in the range of 19999 to 19999. Example [temperature input]: When the range of 200.0 to +1372.0 C for thermocouple Type K is changed to 0.0 to 400.0 C Minimum value of the Maximum value of the...
  • Page 209 8. COMMUNICATION DATA DESCRIPTION Input error determination point (high) RKC communication identifier Modbus ch1: 018AH (394) ch3: 018CH (396) register address ch2: 018BH (395) ch4: 018DH (397) Input error determination point (low) RKC communication identifier Modbus ch1: 018EH (398) ch3: 0190H (400) register address ch2: 018FH (399) ch4: 0191H (401) Use to set Input error determination point (high/low).
  • Page 210 8. COMMUNICATION DATA DESCRIPTION Burnout direction RKC communication identifier Modbus ch1: 0192H (402) ch3: 0194H (404) register address ch2: 0193H (403) ch4: 0195H (405) Use to select Burnout direction in input break. When input break is detected by the module, the measured value go either Upscale or Downscale according to the Burnout direction setting.
  • Page 211 8. COMMUNICATION DATA DESCRIPTION Output assignment RKC communication identifier (Logic output selection function) Modbus ch1: 019AH (410) ch3: 019CH (412) register address ch2: 019BH (411) ch4: 019DH (413) This is used to assign the output function (control output, logic output result and FAIL output) for the output 1 (OUT1) to output 4 (OUT4).
  • Page 212 8. COMMUNICATION DATA DESCRIPTION Energized/De-energized RKC communication identifier (Logic output selection function) Modbus ch1: 019EH (414) ch3: 01A0H (416) register address ch2: 019FH (415) ch4: 01A1H (417) Energized/De-energized can be selected for any of outputs 1 (OUT1) to 4 (OUT4) that have an output function (logic output result) assigned.
  • Page 213 8. COMMUNICATION DATA DESCRIPTION RKC communication Event 1 type identifier Modbus ch1: 01A2H (418) ch3: 01A4H (420) register address ch2: 01A3H (419) ch4: 01A5H (421) RKC communication Event 2 type identifier Modbus ch1: 01BEH (446) ch3: 01C0H (448) register address ch2: 01BFH (447) ch4: 01C1H (449) RKC communication Event 3 type...
  • Page 214 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Related parameters: Comprehensive event state (P. 8-4), Event state monitor (P. 8-9), Event set value (P. 8-20), Output assignment (P. 8-75), Event interlock (P. 8-83), Event differential gap (P. 8-84), Event delay timer (P. 8-85) Funtion: ...
  • Page 215 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Temperature rise completion function During the sampling of temperature input, when the Measured value (PV) comes within the temperature rise completion range, the temperature rise completion will occur.  Temperature Set value (SV) rise completion ...
  • Page 216 8. COMMUNICATION DATA DESCRIPTION Event 1 channel setting RKC communication identifier Modbus ch1: 01A6H (422) ch3: 01A8H (424) register address ch2: 01A7H (423) ch4: 01A9H (425) Event 2 channel setting RKC communication identifier Modbus ch1: 01C2H (450) ch3: 01C4H (452) register address ch2: 01C3H (451) ch4: 01C5H (453) Event 3 channel setting...
  • Page 217 8. COMMUNICATION DATA DESCRIPTION Event 1 hold action RKC communication identifier Modbus ch1: 01AAH (426) ch3: 01ACH (428) register address ch2: 01ABH (427) ch4: 01ADH (429) Event 2 hold action RKC communication identifier Modbus ch1: 01C6H (454) ch3: 01C8H (456) register address ch2: 01C7H (455) ch4: 01C9H (457) Event 3 hold action...
  • Page 218 8. COMMUNICATION DATA DESCRIPTION Function:  Hold action When hold action is ON, the Event action is suppressed at start-up or STOP to RUN until the Measured value (PV) has entered the non-event range. [ With hold action ] [ Without hold action ] Measured value (PV) Measured value (PV) Measured value (PV)
  • Page 219 8. COMMUNICATION DATA DESCRIPTION Event 1 interlock RKC communication identifier Modbus ch1: 01AEH (430) ch3: 01B0H (432) register address ch2: 01AFH (431) ch4: 01B1H (433) Event 2 interlock RKC communication identifier Modbus ch1: 01CAH (458) ch3: 01CCH (460) register address ch2: 01CBH (459) ch4: 01CDH (461) Event 3 interlock RKC communication...
  • Page 220 8. COMMUNICATION DATA DESCRIPTION RKC communication Event 1 differential gap identifier Modbus ch1: 01B2H (434) ch3: 01B4H (436) register address ch2: 01B3H (435) ch4: 01B5H (437) RKC communication Event 2 differential gap identifier Modbus ch1: 01CEH (462) ch3: 01D0H (464) register address ch2: 01CFH (463) ch4: 01D1H (465) RKC communication...
  • Page 221 8. COMMUNICATION DATA DESCRIPTION RKC communication Event 1 delay timer identifier Modbus ch1: 01B6H (438) ch3: 01B8H (440) register address ch2: 01B7H (439) ch4: 01B9H (441) RKC communication Event 2 delay timer identifier Modbus ch1: 01D2H (466) ch3: 01D4H (468) register address ch2: 01D3H (467) ch4: 01D5H (469) RKC communication...
  • Page 222 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. The event delay timer is also activated for the following cases.  When set to the event state simultaneously with power turned on.  When set to the event state simultaneously with control changed to RUN (control start) from STOP (control stop).
  • Page 223 8. COMMUNICATION DATA DESCRIPTION RKC communication Force ON of Event 1 action identifier Modbus ch1: 01BAH (442) ch3: 01BCH (444) register address ch2: 01BBH (443) ch4: 01BDH (445) RKC communication Force ON of Event 2 action identifier Modbus ch1: 01D6H (470) ch3: 01D8H (472) register address ch2: 01D7H (471) ch4: 01D9H (473) RKC communication...
  • Page 224 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Example: When “0: Event output turned on at input error occurrence” is selected 0 to 400 C Input range: Input error determination point (high): 300 C Input error determination point (low): 50 C Differential gap (0.1 % of input span) Action area at input error...
  • Page 225 8. COMMUNICATION DATA DESCRIPTION CT ratio RKC communication identifier Modbus ch1: 0212H (530) ch3: 0214H (532) register address ch2: 0213H (531) ch4: 0215H (533) Use to set the number of turns (ratio) of the current transformer that is used with the Heater break alarm (HBA).
  • Page 226 8. COMMUNICATION DATA DESCRIPTION Heater break alarm (HBA) type RKC communication identifier Modbus ch1: 021AH (538) ch3: 021CH (540) register address ch2: 021BH (539) ch4: 021DH (541) Use to select the Heater break alarm (HBA) type. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel) Data range:...
  • Page 227 8. COMMUNICATION DATA DESCRIPTION Number of heater break alarm (HBA) RKC communication identifier delay times Modbus ch1: 021EH (542) ch3: 0220H (544) register address ch2: 021FH (543) ch4: 0221H (545) To prevent producing a false alarm, the alarm function waits to produce an alarm status until the measured CT input value is in an alarm range for the preset number of consecutive sampling cycles.
  • Page 228 8. COMMUNICATION DATA DESCRIPTION Hot/Cold start RKC communication identifier Modbus ch1: 0222H (546) ch3: 0224H (548) register address ch2: 0223H (547) ch4: 0225H (549) Use to select the start mode at power recovery. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel) Data range: 0: Hot start 1...
  • Page 229 8. COMMUNICATION DATA DESCRIPTION Start determination point RKC communication identifier Modbus ch1: 0226H (550) ch3: 0228H (552) register address ch2: 0227H (551) ch4: 0229H (553) Determination point always set to Hot start 1 when recovered from power failure. The Start determination point becomes the deviation setting from the Set value (SV).
  • Page 230 8. COMMUNICATION DATA DESCRIPTION SV tracking RKC communication identifier Modbus ch1: 022AH (554) ch3: 022CH (556) register address ch2: 022BH (555) ch4: 022DH (557) To select Use/Unuse of SV tracking. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel) Data range: 0: Unused 1: Used...
  • Page 231 8. COMMUNICATION DATA DESCRIPTION MV transfer function RKC communication identifier Modbus ch1: 022EH (558) ch3: 0230H (560) [Action taken when changed to Manual mode from Auto mode] register address ch2: 022FH (559) ch4: 0231H (561) The manipulated output value used for manual control is selected when the operation mode in changed to the Manual mode from the Automatic mode.
  • Page 232 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Function:  PID control (direct action) The Manipulated output value (MV) increases as the Measured value (PV) increases. This action is used generally for cool control.  PID control (reverse action) The Manipulated output value (MV) decreases as the Measured value (PV) increases.
  • Page 233 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Position proportioning PID control Position proportioning PID control converts the control output value of the controller into the corresponding signal to control a motor driven valve (control motor) and then performs temperature control of a controlled object by regulating fluid flow.
  • Page 234 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. The settings vary as shown below depending on whether or not there is Feedback resistance (FBR) input. Configure settings for Position proportional PID control in the order of the arrows (→). (×: Valid, : Invalid) With Without...
  • Page 235 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Brilliant II PID control PID control is a control method of achieving stabilized control result by setting P (Proportional band), I (Integral time) and D (Derivative time) constants, and is widely used. However even in this PID control if P, I and D constants are set so as to be in good “response to Set value (SV) setting,”...
  • Page 236 8. COMMUNICATION DATA DESCRIPTION Integral/Derivative time decimal point RKC communication identifier position Modbus ch1: 0236H (566) ch3: 0238H (568) register address ch2: 0237H (567) ch4: 0239H (569) Use to select a decimal point position of integral time and derivative time. Attribute: Digits: 1 digit...
  • Page 237 8. COMMUNICATION DATA DESCRIPTION Undershoot suppression factor RKC communication identifier Modbus ch1: 023EH (574) ch3: 0240H (576) register address ch2: Unused ch4: Unused This is a factor to restrict undershooting on the cool side. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel) Data range: 0.000 to 1.000...
  • Page 238 8. COMMUNICATION DATA DESCRIPTION ON/OFF action differential gap (upper) RKC communication identifier Modbus ch1: 0246H (582) ch3: 0248H (584) register address ch2: 0247H (583) ch4: 0249H (585) ON/OFF action differential gap (lower) RKC communication identifier Modbus ch1: 024AH (586) ch3: 024CH (588) register address ch2: 024BH (587) ch4: 024DH (589) ON/OFF action differential gap (upper): Use to set the ON/OFF control differential gap (upper).
  • Page 239 8. COMMUNICATION DATA DESCRIPTION Action (high) at input error RKC communication identifier Modbus ch1: 024EH (590) ch3: 0250H (592) register address ch2: 024FH (591) ch4: 0251H (593) Action (low) at input error RKC communication identifier Modbus ch1: 0252H (594) ch3: 0254H (596) register address ch2: 0253H (595) ch4: 0255H (597) Action (high) at input error:...
  • Page 240 8. COMMUNICATION DATA DESCRIPTION Manipulated output value at input error RKC communication identifier Modbus ch1: 0256H (598) ch3: 0258H (600) register address ch2: 0257H (599) ch4: 0259H (601) When the measured value reaches Input error determination point and Action at input error is set to “1: Manipulated output value at input error,”...
  • Page 241 8. COMMUNICATION DATA DESCRIPTION RKC communication Output change rate limiter (up) identifier [heat-side] Modbus ch1: 0262H (610) ch3: 0264H (612) register address ch2: 0263H (611) ch4: 0265H (613) RKC communication Output change rate limiter (down) identifier [heat-side] Modbus ch1: 0266H (614) ch3: 0268H (616) register address ch2: 0267H (615) ch4: 0269H (617) RKC communication...
  • Page 242 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. If the Output change rate is set smaller, it will cause slow control response and affect Derivative action. When the Output change rate limiter is used, you may not be able to obtain appropriate PID constants by Autotuning.
  • Page 243 8. COMMUNICATION DATA DESCRIPTION Output limiter high [heat-side] RKC communication identifier Modbus ch1: 026AH (618) ch3: 026CH (620) register address ch2: 026BH (619) ch4: 026DH (621) Output limiter low [heat-side] RKC communication identifier Modbus ch1: 026EH (622) ch3: 0270H (624) register address ch2: 026FH (623) ch4: 0271H (625) Output limiter high [cool-side]...
  • Page 244 8. COMMUNICATION DATA DESCRIPTION AT bias RKC communication identifier Modbus ch1: 0282H (642) ch3: 0284H (644) register address ch2: 0283H (643) ch4: 0285H (645) Use to set a bias to move the set value only when Autotuning is activated. Attribute: Digits: 7 digits Number of data:...
  • Page 245 8. COMMUNICATION DATA DESCRIPTION AT cycles RKC communication identifier Modbus ch1: 0286H (646) ch3: 0288H (648) register address ch2: 0287H (647) ch4: 0289H (649) The number of ON/OFF cycles is selected when the Autotuning (AT) function is executed. Attribute: Digits: 1 digit Number of data: 4 (Data of each channel)
  • Page 246 8. COMMUNICATION DATA DESCRIPTION Output value with AT turned on RKC communication identifier Modbus ch1: 028AH (650) ch3: 028CH (652) register address ch2: 028BH (651) ch4: 028DH (653) Output value with AT turned off RKC communication identifier Modbus ch1: 028EH (654) ch3: 0290H (656) register address ch2: 028FH (655) ch4: 0291H (657) Output value with AT turned on:...
  • Page 247 8. COMMUNICATION DATA DESCRIPTION AT differential gap time RKC communication identifier Modbus ch1: 0292H (658) ch3: 0294H (660) register address ch2: 0293H (659) ch4: 0295H (661) Use to set an ON/OFF action differential gap time for Autotuning. This function prevents the AT function from malfunctioning caused by noise.
  • Page 248 8. COMMUNICATION DATA DESCRIPTION RKC communication Proportional band adjusting factor identifier [heat-side] Modbus ch1: 0296H (662) ch3: 0298H (664) register address ch2: 0297H (663) ch4: 0299H (665) RKC communication Proportional band adjusting factor identifier [cool-side] Modbus ch1: 02A2H (674) ch3: 02A4H (676) register address ch2: Unused ch4: Unused...
  • Page 249 8. COMMUNICATION DATA DESCRIPTION RKC communication Derivative time adjusting factor identifier [heat-side] Modbus ch1: 029EH (670) ch3: 02A0H (672) register address ch2: 029FH (671) ch4: 02A1H (673) RKC communication Derivative time adjusting factor identifier [cool-side] Modbus ch1: 02AAH (682) ch3: 02ACH (684) register address ch2: Unused ch4: Unused...
  • Page 250 8. COMMUNICATION DATA DESCRIPTION Integral time limiter (high) RKC communication identifier [heat-side] Modbus ch1: 02B6H (694) ch3: 02B8H (696) register address ch2: 02B7H (695) ch4: 02B9H (697) Integral time limiter (low) RKC communication identifier [heat-side] Modbus ch1: 02BAH (698) ch3: 02BCH (700) register address ch2: 02BBH (699) ch4: 02BDH (701) Integral time limiter (high) [heat-side]: Use to set the high limit value of Integral time [heat-side].
  • Page 251 8. COMMUNICATION DATA DESCRIPTION RKC communication Derivative time limiter (high) identifier [heat-side] Modbus ch1: 02BEH (702) ch3: 02C0H (704) register address ch2: 02BFH (703) ch4: 02C1H (705) RKC communication Derivative time limiter (low) identifier [heat-side] Modbus ch1: 02C2H (706) ch3: 02C4H (708) register address ch2: 02C3H (707) ch4: 02C5H (709) Derivative time limiter (high) [heat-side]: Use to set the high limit value of Derivative time [heat-side].
  • Page 252 8. COMMUNICATION DATA DESCRIPTION RKC communication Integral time limiter (high) [cool-side] identifier Modbus ch1: 02CEH (718) ch3: 02D0H (720) register address ch2: Unused ch4: Unused RKC communication Integral time limiter (low) [cool-side] identifier Modbus ch1: 02D2H (722) ch3: 02D4H (724) register address ch2: Unused ch4: Unused...
  • Page 253 8. COMMUNICATION DATA DESCRIPTION Open/Close output neutral zone RKC communication identifier Modbus ch1: 02DEH (734) ch3: 02E0H (736) register address ch2: Unused ch4: Unused Use to set Open/Close output neutral zone. Attribute: Digits: 7 digits Number of data: 4 (Data of each channel) Data range: 0.1 to 10.0 % of output Factory set value:...
  • Page 254 8. COMMUNICATION DATA DESCRIPTION Feedback adjustment RKC communication identifier Modbus ch1: 02E6H (742) ch3: 02E8H (744) register address ch2: Unused ch4: Unused Feedback Adjustment function is to adjust controller's output value to match the Feedback resistance (FBR) of the control motor. After the adjustment, the manipulated output value of 0 to 100 % obtained after PID computation matches the valve position signal of the fully closed position to the fully opened position [feedback resistance (FBR) input] sent from the control motor.
  • Page 255 8. COMMUNICATION DATA DESCRIPTION Integrated output limiter RKC communication identifier Modbus ch1: 02EEH (750) ch3: 02F0H (752) register address ch2: Unused ch4: Unused This is a restricted value when the output on the open or closed side is integrated. Attribute: Digits: 7 digits Number of data:...
  • Page 256 8. COMMUNICATION DATA DESCRIPTION RKC communication ST proportional band adjusting factor identifier Modbus ch1: 02F6H (758) ch3: 02F8H (760) register address ch2: 02F7H (759) ch4: 02F9H (761) RKC communication ST integral time adjusting factor identifier Modbus ch1: 02FAH (762) ch3: 02FCH (764) register address ch2: 02FBH (763) ch4: 02FDH (765) RKC communication...
  • Page 257 A group number can be set for each channel to perform control whereby the temperature rise of all channels with the same group number is synchronized. Channels in connected modules (SRZ unit) and channels in a single module can operate as a same group.
  • Page 258 8. COMMUNICATION DATA DESCRIPTION Automatic temperature rise gradient data RKC communication identifier Modbus ch1: 030EH (782) ch3: 0310H (784) register address ch2: 030FH (783) ch4: 0311H (785) This parameter is used to set the temperature change per one minute when the Automatic temperature rise is performed.
  • Page 259 8. COMMUNICATION DATA DESCRIPTION Output average processing time for EDS RKC communication identifier Modbus ch1: 0316H (790) ch3: 0318H (792) register address ch2: 0317H (791) ch4: 0319H (793) Processing time for obtaining the output value average, which is used internally. Attribute: Digits: 7 digits...
  • Page 260 8. COMMUNICATION DATA DESCRIPTION Setting change rate limiter unit time RKC communication identifier Modbus ch1: 031EH (798) ch3: 0320H (800) register address ch2: 031FH (799) ch4: 0321H (801) Set the time unit for Setting change rate limiter (UP/DOWN). Attribute: Digits: 7 digits Number of data: 4 (Data of each channel)
  • Page 261 8. COMMUNICATION DATA DESCRIPTION Setting limiter high RKC communication identifier Modbus ch1: 0326H (806) ch3: 0328H (808) register address ch2: 0327H (807) ch4: 0329H (809) Setting limiter low RKC communication identifier Modbus ch1: 032AH (810) ch3: 032CH (812) register address ch2: 032BH (811) ch4: 032DH (813) Setting limiter high: Use to set a high limit of the set value.
  • Page 262 8. COMMUNICATION DATA DESCRIPTION Operation mode assignment 1 RKC communication identifier (Logic output selection function) Modbus ch1: 0332H (818) ch3: 0334H (820) Logic output 1 to 4 register address ch2: 0333H (819) ch4: 0335H (821) Operation mode assignment 2 RKC communication identifier (Logic output selection function) Modbus...
  • Page 263 [The salve set value (Remote SV) is updated at each time lag.] The maximum number of both master and slave Z-TIO modules that can be connected is 16. The SV select function only operates within connected modules (SRZ unit).  Remote SV function The Remote SV function controls the Measured value (PV) of the channel specified as the master as a remote SV.
  • Page 264 8. COMMUNICATION DATA DESCRIPTION  Cascade control function/Cascade control 2 function Cascade control monitors the controlled object temperature in the master unit and then corrects the set value in the slave unit depending on the deviation between the target value (set value) and actual temperature.
  • Page 265 8. COMMUNICATION DATA DESCRIPTION  Ratio setting function Ratio setting exercises control with the product of the Set value (SV) from the master multiplied by a fixed ratio as the Slave set value (SV). Example: Ratio setting control using CH1 to CH3 of the Z-TIO module Specify CH1 as the master and use the remaining channels (CH2, CH3) as slaves.
  • Page 266 8. COMMUNICATION DATA DESCRIPTION  Operation flow (common procedure for SV select function operation) 1. Set SV select function Set the function that you wish to have operate in the slave channel of the Z-TIO module operation (P. 8-127). In the slave channel, set the module address number of the module that includes the 2.
  • Page 267 8. COMMUNICATION DATA DESCRIPTION  Adjustment after control starting Examples of using the ratio and bias for each function are given below. Example 1: Remote SV function When the master and slave setting limiter range is 0 to 400 C ...
  • Page 268 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Example 3: Ratio setting function When the master and slave setting limiter range is 0 to 400 C  RS ratio of slave: 0.500, RS bias of slave: 20 C Master set value (SV): 200 C  Slave set value (SV): 120 C ...
  • Page 269 8. COMMUNICATION DATA DESCRIPTION Remote SV function RKC communication identifier master channel module address Modbus ch1: 033EH (830) ch3: 0340H (832) register address ch2: 033FH (831) ch4: 0341H (833) In the slave channel, set the module address number of the module that includes the channel to be specified as the master.
  • Page 270 8. COMMUNICATION DATA DESCRIPTION Remote SV function master channel RKC communication identifier selection Modbus ch1: 0342H (834) ch3: 0344H (836) register address ch2: 0343H (835) ch4: 0345H (837) In the slave channel, select the channel number that will be the master in the master channel module. Attribute: Digits: 7 digits...
  • Page 271 8. COMMUNICATION DATA DESCRIPTION Output distribution RKC communication identifier master channel module address Modbus ch1: 0346H (838) ch3: 0348H (840) register address ch2: 0347H (839) ch4: 0349H (841) To output the manipulated output value computed in the master channel from the slave channel, set (in the slave channel) the module address number of the module that includes the channel to be specified as the master.
  • Page 272 8. COMMUNICATION DATA DESCRIPTION Output distribution master channel RKC communication identifier selection Modbus ch1: 034AH (842) ch3: 034CH (844) register address ch2: 034BH (843) ch4: 034DH (845) In the slave channel, select the channel number that will be the master in the master channel module. Attribute: Digits: 7 digits...
  • Page 273 8. COMMUNICATION DATA DESCRIPTION Address of interacting modules RKC communication identifier Modbus ch1: 034EH (846) ch3: 0350H (848) register address ch2: 034FH (847) ch4: 0351H (849) In the Z-TIO module, set the module address number of the module with the channel that you wish to link. Attribute: Digits: 7 digits...
  • Page 274 8. COMMUNICATION DATA DESCRIPTION Channel selection of interacting modules RKC communication identifier Modbus ch1: 0352H (850) ch3: 0354H (852) register address ch2: 0353H (851) ch4: 0355H (853) In the Z-TIO module, select the interacting channel number of the module to be linked for interaction. Attribute: Digits: 7 digits...
  • Page 275 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Example 1: Switching the memory areas of all channels of two Z-TIO modules Base interacting module: CH1 of modules address 0 Module to be linked: CH2 to CH4 of module address 0 CH1 to CH4 of module address 1 Z-TIO 1 (module address: 0) Interacting...
  • Page 276 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Example 2: Switching the memory areas of all channels of two Z-TIO modules using one Z-DIO module Base interacting module: Z-DIO module (module address 16) Module to be linked: CH1 to CH4 of module address 0 CH1 to CH4 of module address 1 Z-TIO 1 (module address: 0) Z-DIO 1 (module address: 16)
  • Page 277 8. COMMUNICATION DATA DESCRIPTION Control RUN/STOP holding setting RKC communication identifier Modbus 035AH (858) register address It is set whether or not the operation mode before the power supply is turned off is held when the power supply is turned on or power failure recovers. Attribute: Digits: 1 digit...
  • Page 278 MEMO 8-142 IMS01T04-E6...

  • Page 279: Communication Data Of Z-Dio Module

    8. COMMUNICATION DATA DESCRIPTION 8.3 Communication Data of Z-DIO Module 8.3.1 Normal setting data items Model code RKC communication identifier  Modbus register address This value is the type identifier code of the Z-DIO module. Attribute: Digits: 32 digits Number of data: 1 (Data of each module) Data range: Depends on model code...
  • Page 280 8. COMMUNICATION DATA DESCRIPTION Digital input (DI) state 1 RKC communication identifier Digital input (DI) state 2 RKC communication identifier Digital input (DI) state Modbus 0000H (0) register address Each digital input (DI) state of the Z-DIO module is expressed in bit data items. Attribute: Digits: 7 digits...
  • Page 281 8. COMMUNICATION DATA DESCRIPTION Digital output (DO) state 1 RKC communication identifier Digital output (DO) state 2 RKC communication identifier Digital output (DO) state Modbus 0001H (1) register address Each digital output (DO) state of the Z-DIO module is expressed in bit data items. Attribute: Digits: 7 digits...
  • Page 282 0 to 2 (digits) The error state is assigned as a bit image in binary numbers. However, send data from the SRZ be changed to decimal ASCII code from the bit image in binary numbers for RKC communication. Bit image: 0000000000000000...
  • Page 283 8. COMMUNICATION DATA DESCRIPTION RUN/STOP transfer RKC communication identifier Modbus 0046H (70) register address Use to transfer the RUN (control RUN) or STOP (control STOP). Attribute: Digits: 1 digit Number of data: 1 (Data of each channel) Data range: 0: STOP (Control STOP) 1: RUN (Control RUN) Factory set value: Related parameters: DI function assignment (P.
  • Page 284 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Modbus: 0 to 255 (bit data) The DO manual output is assigned as a bit image in binary numbers. Bit 0: DO1 manual output Bit image: 0000000000000000 Bit 1: DO2 manual output Bit 2: DO3 manual output Bit 15 ·····················...
  • Page 285 The manipulated output values of the master channel and slave channels are each output within the limit of the output limiter. The output distribution function only functions within modules that are connected together (SRZ unit). Continued on the next page.
  • Page 286 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  Operation flow In the slave channel, set the module address number of the module that includes the 1. Set the DO output channel to be specified as the master. distribution master channel module DO output distribution master channel module address (P.
  • Page 287 8. COMMUNICATION DATA DESCRIPTION DO output distribution bias RKC communication identifier Modbus ch1: 0050H (80) ch5: 0054H (84) register address ch2: 0051H (81) ch6: 0055H (85) ch3: 0052H (82) ch7: 0056H (86) ch4: 0053H (83) ch8: 0057H (87) The bias which is added to the manipulated output value of the master channel that is distributed to DO and output.
  • Page 288 8. COMMUNICATION DATA DESCRIPTION DO proportional cycle time RKC communication identifier Modbus ch1: 0060H (96) ch5: 0064H (100) register address ch2: 0061H (97) ch6: 0065H (101) ch3: 0062H (98) ch7: 0066H (102) ch4: 0063H (99) ch8: 0067H (103) Use to set DO proportional cycle time for the DO output. Attribute: Digits: 7 digits...
  • Page 289 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Function: The DO minimum ON/OFF time of the proportioning cycle is used to prevent output ON or OFF when the output is greater than 0 % or less than 100 %. This is useful when you wish to establish a minimum ON/OFF time to prolong the life of the relay.

  • Page 290: Engineering Setting Data Items

    Set the module address of the applicable Z-DIO module Selection switch of interacting modules: Set the applicable bit to “1” Switching of Z-TIO module functions using DI of a Z-DIO module applies to the entire SRZ unit (multiple Z-TIO or Z-DIO modules connected together).
  • Page 291 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page.  DI assignment table Set value No assignment AUTO/MAN REM/LOC Interlock release EDS start signal 1 Soak stop RUN/STOP REM/LOC AUTO/MAN EDS start signal 1 Operation mode Soak stop RUN/STOP EDS start signal 1 REM/LOC Soak stop RUN/STOP...
  • Page 292 8. COMMUNICATION DATA DESCRIPTION Memory area setting signal RKC communication identifier Modbus 00A5H (165) register address Use to select the memory area setting signal for memory area transfer. Attribute: Digits: 1 digit Number of data: 1 (Data of each module) Data range: 0: Valid 1: Invalid...
  • Page 293 8. COMMUNICATION DATA DESCRIPTION DO signal assignment module address 1 RKC communication identifier [DO1 to DO4] Modbus 00A6H (166) register address DO signal assignment module address 2 RKC communication identifier [DO5 to DO8] Modbus 00A7H (167) register address Specify the module to be used at the DO signal selected by DO output assignment. Attribute: Digits: 7 digits...
  • Page 294 8. COMMUNICATION DATA DESCRIPTION DO output assignment 1 RKC communication identifier [DO1 to DO4] Modbus 00A8H (168) register address DO output assignment 2 RKC communication identifier [DO5 to DO8] Modbus 00A9H (169) register address Assignments to digital outputs (DO1 to DO8) for output of event results of the Z-TIO module and DO manual output states of the Z-DIO module Attribute: Digits:...
  • Page 295 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Logical OR of Event 1 (ch1 to ch4) Logical OR of Event 2 (ch1 to ch4) Logical OR of Event 3 (ch1 to ch4) Logical OR of Event 4 (ch1 to ch4) Temperature rise completion status (ON when temperature rise completion occurs for all channels for which Event 3 is set to temperature rise completion.) The following signals are output depending on the setting of the DO signal assignment module address.
  • Page 296 8. COMMUNICATION DATA DESCRIPTION DO output distribution RKC communication identifier master channel module address Modbus ch1: 00B2H (178) ch5: 00B6H (182) register address ch2: 00B3H (179) ch6: 00B7H (183) ch3: 00B4H (180) ch7: 00B8H (184) ch4: 00B5H (181) ch8: 00B9H (185) To output the manipulated output value computed in the master channel from the DO of the slave channel, set the module address number of the module that includes the channel to be specified as the master.
  • Page 297 8. COMMUNICATION DATA DESCRIPTION DO output distribution master channel RKC communication identifier selection Modbus ch1: 00BAH (186) ch5: 00BEH (190) register address ch2: 00BBH (187) ch6: 00BFH (191) ch3: 00BCH (188) ch7: 00C0H (192) ch4: 00BDH (189) ch8: 00C1H (193) Select the channel number that will be the master in the master channel module.
  • Page 298 8. COMMUNICATION DATA DESCRIPTION DO manipulated output value (MV) at RKC communication identifier STOP mode ch1: 00C2H (194) ch5: 00C6H (198) Modbus ch2: 00C3H (195) ch6: 00C7H (199) register address ch3: 00C4H (196) ch7: 00C8H (200) ch4: 00C5H (197) ch8: 00C9H (201) Manipulated output value that is output from the Z-DIO module (DO1 to DO4, DO5 to DO8) when STOP (control stop) occurs.
  • Page 299 8. COMMUNICATION DATA DESCRIPTION Continued from the previous page. Related parameters: Digital output (DO) state (P. 8-145), RUN/STOP transfer (P. 8-147), DO output distribution selection (P. 8-149), DO output distribution bias (P. 8-151), DO output distribution ratio (P. 8-151), DO proportional cycle time (P. 8-152), DO minimum ON/OFF time of proportioning cycle (P.
  • Page 300 8. COMMUNICATION DATA DESCRIPTION Interval time RKC communication identifier Modbus 00DBH (219) register address RS-485 sets the transmission transfer time to accurately assure the sending/receiving selection timing. Attribute: Digits: 7 digits Number of data: 1 (Data of each module) Data range: 0 to 250 ms Factory set value: The sending and receiving of RS-485 communication is conducted through two wires;...

  • Page 301: Troubleshooting

    TROUBLE SHOOTING 10.1 Solutions for Problems ..............9-2 IMS01T04-E6...
  • Page 302 9. TROUBLESHOOTING Solutions for Problems This section explains possible causes and treatment procedures if any abnormality occurs in the instrument. For any inquiries, please contact RKC sales office or the agent, to confirm the specifications of the product. If it is necessary to replace a device, always strictly observe the warnings below. WARNING ...
  • Page 303 9. TROUBLESHOOTING  Z-TIO/Z-DIO module Problem Possible cause Solution FAIL/RUN lamp does not Power not being supplied Check external breaker etc. light up Appropriate power supply voltage Check the power supply not being supplied Power supply terminal contact Retighten the terminals defect Power supply section defect Replace Z-TIO (or Z-DIO) module...
  • Page 304 9. TROUBLESHOOTING  RKC communication Problem Possible cause Solution No response Wrong connection, no connection or Confirm the connection method or disconnection of the communication cable condition and connect correctly Breakage, wrong wiring, or imperfect contact Confirm the wiring or connector and repair of the communication cable or replace the wrong one Mismatch of the setting data of...
  • Page 305 9. TROUBLESHOOTING  Modbus Problem Possible cause Solution No response Wrong connection, no connection or Confirm the connection method or condition disconnection of the communication cable and connect correctly Breakage, wrong wiring, or imperfect contact Confirm the wiring or connector and repair of the communication cable or replace the wrong one Mismatch of the setting data of...
  • Page 306 MEMO IMS01T04-E6...

  • Page 307: Specifications

    SPECIFICATIONS 10.1 Z-TIO module ................10-2 10.2 Z-DIO module ................10-16 10-1 IMS01T04-E6...

  • Page 308: Z-Tio Module

    10. SPECIFICATIONS 10.1 Z-TIO module  Measured input 4 point or 2 point (Isolated between each input) Number of inputs:  Temperature, Current, Voltage (low) and Feedback resistance input group * Input type: Thermocouple (TC) K, J, T, S, R, E, B, N (JIS-C1602-1995) PL II (NBS), W5Re/W26Re (ASTM-E988-96) RTD: Pt100 (JIS-C1604-1997)
  • Page 309 10. SPECIFICATIONS 250 ms Sampling cycle: Approx. 0.125 V/ (Converted depending on TC types) Influence of external resistance: Approx. 0.02 / of PV (RTD input) Influence of input lead: 10  or less per wire TC input: 1 M or more Input impedance: Voltage (low) input: 1 M...
  • Page 310 10. SPECIFICATIONS  Output (OUT1 to OUT4) 4 points or 2 points Number of outputs: Used for control output or logic output Output contents:  Relay contact output Output type: Contact type: 1a contact Contact rating (Resistive load): 250 V AC 3 A, 30 V DC 1 A Electrical life: 300,000 times or more (Rated load) Mechanical life:...
  • Page 311 10. SPECIFICATIONS  Performance (at the ambient temperature 23 ±2 C, mounting angle 3) [For Fahrenheit: Converted value of Celsius] Input accuracy: Measured input: Input type Input range Accuracy Less than −100 C 2.0 C 100 C or more, less than 500 C 1.0 C K, J, T, PLII, E (0.2 ...
  • Page 312 10. SPECIFICATIONS  Control a) Brilliant II PID control (Direct action/Reverse action is selectable) Control method: b) Brilliant II Heat/Cool PID control (Water cooling) c) Brilliant II Heat/Cool PID control (Air cooling) d) Brilliant II Heat/Cool PID control (Cooling gain linear) e) Brilliant II Position proportioning PID control without FBR a) to e) is selectable a) Enhanced AT...
  • Page 313 10. SPECIFICATIONS  Brilliant II Heat/Cool PID control ( Only CH1 and CH3 can be set a) Proportional band (P) Setting range:  Temperature input: 0 to Input span (unit: C [F]) (Varies with the setting of the decimal point position) ...
  • Page 314 10. SPECIFICATIONS  Brilliant II Position proportioning PID control without FBR Only CH1 and CH3 can be set a) Proportional band (P) Setting range:  Temperature input: 0 to Input span (unit: C [F]) (Varies with the setting of the decimal point position) ...
  • Page 315 10. SPECIFICATIONS  Event function 4 points/channel Number of events: Deviation high, Deviation low, Deviation high/low, Band, Event action: Process high, Process low, SV high, SV low, MV high [heat-side] *, MV low [heat-side] *, MV high [cool-side], MV low [cool-side] Deviation high (Local SV), Deviation low (Local SV), Deviation high/low (Local SV), Band (Local SV)
  • Page 316 10. SPECIFICATIONS  Heater break alarm (HBA) [time-proportional control output (optional)] 4 points or 2 points Number of HBA: 0.0 to 100.0 A (0.0: HBA function OFF) Setting range: [HBA function OFF: The current value monitoring is available] CT assignment: 0 (HBA function OFF) 1 (OUT1) to 4 (OUT4) HBA does not action when control output ON time is 0.1 second or less.
  • Page 317 Interval time: Up to 16 items (Modbus only) Data mapping function: Up to 16 Z-TIO modules Maximum connections: The maximum number of SRZ modules (including other function modules) on the same communication line is 31. RS-485 Signal logic: Signal voltage Logic V (A) ...
  • Page 318 10. SPECIFICATIONS  Logic output function 8 points Number of logic output points: Event output 1 (CH1 to CH4), Event output 2 (CH1 to CH4), Input: Event output 3 (CH1 to CH4), Event output 4 (CH1 to CH4), Heater break alarm1 to 4, Communication switch for logic 1 to 4, FAIL signal Output assignment selection (each output terminal):...
  • Page 319 10. SPECIFICATIONS  Output distribution function Output distribution master channel module address: Setting range: 1, 0 to 99 Master channel selection: 1 to 99 100.0 to 100.0 % Output distribution bias: 9.999 to 9.999 Output distribution ratio: Output distribution selection: 0 (Control output), 1 (Distribution output) ...
  • Page 320 10. SPECIFICATIONS  Master-slave mode 1, 0 to 99 Address of interacting modules: Setting range: Channel selection of interacting modules: 1 to 99 Selection switch of interacting modules: 0 (No interaction) 1 (Interact with other channels) Bit 0: Memory area number Bit 1: Operation mode Bit 2: Auto/Manual Bit 3: Remote/Local...
  • Page 321 10. SPECIFICATIONS  General specifications Between measuring terminal and grounding: Insulation resistance: 20 M or more at 500 V DC Between power supply terminal and grounding: 20 M or more at 500 V DC Between power supply and measuring terminals: 20 M...

  • Page 322: Z-Dio Module

    10. SPECIFICATIONS 10.2 Z-DIO module  Digital input (DI) None or 8 points (DI1 to DI8) Number of inputs: Isolated input (each common block) Number of commons: 2 points (DI 4 points/common) Voltage contact input (Sink type) Input method: Open state: 5 V or less Close state: 17.5 V or more...
  • Page 323 10. SPECIFICATIONS  Digital input (DI) function The following Z-TIO functions can be assigned as digital input: DI function assignment: 0 to 29 (refer to P. 1-6) Setting range: Signal details: Memory area transfer, Area set *, Operation mode, Interlock release, Auto/Manual transfer, Remote/Local transfer, RUN/STOP transfer, Area soak time stop function, EDS start signal * Valid/Invalid of the memory area setting signal can be...
  • Page 324 Interval time: Up to 16 items (Modbus only) Data mapping function: 16 modules (Z-DIO module) Maximum connections: The maximum number of SRZ modules (including other function modules) on the same communication line is 31. RS-485 Signal logic: Signal voltage Logic V (A) ...
  • Page 325 10. SPECIFICATIONS  Self-diagnostic function Date back-up error (Error code 2) Function stop: Action stop (Error number is not displayed [Operation: Impossible]): Power supply voltage monitoring Watchdog timer When a self-diagnostic error occurs: All output OFF Instrument status: Display: A green lamp flashes (Self-diagnostic error (FAIL)) A red lamp is on (Instrument abnormality (FAIL)) ...
  • Page 326 10. SPECIFICATIONS Allowable ambient temperature: 10 to 50 C 5 to 95 RH Allowable ambient humidity: (Absolute humidity: MAX.W.C 29.3 g/m dry air at 101.3 kPa) Installation environment conditions: Indoor use Altitude up to 2000 m Transportation and Storage environment conditions: Vibration: ...

  • Page 327: Appendix

    APPENDIX 11.1 ASCII 7-bit Code Table ..............11-2 11.2 Current Transformer (CT) Dimensions ......... 11-3 11.3 Cover .................... 11-4 11.4 Block Diagram of Logic Output Selection Function ....... 11-6 11.5 Peak Current Suppression Function ..........11-7 11.6 Example of Using DI/DO ............... 11-9 11.7 Example of Using Unused Heat/Cool PID Control Channel Inputs ..................

  • Page 328: Ascii 7-Bit Code Table

    11. APPENDIX 11.1 ASCII 7-bit Code Table This table is only for use with RKC communication. b5 to b7 b4 b3 b2 b1 ‘ ” & ’  < ¥  > ˜ 11-2 IMS01T04-E6...

  • Page 329: Current Transformer (Ct) Dimensions

    11. APPENDIX 11.2 Current Transformer (CT) Dimensions  CTL-6-P-N (For 0 to 30 A) (Unit: mm) 14.5   CTL-12-S56-10L-N (For 0 to 100 A) (Unit: mm) 11-3 IMS01T04-E6...

  • Page 330: Cover

    11. APPENDIX 11.3 Cover WARNING To prevent electric shock or instrument failure, always turn off the power before mounting or removing the terminal cover. When mounting and removing the terminal cover, apply pressure very carefully for avoid damage to the terminal cover. ...
  • Page 331 11. APPENDIX  Terminal cover (optional) Terminal cover Parts code KSRZ-510A(1) Ordering code 00501925 This section can be removed by bending it. Remove and then use it depending on the wiring condition. 11-5 IMS01T04-E6...

  • Page 332: Block Diagram Of Logic Output Selection Function

    11. APPENDIX 11.4 Block Diagram of Logic Output Selection Function Z-TIO module <Logic output 1> Event 1 Event 1 Event 1 (Output assignment) Event 2 Event 2 Event 2 Event 3 Event 3 Event 3 Control output 1 Event 4 Event 4 Event 4 HBA1...

  • Page 333: Peak Current Suppression Function

    11. APPENDIX 11.5 Peak Current Suppression Function When the output type is time proportional output, the Peak current suppression function changes the start timing of the proportional cycle so that the outputs of the channels do not turn ON simultaneously. The Peak current suppression function operates within one Z-TIO module.
  • Page 334 11. APPENDIX The use of peak current suppression function in the load used in the three phase power supply system may not suppress the peak current. This is because the peak current suppression function works on condition that the target (object) channels are time-proportionally controlled on the voltage with the same frequency.

  • Page 335: Example Of Using Di/Do

    11. APPENDIX 11.6 Example of Using DI/DO  Example of using DI Using one Z-DIO module to configure memory area settings and perform AUTO/MAN switching in two Z-TIO modules Set value Setting items (Engineering setting data) 11-9 IMS01T04-E6...
  • Page 336 11. APPENDIX  Example of using DO When outputting events (used as an alarm) and temperature rise completion of two Z-TIO modules from one Z-DIO module 11-10 IMS01T04-E6...
  • Page 337 11. APPENDIX  Example of output distribution from Z-DIO module When outputting distribution of control output of CH1 and CH2 of Z-TIO module from Z-DIO module 11-11 IMS01T04-E6...

  • Page 338: Example Of Using Unused Heat/Cool Control Channel Inputs

    11. APPENDIX 11.7 Example of Using Unused Heat/Cool PID Control Channel Inputs Inputs of unused channels (CH2, CH4) for Heat/Cool PID control can be used as event action inputs. 4CH type module 2CH type module Sensor input 1 Sensor input 1 Sensor input 2 heat-side output heat-side output...

  • Page 339: Index

    INDEX Alphabetical order Action (high) at input error ······················ 6-26, 7-33, 8-103 Data bit configuration ··············································· 5-3 Action (low) at input error ······················· 6-26, 7-33, 8-103 Data mapping address (Z-TIO, Z-DIO) ······················ 7-44 Action at feedback resistance (FBR) input error Decimal point position ·····························...
  • Page 340 INDEX DO signal assignment module address 1 [DO1 to DO4] Event 3 channel setting ··························· 6-23, 7-30, 8-80 ························································ 6-31, 7-40, 8-157 Event 3 delay timer ································ 6-23, 7-30, 8-85 DO signal assignment module address 2 [DO5 to DO8] ························································ 6-31, 7-40, 8-157 Event 3 differential gap ···························...
  • Page 341 INDEX Input select switch ················································· 8-70 Memory area transfer ····························· 6-15, 7-21, 8-18 Minimum ON/OFF time of proportioning cycle Input type ············································· 6-19, 7-26, 8-69 ·························································· 6-18, 7-24, 8-41 Integral time [cool-side] ··························· 6-16, 7-22, 8-24 Model code (Z-TIO) ········································· 6-14, 8-3 Integral time [heat-side] ···························...
  • Page 342 INDEX Setting change rate limiter (down) ············· 6-17, 7-23, 8-29 Setting change rate limiter (up) ················· 6-17, 7-23, 8-29 PID/AT transfer ······································ 6-15, 7-21, 8-14 Setting change rate limiter unit time ········· 6-28, 7-37, 8-124 Proportional band [cool-side] ···················· 6-16, 7-22, 8-23 Setting limiter high ·······························...
  • Page 343 The first edition: MAY 2006 [IMQ00] The sixth edition: JAN. 2018 [IMQ00]...
  • Page 344 RKC INSTRUMENT INC. HEADQUARTERS: 16-6, KUGAHARA 5-CHOME, OHTA-KU TOKYO 146-8515 JAPAN PHONE: 03-3751-9799 (+81 3 3751 9799) E-mail: info@rkcinst.co.jp Website: http://www.rkcinst.com/ IMS01T04-E6 JAN. 2018...

Table of Contents
