# Feature
1 IR Receiver
2 POWER Switch
3 INPUT SELECT Buttons
4
LINE
5
6
7
S/PDIF
8
9 RS-232 DB 9F Port
10 PRIORITY SETUP DIP-switches
11 REMOTE Terminal Block
12 OUT DVI-I Connector
13 IN DVI-I Connectors
14 ETHERNET Connector
15 12V DC
www.camboard.de
CAMBOARD Electronics
Your VP-311DVI Automatic DVI / Audio Switcher

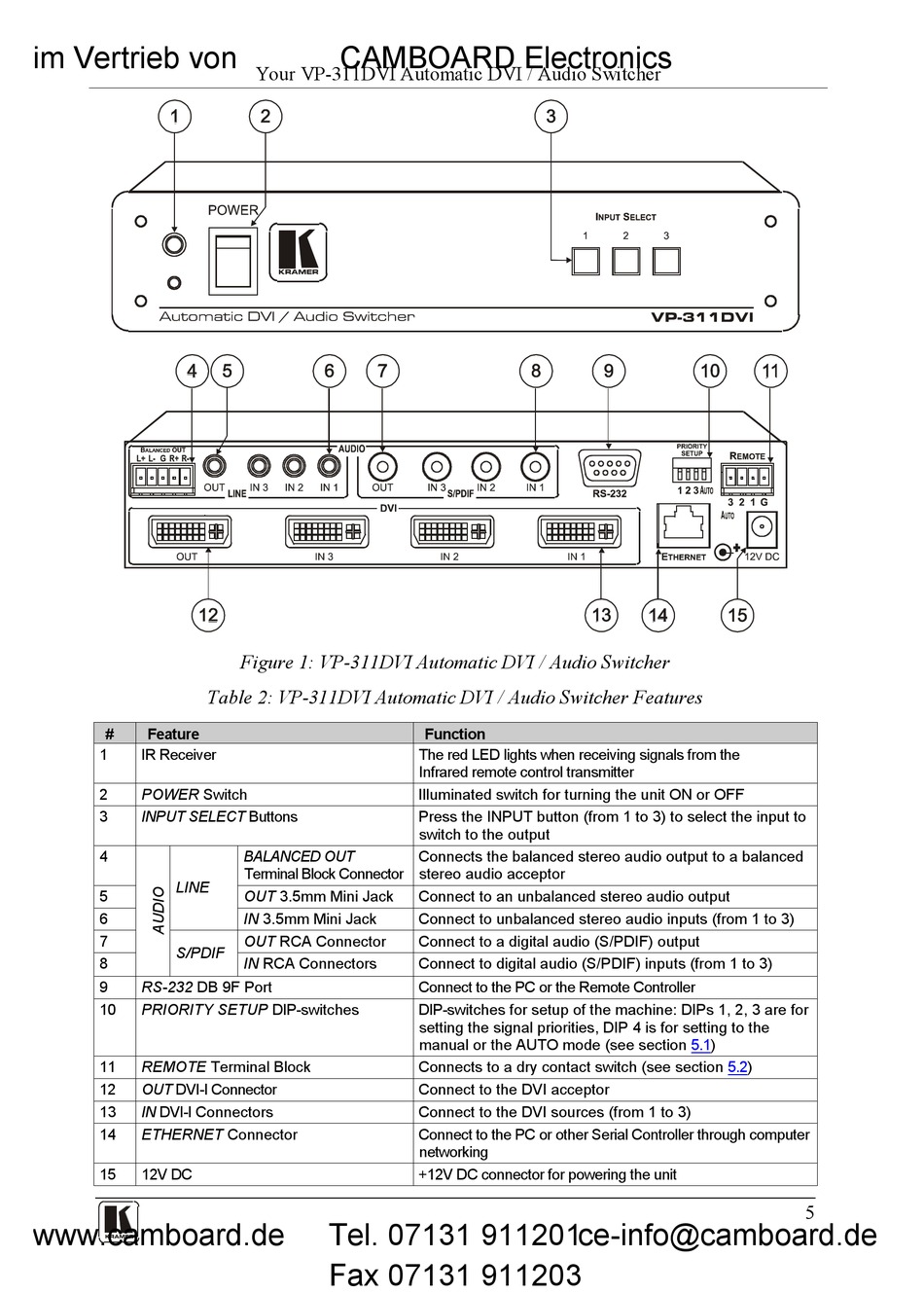

Figure 1: VP-311DVI Automatic DVI / Audio Switcher

Table 2: VP-311DVI Automatic DVI / Audio Switcher Features

BALANCED OUT
Terminal Block Connector
OUT 3.5mm Mini Jack
IN 3.5mm Mini Jack
OUT RCA Connector
IN RCA Connectors
Tel. 07131 911201
Fax 07131 911203
Function
The red LED lights when receiving signals from the
Infrared remote control transmitter
Illuminated switch for turning the unit ON or OFF
Press the INPUT button (from 1 to 3) to select the input to
switch to the output
Connects the balanced stereo audio output to a balanced
stereo audio acceptor
Connect to an unbalanced stereo audio output
Connect to unbalanced stereo audio inputs (from 1 to 3)
Connect to a digital audio (S/PDIF) output
Connect to digital audio (S/PDIF) inputs (from 1 to 3)
Connect to the PC or the Remote Controller
DIP-switches for setup of the machine: DIPs 1, 2, 3 are for
setting the signal priorities, DIP 4 is for setting to the
manual or the AUTO mode (see section 5.1)
Connects to a dry contact switch (see section 5.2)
Connect to the DVI acceptor
Connect to the DVI sources (from 1 to 3)
Connect to the PC or other Serial Controller through computer
networking
+12V DC connector for powering the unit
ce-info@camboard.de
5
