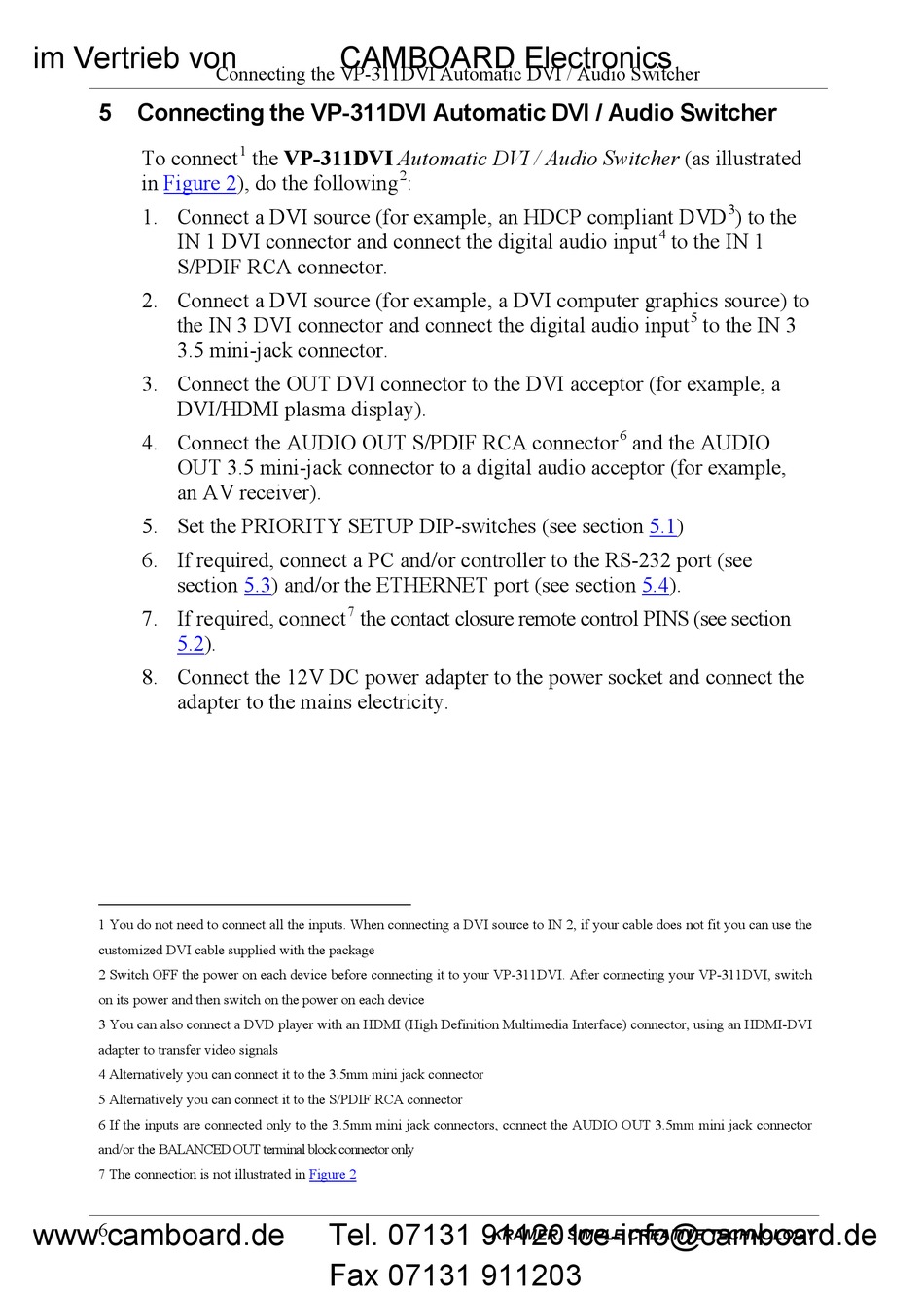

Connecting the VP-311DVI Automatic DVI / Audio Switcher

To connect
in Figure 2
1. Connect a DVI source (for example, an HDCP compliant DVD
IN 1 DVI connector and connect the digital audio input
S/PDIF RCA connector.
2. Connect a DVI source (for example, a DVI computer graphics source) to
the IN 3 DVI connector and connect the digital audio input
3.5 mini-jack connector.
3. Connect the OUT DVI connector to the DVI acceptor (for example, a
DVI/HDMI plasma display).
4. Connect the AUDIO OUT S/PDIF RCA connector
OUT 3.5 mini-jack connector to a digital audio acceptor (for example,
an AV receiver).
5. Set the PRIORITY SETUP DIP-switches (see section
6. If required, connect a PC and/or controller to the RS-232 port (see
section 5.3) and/or the ETHERNET port (see section 5.4).
7. If required, connect
5.2 ).
8. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
1 You do not need to connect all the inputs. When connecting a DVI source to IN 2, if your cable does not fit you can use the
customized DVI cable supplied with the package
2 Switch OFF the power on each device before connecting it to your VP-311DVI. After connecting your VP-311DVI, switch
on its power and then switch on the power on each device
3 You can also connect a DVD player with an HDMI (High Definition Multimedia Interface) connector, using an HDMI-DVI
adapter to transfer video signals
4 Alternatively you can connect it to the 3.5mm mini jack connector
5 Alternatively you can connect it to the S/PDIF RCA connector
6 If the inputs are connected only to the 3.5mm mini jack connectors, connect the AUDIO OUT 3.5mm mini jack connector
and/or the BALANCED OUT terminal block connector only
7 The connection is not illustrated in
