‎ C hapter 5 Configuring
Display
Label
UPdt Display update rate
ScrL Auto scroll interval
rEtn Auto return to the
main screen
bAr Reference load current
for LED bar graph
Uolt Primary/Secondary
volts units
Ph.P Phase powers display
mode
Fund. Fundamental
component display
mode
dAtE Date order
rSt Simple reset mode
brGt Brightness
diAG Diagnostic LED
FLSH Flash Loader call

Local Time Settings

Using the Front Display
Using PAS
PM130 PLUS Powermeter Series
T H E P M 1 3 0 P L U S
General
M E T E R
Parameter
0.1-10.0 sec
None,
2-15 sec
diS = disabled,
En = Enabled
0-10,000A
(0 = CT primary
current)
Pri = primary
SEc = secondary
diS, En
diS, En
dnY, ndY, Ynd
(d=day, n=month,
y=year)
PASS = password
protected
En = always
enabled
1-3
diS, En
N/A
This setup allows you to specify your time zone, daylight saving time, and
clock synchronization options.
Select rtc from the main menu. See
in Chapter 3 for information on configuring parameters via the front
display.
Select General Setup from the Meter Setup menu, and then click on the
Local Settings tab.
S E T U P

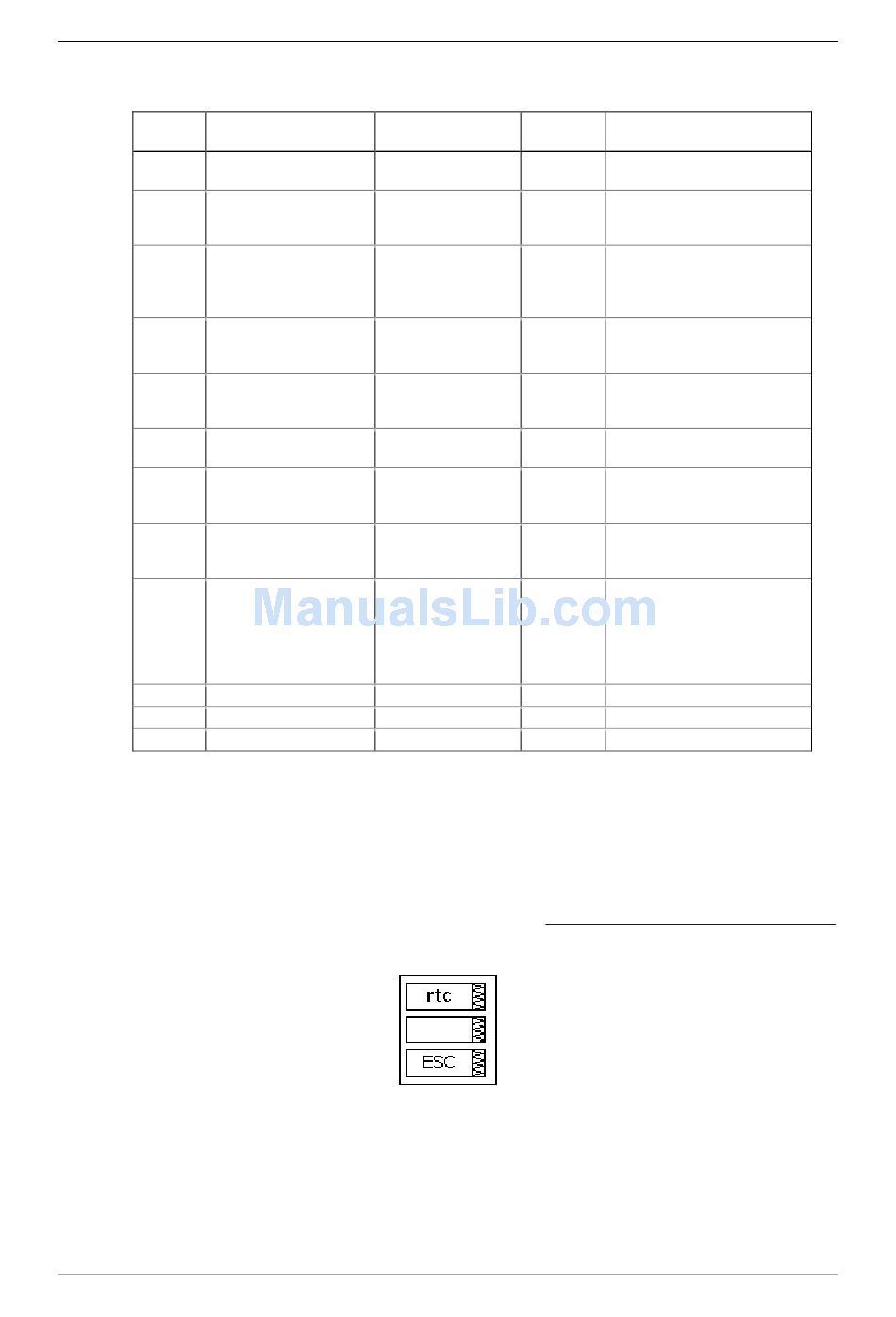

Table 27: Display Setup Options
Options Default
1 sec
None
Enabled
0
Primary
Disabled
Disabled
mm.dd.yy
PASS
3
Disabled
N/A
Viewing and Changing Setup Options
Description
Defines the interval
between display updates
Defines the scroll interval
for the main data display or
disables auto scroll
Enables automatic return to
the main display if no
buttons are pressed for 5
minutes
Defines the nominal load
(100%) level for the bar
graph display
Selects primary or
secondary units for volts
display
Disables or enables phase
powers in the main display
Disables or enables
fundamental values in the
main display
Defines the date order in
the RTC display
PASS = the simple reset is
not allowed if password
protection is enabled
En = enables the simple
reset buttons regardless of
password protection
Sets the LED brightness
Enables the diagnostic LED
Launches the Flash Loader
