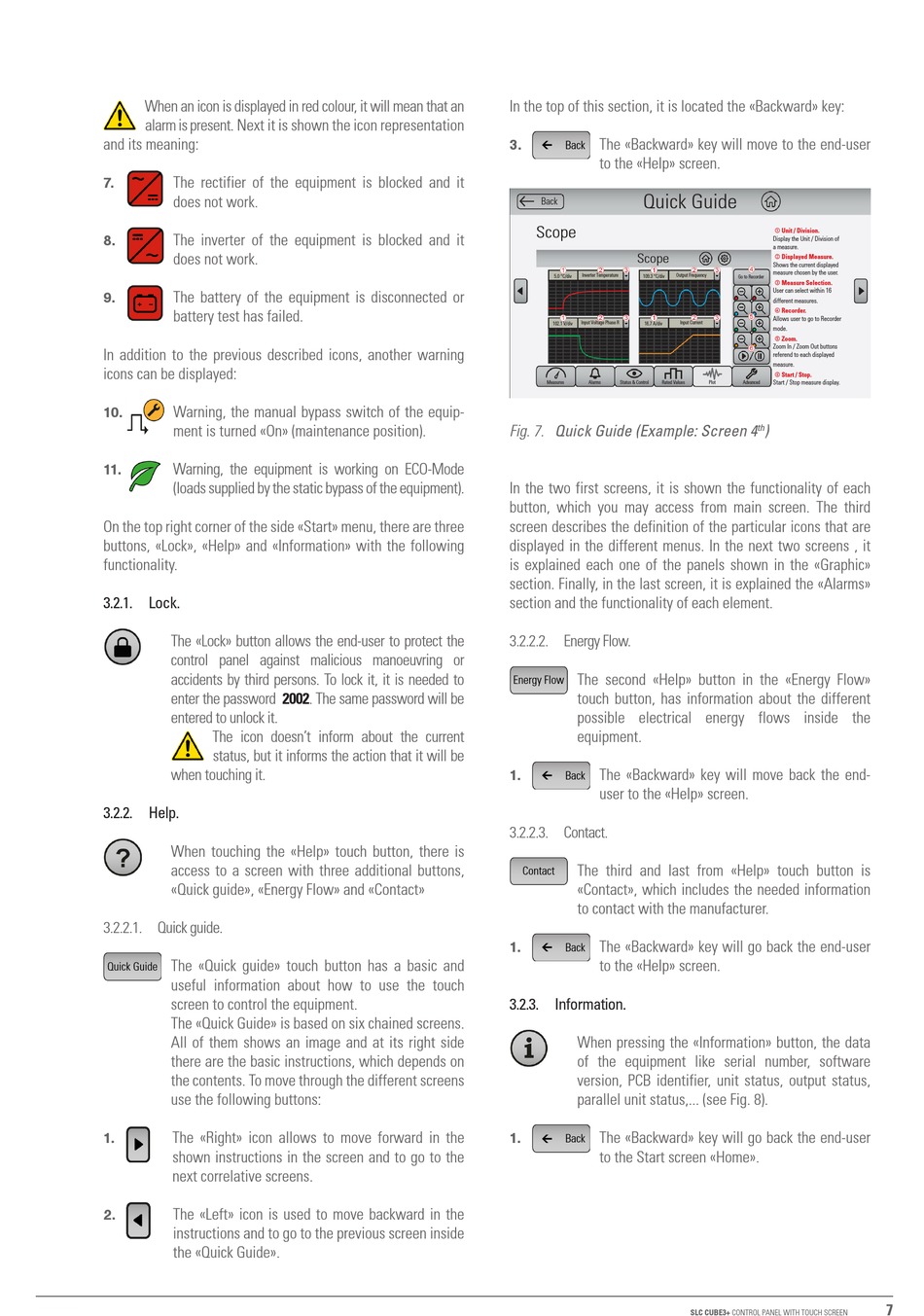

When an icon is displayed in red colour, it will mean that an
alarm is present. Next it is shown the icon representation
and its meaning:
The rectifier of the equipment is blocked and it
7.
does not work.
The inverter of the equipment is blocked and it
8.
does not work.
The battery of the equipment is disconnected or
9.
battery test has failed.
In addition to the previous described icons, another warning
icons can be displayed:
Warning, the manual bypass switch of the equip-
10.
ment is turned «On» (maintenance position).
Warning, the equipment is working on ECO-Mode
11.
(loads supplied by the static bypass of the equipment).
On the top right corner of the side «Start» menu, there are three
buttons, «Lock», «Help» and «Information» with the following
functionality.
3.2.1. Lock.
The «Lock» button allows the end-user to protect the
control panel against malicious manoeuvring or
accidents by third persons. To lock it, it is needed to
enter the password 2002. The same password will be
entered to unlock it.
when touching it.
3.2.2. Help.
When touching the «Help» touch button, there is
access to a screen with three additional buttons,
«Quick guide», «Energy Flow» and «Contact»
3.2.2.1. Quick guide.
The «Quick guide» touch button has a basic and
Quick Guide
useful information about how to use the touch
screen to control the equipment.
The «Quick Guide» is based on six chained screens.
All of them shows an image and at its right side
there are the basic instructions, which depends on
the contents. To move through the different screens
use the following buttons:
The «Right» icon allows to move forward in the
1.
shown instructions in the screen and to go to the
next correlative screens.
The «Left» icon is used to move backward in the
2.
instructions and to go to the previous screen inside
the «Quick Guide».
USER'S MANUAL
The icon doesn't inform about the current
status, but it informs the action that it will be
In the top of this section, it is located the «Backward» key:
The «Backward» key will move to the end-user
3.
Back
to the «Help» screen.
Quick Guide
Back
Scope
Scope
Inverter Temperature
Output Frequency
5.0 °C/div
109.3 °C/div
Input Voltage Phase R
Input Current
102.1 V/div
16.7 A/div
Measures
Alarms
Status & Control
Rated Values
Fig. 7. Quick Guide (Example: Screen 4
In the two first screens, it is shown the functionality of each
button, which you may access from main screen. The third
screen describes the definition of the particular icons that are
displayed in the different menus. In the next two screens , it
is explained each one of the panels shown in the «Graphic»
section. Finally, in the last screen, it is explained the «Alarms»
section and the functionality of each element.
3.2.2.2. Energy Flow.
The second «Help» button in the «Energy Flow»
Energy Flow
touch button, has information about the different
possible electrical energy flows inside the
equipment.
The «Backward» key will move back the end-
1.
Back
user to the «Help» screen.
3.2.2.3. Contact.
The third and last from «Help» touch button is
Contact
«Contact», which includes the needed information
to contact with the manufacturer.
The «Backward» key will go back the end-user
1.
Back
to the «Help» screen.
3.2.3. Information.
When pressing the «Information» button, the data
of the equipment like serial number, software
version, PCB identifier, unit status, output status,
parallel unit status,... (see Fig. 8).
The «Backward» key will go back the end-user
1.
Back
to the Start screen «Home».
Unit / Division.
Display the Unit / Division of
a measure.
Displayed Measure.
Shows the current displayed
measure chosen by the user.
Go to Recorder
Measure Selection.
User can select within 16
different measures.
Recorder.
Allows user to go to Recorder
mode.
Zoom.
Zoom In / Zoom Out buttons
referend to each displayed
measure.
Start / Stop.
Start / Stop measure display.
Plot
Advanced
)
th
SLC CUBE3+ CONTROL PANEL WITH TOUCH SCREEN
7
