The first mode allows displaying up to four measurements
of the equipment temporarily (every 0.5s approximately)
and independent among them, so the current status of the
measurement and the previous instants are shown. The
graphics are displayed as they were from an oscilloscope. Each
one has one channel of different colour.
5 °C / div
Inverter Heatsink Temperature
102.1 V / div
Input Voltage Phase R
Measures
Alarms

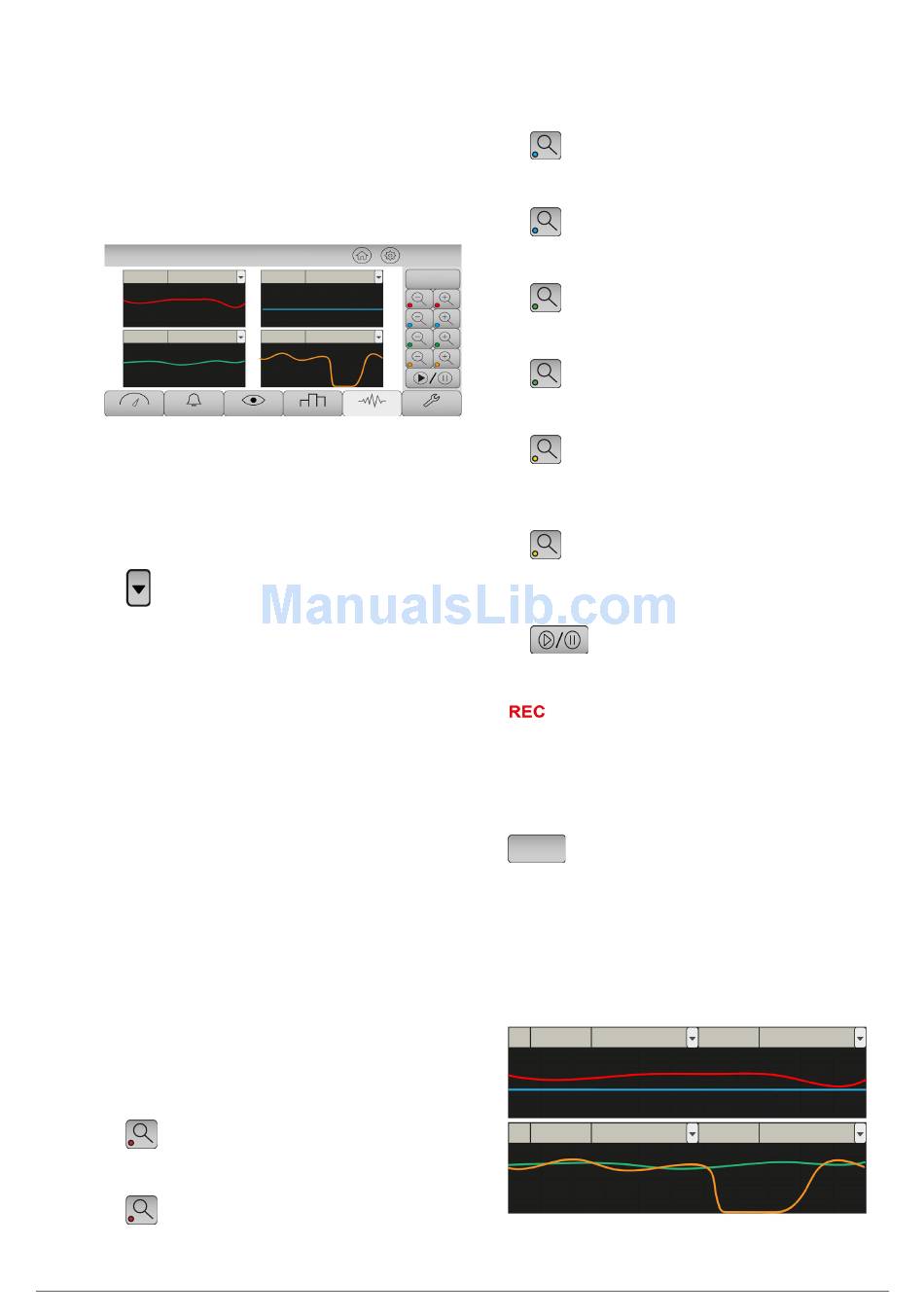

Fig. 16. Instantaneous plots screen.
In the side bar there are several buttons, which allows setting
the visualization of the graphics. The first button is detailed in
section 4.5.1. «Go to data logger».
The «Drop-down» list icon is located in the right side
1.
of each one of the parameters located in the headline
of the graphics, it gives access to one of the measure-
ments of the following list directly. Any of these pa-
rameters can be assigned to any graphic, allowing
the end-user doing multiple configurations:
ˆ
Inverter heatsink temperature.
ˆ
Battery temperature.
ˆ
Input voltage L1, L2 and L3 (R.M.S. value).
ˆ
Output voltage RMS L1, L2 and L3 (R.M.S. value).
ˆ
Input current L1, L2 and L3 (R.M.S. value).
ˆ
Output current L1, L2 and L3 (R.M.S. value).
ˆ
Battery charging current.
ˆ
Battery discharging current.
ˆ
Positive and negative battery voltage.
ˆ
Positive and negative DC bus voltage.
ˆ
Input and output frequency.
ˆ
Bypass frequency.
ˆ
By selecting one parameter only, it is started the record
of the data in order to make the graph in the selected
oscilloscope. Also, each graph, in any of the representative
way «Instantaneous graphic» or «Data logger» will always be
displayed in the same colour, but different to the other three.
As it can be checked, the touch graphic «Zoom» is repeated
in each graph and it is associated to one colour, two by two
(increasing and decreasing).
The touch button «Zoom – red» allows the end-user in-
1.
creasing the scale unit/frame of the red colour graph,
in order to decrease as regards to the screen.
+
The touch button «Zoom + red» allows the end-user de-
2.
14
Scope
109.3 Hz / div
Output Frequency
16.7 A / div
Input Current
Status - Control
Rated Values
Plots
PFC heatsink temperature.
creasing the scale unit/frame of the red colour graph, in order
to increase as regards to the screen.
The touch button «Zoom – blue» allows the end-user in-
3.
creasing the scale unit/frame of the blue colour graph,
in order to decrease as regards to the screen.
+
The touch button «Zoom + blue» allows the end-user
4.
decreasing the scale unit/frame of the blue colour
graph, in order to increase as regards to the screen.
Go to Recorder
The touch button «Zoom – green» allows the end-user
5.
increasing the scale unit/frame of the green colour
graph, in order to decrease as regards to the screen.
+
The touch button «Zoom + green» allows the end-user
6.
decreasing the scale unit/frame of the green colour
graph, in order to increase as regards to the screen.
Advanced
The touch button «Zoom – yellow» allows the end-
7.
user increasing the scale unit/frame of the yellow
colour graph, in order to decrease as regards to the
screen.
+
The touch button «Zoom + yellow» allows the end-
8.
user decreasing the scale unit/frame of the yellow
colour graph, in order to increase as regards to the
screen.
9.
In the main menu, this graphic can be displayed in the
same touch button «Graphics». The acronym REC
indicates to the end-user that the graph data logger is
being recorded.
4.5.1. Go to Recorder.
Go to
This touch button in the side bar changes to data
Recorder
logger recording mode. It corresponds to the second
graph mode, which allows defining the period of
time that the end-user can record the data of up to
four signals. The measurements of the same
parameters can be set in the instantaneous graphic
display, but for a longer period of time. In this mode
there are two oscilloscopes, but both allow two
channels and represented by different colours.
1D
5 °C / div
1D
30 V / div
Fig. 17. Recorder screen.
The touch button «Play / Pause» allows the end-
user to stop and resume the time effect in the
signal.
Inverter Heatsink Temp.
15 Hz/ div
Input Voltage Phase R
5 A/ div
Output Frequency
Input Current
