3. DESCRIPTION OF THE SECTIONS.

This description shows all the sections of the touch panel. The order
of the description is the order that the buttons can be found in the
touch panel, from left to right and from top to bottom.
3.1. LOG IN.
The «Log In» button is located in the top left corner inside the
categorie «Title». This is a restricted section for Service and
Technical Support (S.T.S.) personnel use only.
When pressing the «Log In» button, it is displayed a
Log In
pop up keypad to enter the password, allowing our
Service and Technical Support (S.T.S.) personnel
making changes in the equipment settings.
3.2. START SCREEN «HOME».
The «Start» button is located in the top right corner inside the
categorie «Title».
When pressing «Start» button, the initial screen is
displayed, which among other informations it has the
single line diagram of the equipment. In this diagram
the operating flow can be checked (lines filled with
movement indicators, which can vary, depending on
the operating mode of the UPS in that moment). Re-
gardless of that, the illustrations in Fig 3 to 6 show
some structural examples of the unit as three phase
in and out, single in and three phase out..., even
though there are other configurations, which will be
displayed in the own control panel.
Input Frequency
50.1 Hz
R
226.5 V
S
227.3 V
T
228.7 V
Battery Temperature
Fig. 3. Start screen (Three-Three phase I/O example).
Input Frequency
50.1 Hz
R
226.5 V
Battery Temperature
Fig. 4. Start screen (Single - Three phase I/O example).
6
Output Frequency
Parallel Id. 1
31.6 °C
Output Frequency
Parallel Id. 1
31.6 °C
R
226.5 V
S
227.3 V
T
228.7 V
R
226.5 V
S
227.3 V
T
228.7 V
Fig. 5. Start screen (Three -three phase I/O example
with separate bypass line).
R
226.5 V
S
227.3 V
T
228.7 V
Fig. 6. Start screen (particular equipment example).
In the start screen, a part from the intrinsic UPS configuration
(single line diagram), input and output voltages and frequencies
are shown, as well as the ambient temperature of the battery
block. Likewise, the equipments set as parallel, it is also displayed
its «Id.» address and the its output switch position «On» (closed)
or «Off» (opened).

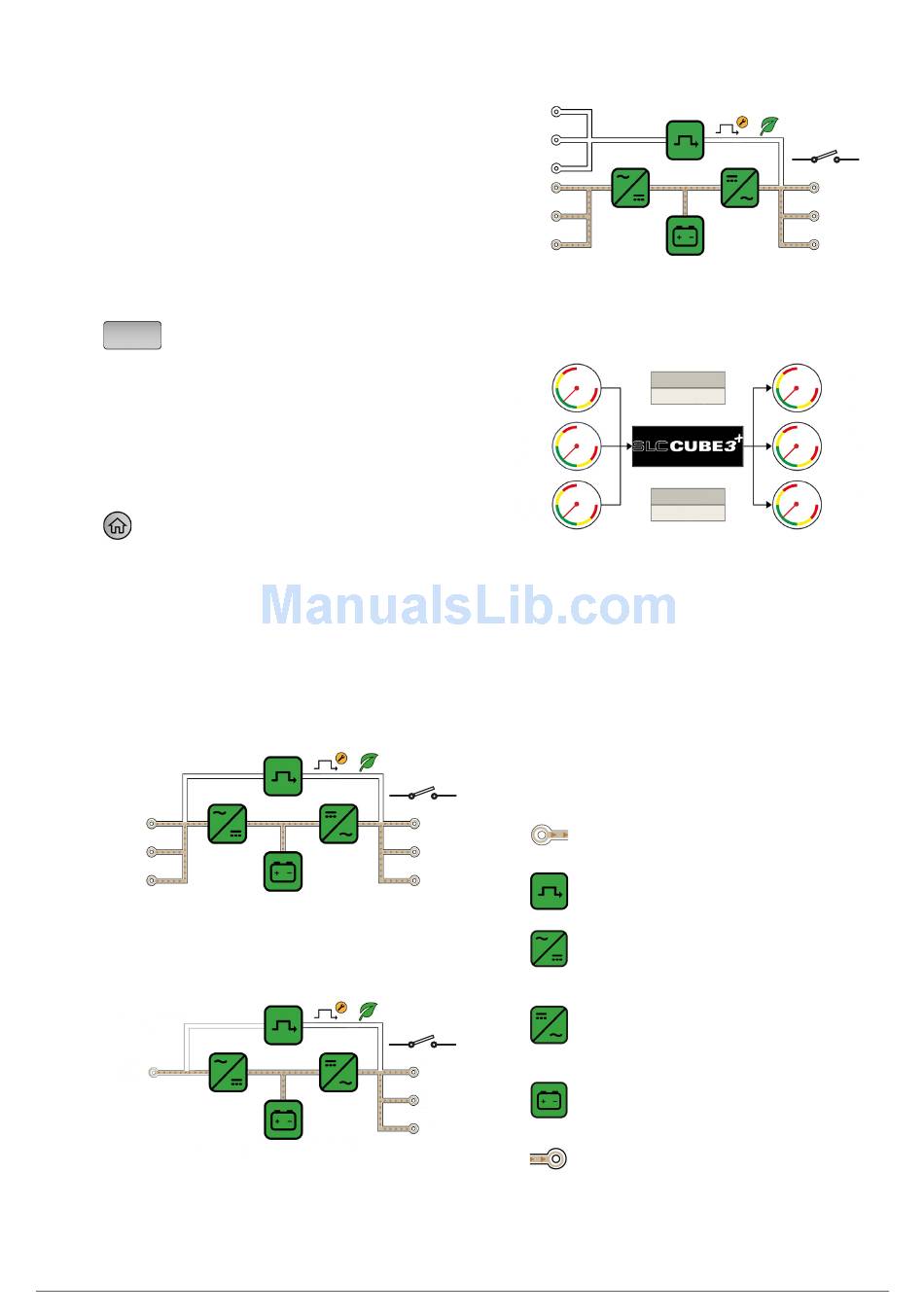

Also, when pressing over any icon or defined area of the single
line diagram, the «Measures» menu with the several magnitudes
50.0 Hz
and the related values with that area will displayed, according
Out SW: Open
to the following icons:
U
1.
230.0 V
V
230.0 V
W
2.
230.0 V
3.
50.0 Hz
4.
Out SW: Open
U
230.0 V
V
5.
230.0 V
W
230.0 V
6.
Input Frequency
50.1 Hz
Parallel Id. 1
Battery Temperature
31.6 °C
Input Frequency
50.1 Hz
Output Frequency
50.0 Hz
When pressing over any of these icons, you access
to the «Input» menu directly.
When pressing over this icon, you access to the
«Bypass» menu directly.
When pressing over this icon, you access to the
«PFC and Inverter» menu directly, although the icon
is only referred to the PFC.
When pressing over this icon, you access to the
«PFC and Inverter» menu directly, although the icon
is only referred to the inverter.
When pressing over this icon , you access the «Bat-
tery» menu directly.
When pressing over any of these icons, you access
the «Output» menu directly.
Output Frequency
50.0 Hz
Out SW: Open
U
230.0 V
V
230.0 V
W
230.0 V
U
230.0 V
V
230.0 V
W
230.0 V
