4. MAIN MENU.

4.1. MEASURES.
The «Measures» touch icon is located in the bottom area, of the
first main menu.
When touching in the touch screen over the
Measures
«Measures» menu, all the browsing icons describes
in this section will be displayed in the side bar, they
will be shown in a column and in the same described
order.
Any data is updated constantly and displayed in one
or three lines, depending on both the equipment is
single or three phase and the parameter.
4.1.1. Input.
By means of this button the following information
Input
related with the UPS input can be displayed:
Voltage.
ˆ
Frequency.
ˆ
Current.
ˆ
Power factor.
ˆ
Apparent power.
ˆ
Active power.
ˆ

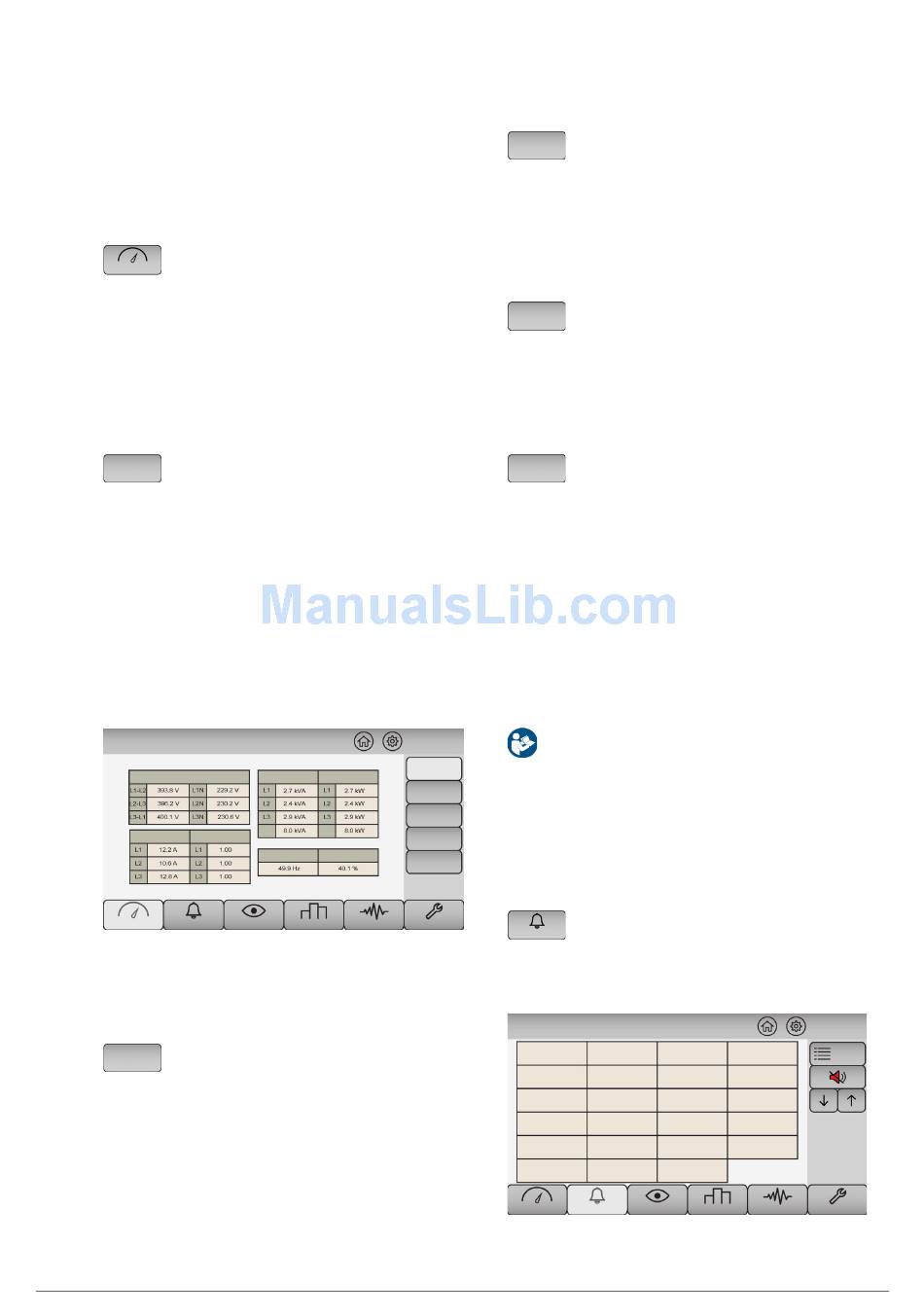

As an example, Fig. 12 shows the screen illustration
corresponding to the input measurements. The rest of the
measurement screens will be similar and in line with the
parameter of the measurement.
Voltage
Current Power Factor
Measures Alarms
Fig. 12. Input measurements screen.
4.1.2. Output.
By means of this button the following information
Output
related with the UPS output can be displayed:
Voltage.
ˆ
Frequency.
ˆ
Current.
ˆ
Power factor.
ˆ
Apparent power.
ˆ
Active power.
ˆ
10
Input
Apparent Power Active Power
Total Total
Input Frequency Input Load
Status - Control Rated Values Plots
4.1.3. PFC and inverter.
By means of this button the following information
PFC-Inverter
related with this stage can be displayed:
Inverter voltage.
ˆ
DC bus voltage.
ˆ
Inverter heatsink temperature.
ˆ
PFC heatsink temperature.
ˆ
4.1.4. Bypass.
By means of this button the following information
Bypass
related with this stage can be displayed:
Voltage.
ˆ
Current.
ˆ
Frequency.
ˆ
4.1.5. Batteries.
By means of this button the following information
Batteries
related with the UPS batteries can be displayed:
Charging current.
ˆ
Voltage.
ˆ
Discharging current.
ˆ
Estimated back up time.
ˆ
Temperature.
ˆ
4.2. ALARMS.
The available alarms for the touch panel and alphanumerical LCD
are the same, even though the graphics are different due to the
own features of both screens.
All the alarms, which can be displayed in the touch
screen are listed in table 4 and in section 7.3.5 of the
document EN014*01 (user's manual of the equipment) it
Input
is stated their triggering condition.
Output
The appoinment numbering for each alarm in «Ref.»
PFC-Inverter
column of table 4, means their correlation.
Bypass
Batteries
The «Alarms» touch icon is located in the bottom area, in the
second position of main menu.
When touching the «Alarms» chart, it is displayed
Advanced
Alarms
the active alarms only, ordered in the «Active alarms»
table, showing the most recent first (see Fig. 13 as
an example).
Mains Failure
Battery Discharging
Bypass Failure: Not
Synchronised Inverter
Measures Alarms
Fig. 13. Active alarms screen.
Active alarms
Mains Failure: Input Voltage Wrong: Inverter
Battery Low Level Rectifier Stop Overload
Page /
Status & Control Status - Control Plots
Browse
Historic
Advanced
