Summary of Contents for Pyle PLCD69

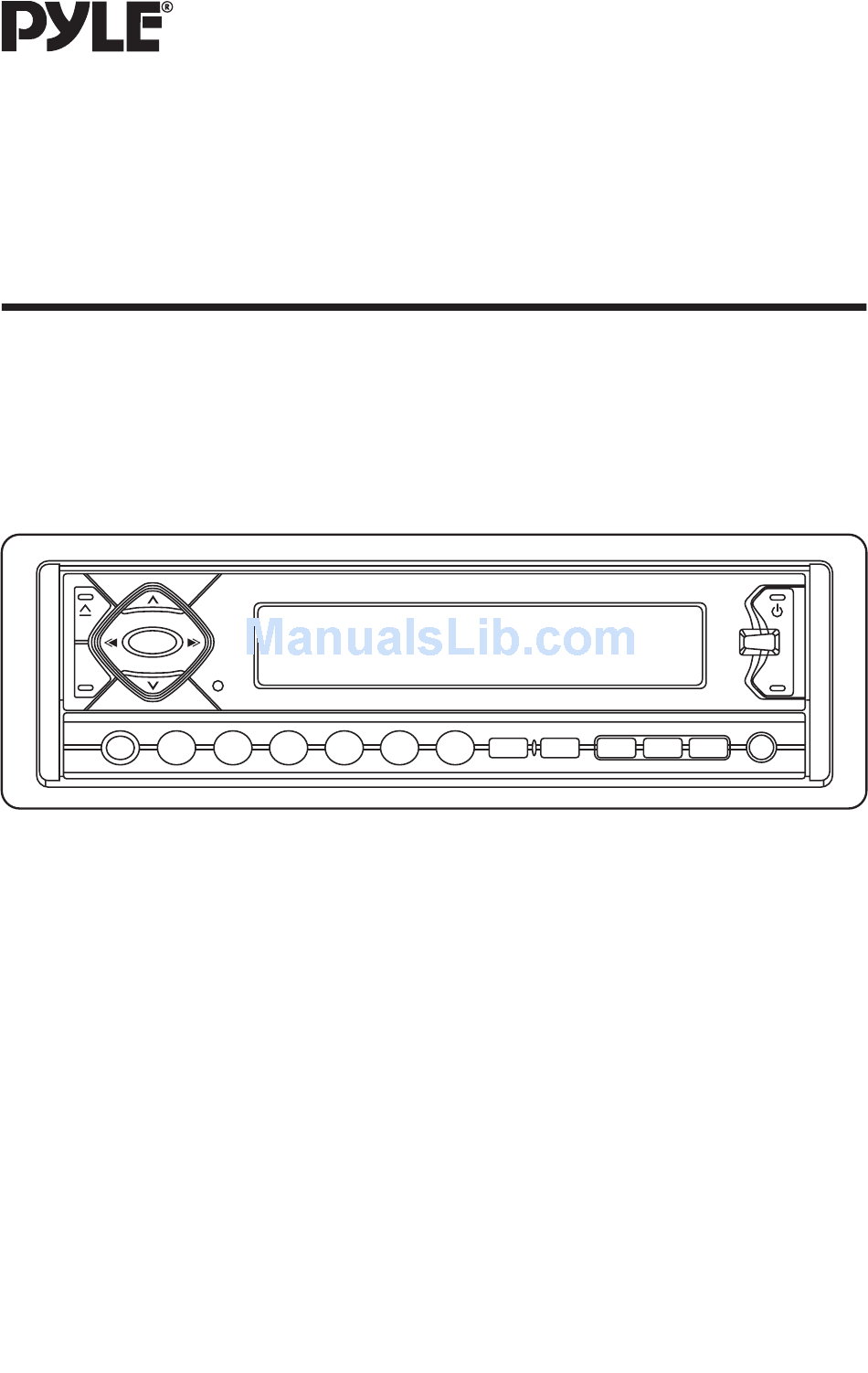

- Page 1 PLCD69 OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • Automatically Memory Storing • Hiding Panel • Preset Equalization • Auxiliary Input Function • Remote Conrol...
-
Page 2: Table Of Contents
CONTENTS Installation ...3 DIN Front-Mount (Method A) ...3 Installing the unit ...3 Removing the unit ...4 DIN Rear-Mount (Method B) ...4 Using the Front Panel ...5 Wiring Connection ...6 Operation ...7 General Operation ...7 Radio Operation...9 CD Operation ...10 Remote Conrol ...11 Specification...12 Trouble Shooting ...13... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. -
Page 4: Removing The Unit
INSTALLATION Removing the unit 1. Frame 2. Release Frame Key Insert the release frame key into the groove at the right side of the frame, then prize out to remove the frame. (You can also use the key to remove the frame from the left side.) 3. -
Page 5: Using The Front Panel
USING THE FRONT PANEL 1. When open the car lock (ACC ON), the panel of the unit will change from State 1 to State 2 (see below), the hidden panel will turn up. State 1 State 2 2. Press (power) button to turn on the unit. -
Page 6: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) BLUE POWER ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN (GREEN) SUBWOOFER CABLE (BROWN) Rch RED FRONT RCA CABLE Lch WHITE (GREY) Rch RED REAR RCA CABLE... -
Page 7: Operation
OPERATION GENERAL OPERATION • ON/OFF When the hiding panel turns up (in State 2), press button (9) to turn on the unit. When system is on, press button (9) to turn off the unit. • SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode. - Page 8 OPERATION • SET THE CLOCK Press the DSP button (15), and the clock is shown on the display. Then hold down the button until the clock flashes. Then press the MANU/SKIP button (17) to change hours or MANU/SKIP change minutes. •...
-
Page 9: Radio Operation
OPERATION RADIO OPERATION • BAND SELECTION At tuner mode, press LOU/BND button (13) shortly to select the desired band. The reception band will change in the following order: • STATION SELECTION Press MANU/SKIP MANU/SKIP button (17) shortly to activate automatic seek function. Press for several seconds until “MANUAL”... -
Page 10: Cd Operation
OPERATION CD OPERATION • CD OPEN/CLOSE/EJECT When the front panel is in State 2 and the unit is on, press the panel will change into State 3 and display the disc slot (5). Then insert a disc into the slot, the panel will automatically turn up. -
Page 11: Remote Control Handset
OPERATION REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL TUNE/SEEK TUNE/SEEK 10. AMS 11. M1 - M6 12. PAU 13. SCN 14. RPT 15. SHF = Power ON/OFF Button = Display Button = Select Button = Volume Up Button = Volume Down Button = Band Select Button = Mode Button = Tune/Seek Down Button... -
Page 12: Specification
Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) -
Page 13: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot Presence of CD disc inside Remove the disc in the player, then be loaded or... - Page 16 www.pyleaudio.com 88-C1731-05...
