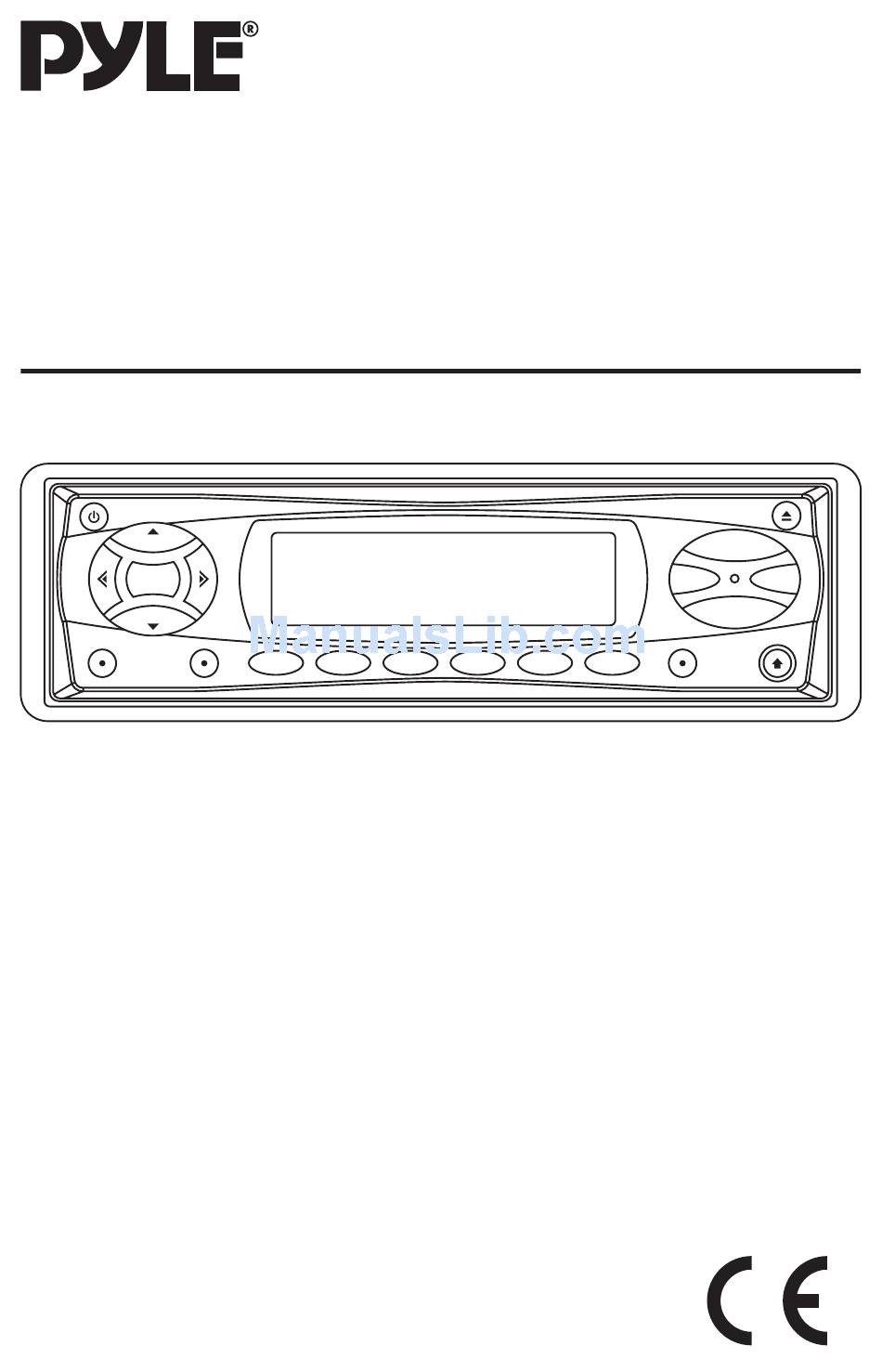

PLCD19XMR
OWNER'S MANUAL
Mobile Audio System
• PLL Synthesizer Stereo Radio
• Digital Compact Disc Player
• XM Ready Function
• Automatic Memory Storing
• Slide Down Detachable Panel
• Direct Track Access
• Program CD Tracks
• CD Changer Control
• Auxiliary Input Function
• Wired Commander Control
www.pyleaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCD19XMR and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLCD19XMR

Summary of Contents for Pyle PLCD19XMR

  • Page 1 PLCD19XMR OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • XM Ready Function • Automatic Memory Storing • Slide Down Detachable Panel • Direct Track Access • Program CD Tracks • CD Changer Control •...

  • Page 2: Table Of Contents

    CONTENTS Installation ...3 DIN Front-Mount...3 Installing the unit...3 Removing the unit...4 Using the Detachable Front Panel ...5 Wiring Connection ...6 Operation...10 General Operation ...10 Radio Operation ...13 XM Operation ...13 CD Operation ...14 CDC Operation ...15 Specification...17 Trouble Shooting...18...

  • Page 3: Installation

    INSTALLATION Notes: • The unit can be installed on the vehicle or the ships. • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

  • Page 4: Removing The Unit

    INSTALLATION (Fig. 2) 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5x25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle. 7.

  • Page 5: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the OPEN button, the front panel will slide down. Open 2. When the front panel slides down, press the bottom button of the front panel upward and pull it out from the panel bracket.

  • Page 6: Wiring Connection

    WIRING CONNECTION WIRING REMOTE CONNECTOR SOCKET RED RCH WHITE RCH AUX IN CABLE (YELLOW) ANTENNA CONNECTOR FRONT Lch SPEAKER REAR Lch SPEAKER XM AUDIO CABLE(BLACK) (BLACK) FUSE REAR RCA CABLE (GREY) WHITE GREY WHITE/BLACK GREY/BLACK GREEN VIOLET GREEN/BLACK VIOLET/BLACK AUDIO R IN (RED) AUDIO L IN (WHITE) XM RECEIVER CONNECTOR SOCKET (BLACK) (BLACK)

  • Page 7: Operation

    OPERATION CONTROL & FUNCTIONS KEYS This unit is a marine rated wired remote control made using a modified controller or similar layout. It is capable of operation specified functions on the marine AM/FM/CD receiver. The body, buttons, controls and display need to be UV and water-resistant. It includes and LCD and an illumination circuit.
  • Page 8 OPERATION 4 MODE SELECTION button Press the MODE button (4) to step sequentially through the following sources: e.g. radio mode to CD mode to CDC mode to AUX in mode. 5 BAND SELECTION button Press the BAND button (5) to step sequentially through the following bands: FM1, FM2, FM3, AM1, AM2.
  • Page 9 INSTALLATION INSTALLATION HARDWARE HOLDER SCREW (ø4X50) INSTALLATION DIAGRAM 3. Align the screw holes on the holder with the screw holes on the base and the screw holes on the bracket, then use the two screws (ø4X50) and nuts to fix the bracket, the base and holder to the proper location.

  • Page 10: Operation

    OPERATION LOCATION OF KEYS 1. DISP 2. AS/PS/ELAPSE / /MUTE 5. DISC SLOT 6. MODE 7. OPEN 8. LIQUIID CRYSTAL DISPLAY 9. PWR 10. SEL/MENU 11. VOL 12. VOL 13. SHIFT/SCAN/XM-MOD 14. M1~M6 Preset buttons 15. LOUD/DIM 16. CH 17. CH 18.

  • Page 11: General Operation

    OPERATION GENERAL OPERATION SWITHCHING ON/OFF THE UNIT Pressing PWR button (9) to switch on or turn off the unit. When system power turns on, the system is returned to previous mode. FACEPLATE RELEASE Press OPEN button (7) to slide down the removable faceplate.
  • Page 12 OPERATION “FREQ/CLOCK/NO PRI priority” mode. And then you can press VOL button (11) or VOL button (12) to select frequency priority or clock priority or no priority. - When select Frequency Priority: The frequency will appear on the unit all the while. Pressing DISP button (1) while in Frequency Priority will temporarily display clock and then returns to frequency display.

  • Page 13: Radio Operation

    OPERATION RADIO OPERATION SWITCHING TO RADIO MODE Press MODE button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. SELECTING THE FREQUENCY BAND At radio mode, press BAND/ENTER button (18) shortly to select the desired band.

  • Page 14: Cd Operation

    OPERATION STORING PRESET CHANNELS The preset buttons can be used to store channels for convenient access to your favorite channels. - Programming channels 1. Select the desired channel you want to store in memory. 2. Press and hold one of the preset buttons for more than 2 seconds until the corresponding preset button number appears.

  • Page 15: Cdc Operation

    OPERATION you select a track number that doesn’t belong to the current disc, “NO TR” will appear on the display. REPEATING THE SAME TRACK Hold press RPT button (21) for several seconds to continuously repeat the same track. Hold press it again to stop repeat. PLAYING ALL TRACKS IN RANDOM Hold press SHF button (22) for several seconds to play all tracks on CD in...
  • Page 16 OPERATION DIRECT TRACK ACCESS Pressing number buttons 0~9(14) (i.e. 19~28) can activate DIRECT TRACK ACCESS according to your need. For example, press button (19), and “T-01” will be flashing on the display. Then press button (20), “T-12” will appear and track 12 will be selected to play.

  • Page 17: Specification

    SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)

  • Page 18: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
