Case 445CT Repair Manual page 36

1. Coupler frame
2. Left handle
3. Right handle
4. Lube fitting
5. Wave spring
6. Retaining ring
7. Lock nut
TOOLS AND COUPLERS - COUPLING Mechanical coupling

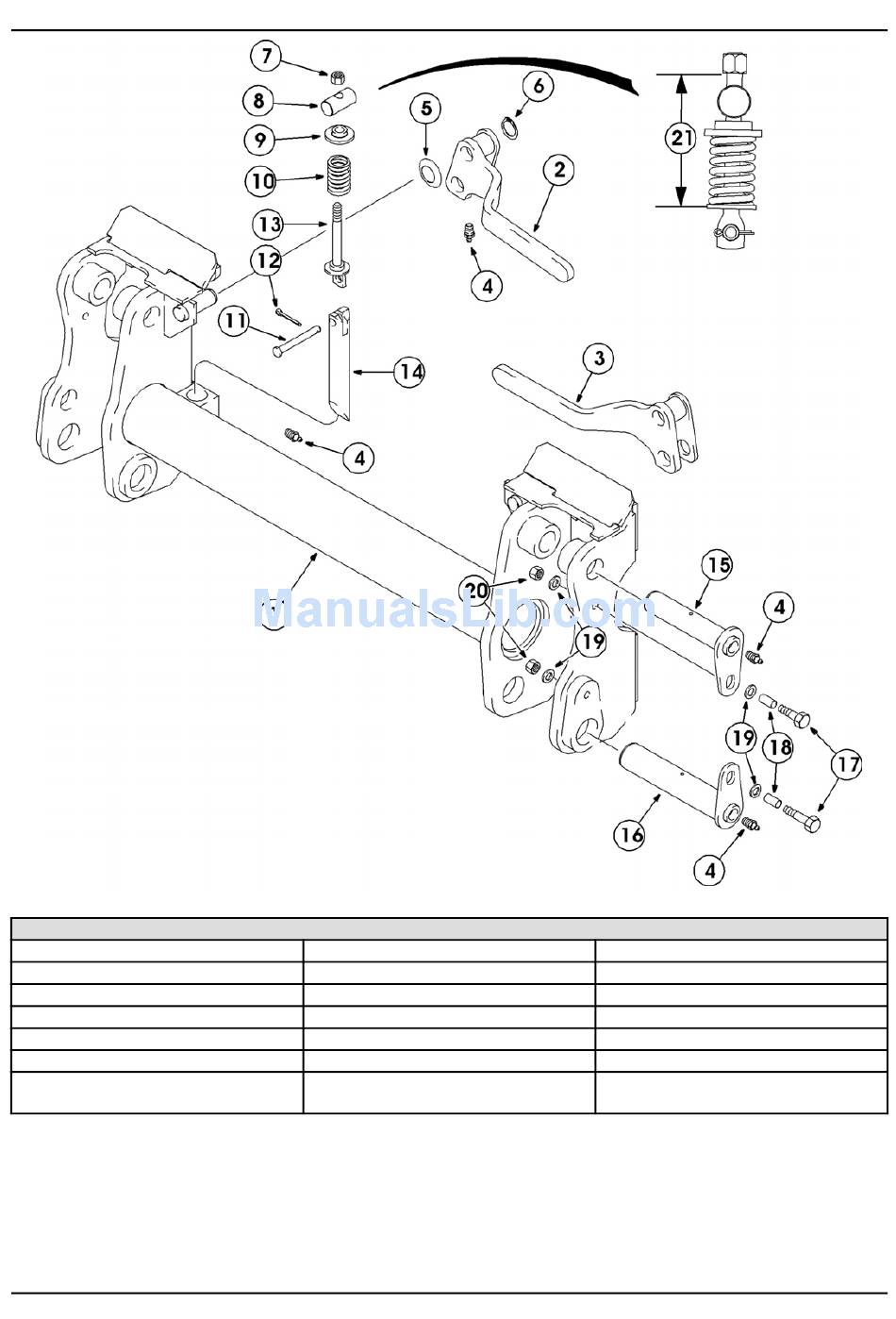

Exploded View of Mechanical Attachment Coupler
8. Trunnion
9. Spring guide
10. Compression spring
11. Clevis pin
12. Cotter pin
13. Link rod
14. Lock pin
1
BT97H016
1 04/05/2005
J.80.B / 6
15. Upper pin
16. Lower pin
17. Bolt
18. Spacer
19. Washer
20. Nut
21. Dimension 105.5 mm ± 1.5 mm
(4.04 inch ± .06 inch)
