Pentair FLECK 5800 LXT Service Manual

Downflow/upflow
Hide thumbs Also See for FLECK 5800 LXT:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
FLECK 5800 LXT DOWNFLOW/UPFLOW
SERVICE MANUAL
waterpurification.pentair.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLECK 5800 LXT and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair FLECK 5800 LXT

Summary of Contents for Pentair FLECK 5800 LXT

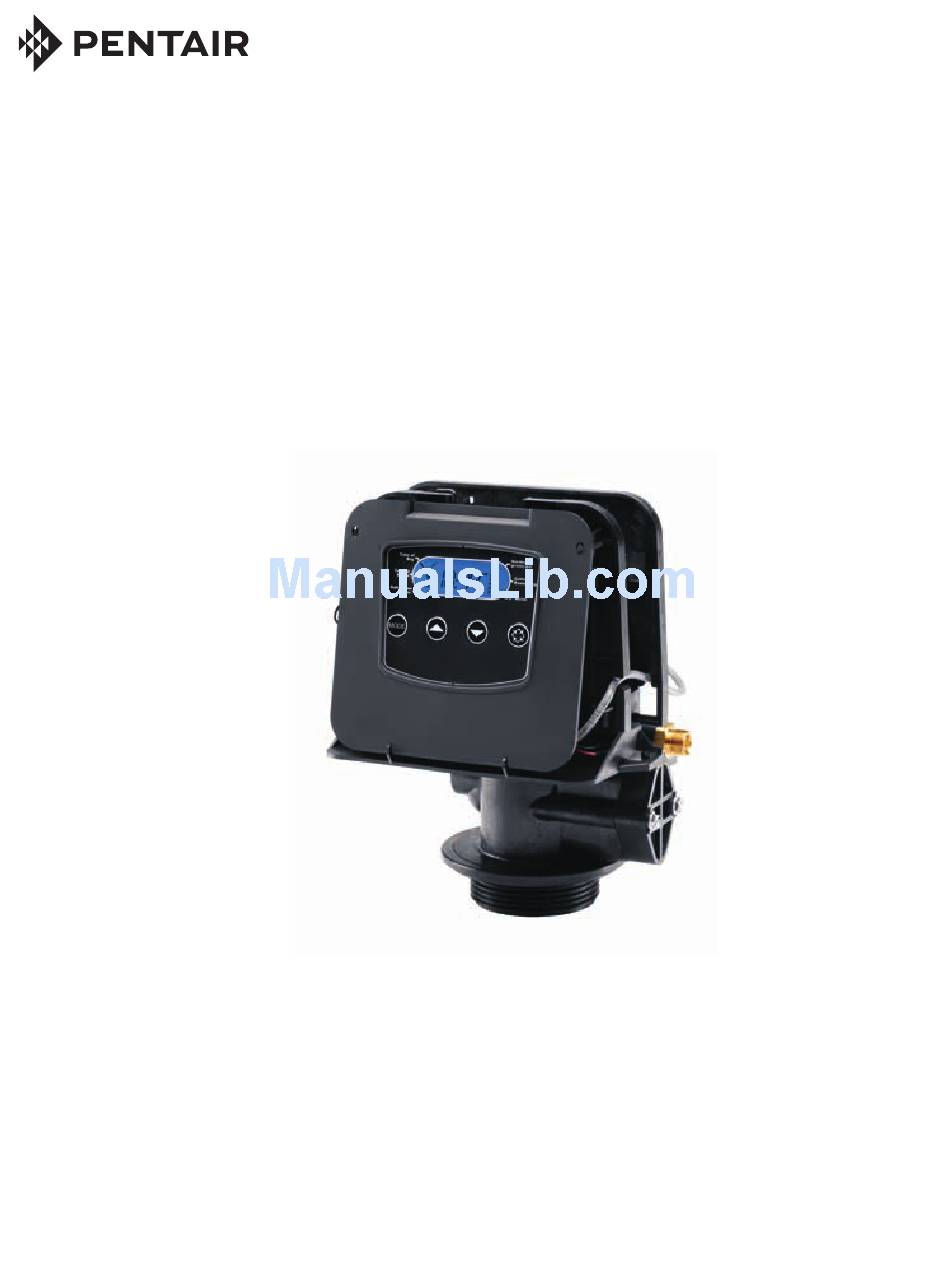

  • Page 1 FLECK 5800 LXT DOWNFLOW/UPFLOW SERVICE MANUAL waterpurification.pentair.com...

  • Page 2: Table Of Contents

    4. Drain Line Flow Control:_____________________________ gpm • Correct and constant voltage must be supplied to the controller to maintain proper function. 5. Brine Line Flow Control: ____________________________ gpm 6. Injector Size#: ________________________________________ 2 • FLECK 5800 LXT Upflow/Downflow...

  • Page 3: Installation

    7 gpm (26.5 Lpm) or drain line length in excess restored, the time setting must then be re-entered. of 20' (6 m) require 3/4" (19 mm) drain line. Commercial drain lines should be the same size as the drain line flow control. FLECK 5800 LXT Upflow/Downflow • 3...

  • Page 4: Start-Up Instructions

    1. Press the Extra Cycle button. The service icon will flash to indicate that a regeneration is queued. 2. To cancel a queued regeneration, press the Extra Cycle button. Regenerating Immediately Press and hold the Extra Cycle button for five seconds. 4 • FLECK 5800 LXT Upflow/Downflow...

  • Page 5: Control Operation

    Extra Cycle button. To clear a queued regeneration, press the Extra Cycle button again to cancel. If regeneration occurs for any reason prior to the delayed regeneration time, the manual regeneration request will be cleared. FLECK 5800 LXT Upflow/Downflow • 5...

  • Page 6: Master Programming Mode

    6. If you are just changing one program step, hold the Extra Cycle button until the Program icon disappears to save your changes. If you do not hold the Extra Cycle button until the Program icon disappears your changes will not be saved. 6 • FLECK 5800 LXT Upflow/Downflow...
  • Page 7 3. Hold the Extra Cycle button to save the day override setting. NOTE: If Day Override has a value other than zero, it will appear as a programming option when pressing the Mode button, and can be adjusted by holding the Up button. FLECK 5800 LXT Upflow/Downflow • 7...

  • Page 8: Viewing Diagnostic Data

    Displays the average water usage for day 5, in cubic meters. Displays the average water usage for day 6, in cubic meters. Displays the average water usage for day 7, in cubic meters. 8 • FLECK 5800 LXT Upflow/Downflow...

  • Page 9: Troubleshooting

    Valve has failed to find position in Unplug the unit and plug it back in. If error continues, call technical one minute. support. FSEr Finding Service Valve is looking for service. Allow valve to find position. FLECK 5800 LXT Upflow/Downflow • 9...

  • Page 10: Powerhead Assembly

    ......62085-06 ....Timer Assy, LXT, 5800, FLTR METER 5....1 ..61835 ....Motor Assembly 6....1 ..61882 ....Cover Assembly, Environmental 7....1 ..44161 ....Transformer 12V UL BR61882 Rev B 8....1 ..44162 ....Transformer, Intl, 12V UL 10 • FLECK 5800 LXT Upflow/Downflow...

  • Page 11: 5800 Control Valve Assembly

    If seal/spacer stack is stuck in valve bore during ..60705-06 ....DLFC, Plastic, 0.60 gpm disassembly, rotate stack prior to removal. CAUTION ..60705-08 ....DLFC, Plastic, 0.80 gpm ..60705-10 ....DLFC, Plastic, 1.0 gpm FLECK 5800 LXT Upflow/Downflow • 11...

  • Page 12: Meter Assembly - P/N 60626

    10 ....1 ..60040SS .....Bypass Valve, 5600, 3/4" NPT Black Grip Lever, SS ..60041SS .....Bypass Valve, 5600, 1" NPT Black Grip Lever, Stainless Steel Not Shown: 2 ..19228-01 ....Adapter Assy, Coupling, w/O-rings 12 • FLECK 5800 LXT Upflow/Downflow...

  • Page 13: Bypass Valve Assembly (Plastic)

    ..19620-01 ....Yoke Assy, 3/4", R/Angle, 90 Deg ..60002-26.25 ..Air Check, #500, 26.25" Long 6....1 ..60049 ....Bypass Plastic ..60002-33.25 ..Air Check, #500, 33.25" Long Not Shown: 2 ..19228-01 ....Adapter Assy, Coupling, w/O-rings FLECK 5800 LXT Upflow/Downflow • 13...

  • Page 14: Water Conditioner Flow Diagrams

    WATER CONDITIONER FLOW DIAGRAMS Downflow 1. Service Position 4. Rapid Rinse Position 5. Brine Tank Refill Position 2. Backwash Position 3. Brine/Slow Rinse Position 14 • FLECK 5800 LXT Upflow/Downflow...
  • Page 15 WATER CONDITIONER FLOW DIAGRAMS continued Upflow 1. Service Position 4. Rapid Rinse Position 2. Brine/Slow Rinse Position 5. Brine Tank Refill Position 3. Backwash Position FLECK 5800 LXT Upflow/Downflow • 15...

  • Page 16: Dimensional Drawings

    DIMENSIONAL DRAWINGS Measurements inches 12.7 53.8 111.3 2.12 4.38 91.4 3.60 182.9 7.20 26.7 DISTRIBUTOR TUBE OD 1.05 BR61500-5800LNE Rev A 16 • FLECK 5800 LXT Upflow/Downflow...

  • Page 17: Injector Flow Data

    INJECTOR FLOW DATA TR18755 Rev B FLECK 5800 LXT Upflow/Downflow • 17...

  • Page 18: Wiring Diagram

    LXT WIRING DIAGRAM 18 • FLECK 5800 LXT Upflow/Downflow...

  • Page 19: Transformer Port Location

    Transformer port location (plugging in transformer) When looking at valve from front, reach around back under cover on right hand side. Transformer port is located just past the cover’s snap feature. 44288 REV A FLECK 5800 LXT Upflow/Downflow • 19...
  • Page 20 P: 262.238.4400 | WATERPURIFICATION.PENTAIR.COM CUSTOMER CARE: 800.279.9404 | tech-support pentair.com For a detailed list of where Pentair trademarks are registered, please visit waterpurification.pentair.com. § Pentair trademarks and logos are owned by Pentair plc or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners.
