- Page 1 Ultimate Performance. Proven Technology. VECTOR LR Remote • • A D A R A S E R A F E T Y E M O T E E T E C T O R Advanced System PROTECTION ®®®® with Shadow Technology ®...
- Page 2 INTRODUCTION Thank you for purchasing a BELTRONICS Remote installation Radar/Laser/Safety detector. Your VECTOR LR Remote detector provides all the benefits of full coverage Radar and laser detection as well as detection of the Safety Warning System — all in the discretion of a concealed installation.
-
Page 3: Table Of Contents
Table of Contents Profile of Features ......Description of Features ..... . Power-on Test Sequence . -
Page 4: Profile Of Features

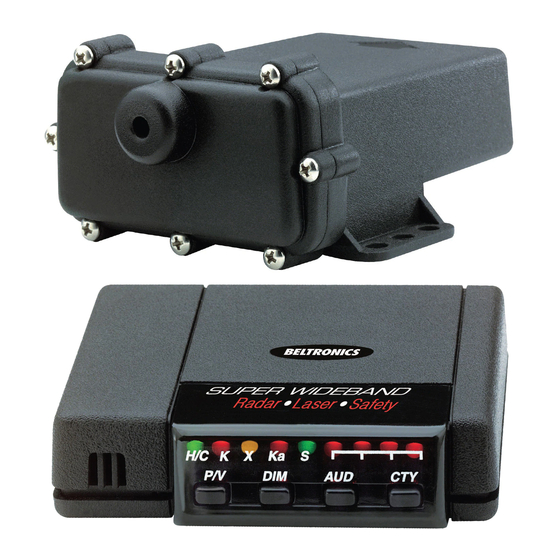

Profile of Features Remote Control Panel Unit : compact design fits discretely and easily in any vehicle. (Power) Button : pressing briefly will turn the unit . Pressing a second time will cancel the power-up test sequence. (Highway/City) Indicator : illuminates green for highway mode, and amber for the City X mode. -
Page 5: Description Of Features
X/K/Ka/sws Band Visual Alerts : the alert ™ received is confirmed by the illumination of the appropriate Four- Display s illuminate sequentially to confirm signal strength of Radar signals. A different alert pattern confirms detection of Laser and Safety ® Warning System ™... -
Page 6: Tutorial Mode
Set and Forget Memory Any time Remote is turned VECTOR LR feature settings you have selected are retained in the unit’s memory. Set and Forget Memory eliminates the need to reset your preferred feature settings each... -
Page 7: Audio/Visual Alert For Instant-On/Pulsed Radar
Audio/Visual Alert for Instant-On/Pulsed Radar This type of signal appears suddenly when a Radar unit is “triggered”. The instant-on or pulsed alert consists of an intense, three-second, X, K or Super Wideband Ka audio “burst”, coupled with the flashing of the four- display. -
Page 8: Cty (City/Highway) Button
(City/Highway) Button CITY The City X mode has been designed to effectively reduce unwanted audio alerts caused by intrusion alarms, door openers, and other devices which share X band with police Radar – without reducing sensitivity. Signals from non-police Radar sources are frequently encountered in urban and suburban areas, making use of this mode ideal in these areas. -
Page 9: Reset To Factory Settings
Once engaged, weak X, K or Super Wideband Ka signals encountered will produce no audible alerts until the signal strength reaches a preset level. Visual alerts are processed the instant an X, K or Super Wideband Ka signal is detected, keeping you quietly informed. Pressing a third time returns you to highway mode;... - Page 10 With Auto-Mute off, unit will provide a continuous series of X, K, Super Wideband Ka or Laser audio alerts. This standard setting is often preferred when background noise in a vehicle is loud. Factory setting is Auto-Mute off. Auto-Mute is confirmed by the FULL illumination of all 4 red s in the signal strength meter.
-
Page 11: Entering Selectable Features Mode
Ka Narrow Band (34.7 ) On/Off (LED#3) When activated, unit will detect ONLY the 34.7 segment of the Ka bandwidth. Ka Narrow Band (35.5 ) On/Off (LED#4) When activated, unit will detect ONLY the 35.5 segment of the Ka bandwidth. Note: Always operate your unit in Super Wideband Ka unless you are certain of a specific Ka Narrow band is used in your area of travel. -
Page 12: Understanding Radar, Laser And Sws
Wideband Ka: 34.2 to 35.2 . Once again, responded with Wideband Ka detection. Today, your Remote detects the entire Super VECTOR LR Wideband Ka frequency allotted for police monitoring – 33.4 to 36.0 , as well as four specific Ka narrow frequencies. -
Page 13: Interpretation Of Alerts
Safety Warning System ) – What is it? ™ ™ The Radio Association Defending Airwave Rights, Inc. ) conceived and developed the Safety R.A.D.A.R ™ Warning System . The concept behind this system is to warn motorists of potential road hazards by employing Safety Warning System transmitting devices in areas such as construction zones, accident ™... - Page 14 Since Radar signals travel in a straight line, this Radar encounter potentially offers maximum warning range. Once this signal is received, the initial warning consists of the X, K, or Super Wideband Ka audio and visual alerts and the simultaneous illumination of one or more of the s in the four- display.
- Page 15 3. Stationary Radar concealed by the crest of a hill aimed in your direction. Radar signals travel in a straight line and do not pass through earth. Consequently, police Radar aimed at the crest of a steep hill cannot be received until you are at or near the top.
-
Page 16: Typical False Alert
5. Instant-on/Pulsed Radar If you are the target vehicle, an alert caused by instant-on or pulsed Radar will be strong and immediate. When encountered, your unit responds with a three-second audio/visual warning. Typical False Alert (Radar) Ideally, a Radar detector should only alert in the presence of police Radar. -
Page 17: Safety Warning System
Due to these characteristics, all Laser alerts received from your unit should be taken seriously. Safety Warning System ® ™ ) Alerts With the Safety Warning System ™ feature and an transmitter in use, your detector will provide a ™ unique, three-second, two-tone “beep”... -
Page 18: Troubleshooting
2. The police Radar unit is positioned perpendicular to the road, around a curve, or just over the crest of a hill, thus, significantly reducing the reception range. 3. The highway traffic between your vehicle and the police Radar source is heavy, blocking or reflecting transmitted signals. -
Page 19: Consumer Warranty
BELTRONICS and components which are new or equivalent to new in accordance with industry standard practices. 3. The enforceability of this warranty is limited to the... -
Page 20: Service
In the event of a defect, malfunction or other failure to conform to this warranty, will, at its BELTRONICS sole discretion, repair or replace the unit at no charge. You are responsible for all shipping costs in connection with warranty service pursuant to this warranty. -
Page 21: Post-Warranty Service
1. To obtain service during the one-year warranty period, please call the appropriate number below to obtain a Return Authorization (RA) Number and the proper mailing address. Clearly mark the RA number on the exterior of a suitable mailing package before sending your detector, postage paid and insured. -
Page 22: Accessories
2.25” (L) x 2.0”(W) x .66” (H) (Control Panel) 2.62” (L) x 1.24”(W) x .72” (H) (Laser Sensors) BELTRONICS reserves the right to incorporate design improvements which may not be reflected in the specifications listed in this owner’s manual. Accessories... - Page 23 Rear Laser Sensor DA-91 5-R $50.00 $70.00 Front Laser Sensor DA-91 5-F $50.00 $70.00 Antenna Mounting Kit DA-82 $1300 $18.00 Antenna Reflector DA-83 $10.00 $14.00 Owner’s Manual Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment.
- Page 24 ® L.C.–Patents Pending , Fundamental Mixer Technology, FMT are registered trademarks of , Total Tracking Laser and are trademarks of BELTRONICS VECTOR LR BELTRONICS Safety Warning System and SWS are trademarks of Safety Warning System L.C. Printed in Canada 273004-08...
