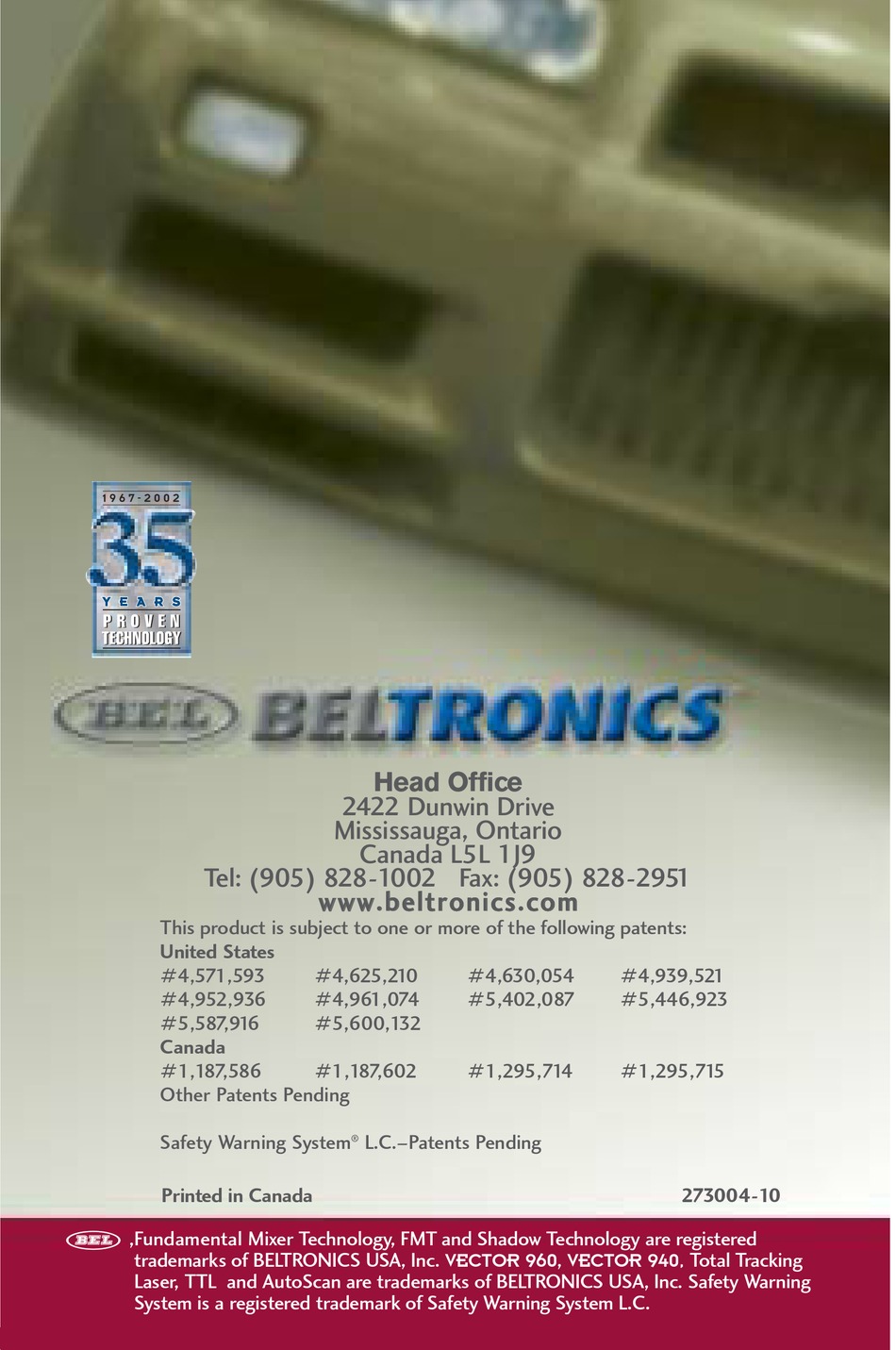

Tel: (905) 828-1002 Fax: (905) 828-2951
This product is subject to one or more of the following patents:
United States
#4,571,593
#4,952,936
#5,587,916
Canada
#1,187,586
Other Patents Pending
Safety Warning System
Printed in Canada
,Fundamental Mixer Technology, FMT and Shadow Technology are registered
trademarks of BELTRONICS USA, Inc. VECTOR 960, VECTOR 940, Total Tracking
Laser, TTL and AutoScan are trademarks of BELTRONICS USA, Inc. Safety Warning
System is a registered trademark of Safety Warning System L.C.
Head Office
2422 Dunwin Drive
Mississauga, Ontario
Canada L5L 1J9
w w w w w w . . b b e e l l t t r r o o n n i i c c s s . . c c o o m m
#4,625,210
#4,630,054
#4,961,074
#5,402,087
#5,600,132
#1,187,602
#1,295,714
®
L.C.–Patents Pending
#4,939,521
#5,446,923
#1,295,715
273004-10
Advertisement
Table of Contents
Related Manuals for Beltronics V960/V940
Summary of Contents for Beltronics V960/V940
- Page 1 ,Fundamental Mixer Technology, FMT and Shadow Technology are registered trademarks of BELTRONICS USA, Inc. VECTOR 960, VECTOR 940, Total Tracking Laser, TTL and AutoScan are trademarks of BELTRONICS USA, Inc. Safety Warning System is a registered trademark of Safety Warning System L.C.
- Page 2 VECTOR 960 VECTOR 960 VECTOR 940 VECTOR 940 THE NEXT GENERATION IN DIGITAL PERFORMANCE THE NEXT GENERATION IN DIGITAL PERFORMANCE Operating Instructions Model V960 MOTOROLA MOTOROLA MOTOROLA digitaldna Model V940...
-
Page 3: Selectable Features
Remember, owning a Radar detector does not give you a license to speed. Alerts from a Radar detector serve as an effective reminder to check your speed. Laws vary throughout the USA governing the use of a Radar detector. - Page 4 VECTOR 960 and VECTOR 940 Includes 16 Driver Selectable Features Features. Driver Selectable Features allow you to “customize” how alerts will be presented to you. 5 Operating Modes Operating Modes Normal Mode VECTOR 960 Modifications Mode Operating Modes VECTOR 940 Quick-Start Tech Mode .
-
Page 5: Table Of Contents
Table of Contents Profile of Features ......Getting Started ......Power-Up Test Sequence/Start-Up Mode . -
Page 6: Profile Of Features
Profile of Features PWR (Power/Start-Up Mode) pressing and holding PWR will turn the unit on. Continuing to press the PWR button will scroll through the start-up mode options: (Modifications), (Model V960 only) plus Text Message Display selections (i.e. ) and confirms Radar band and signal A A U U T T O O M M U U T T E E strength, presence of Laser and SWS received. -
Page 7: Getting Started
Laser Optical Sensors front and behind. Audio Alert Speaker Voice Messages are emitted from this location. Power Jack VECTOR 960 and VECTOR 940 operate in any vehicle with a 13.8 volt DC negative ground system 15.5 volt range) Getting Started Power-Up Test Sequence/Start-Up Mode Using the supplied straight or coiled power cord, place the end with the “elbow”... - Page 8 state each time unit is turned on. Unit is ready for operation and will display Radar, Laser and SWS messages when signals are detected. Q Q - - S S T T A A R R T T (Quick-Start Mode) Unit will bypass the power up test sequence and will display the last selected traveling mode:“...
-
Page 9: Tutorial Mode
Whichever Operating mode you select, VECTOR 960 and VECTOR 940 will be in standby mode and ready to detect traffic Radar, Laser and SWS will show “ A A u u t t o o S S c c a a n n for ALL driving conditions, unless you change this to “... -
Page 10: Set And Forget Memory
To exit Tutorial Mode, press the PWR button and your unit will be on and ready to receive signals. Set and Forget Memory Any time your unit is turned off or unplugged from the cigarette lighter socket, all feature settings you have selected are retained in the unit’s memory. -
Page 11: Volume Control
AUD (Auto-Mute/Volume Control) Button Manual Muting of Audio Alerts (Radar and SWS Whether Auto-Mute is selected on or off in Selectable Features, the audio alerts can be completely muted by pressing the AUD button during an alert. The display will briefly show long as the signal is present. - Page 12 false signals which are shared with traffic Radar on X and K Bands such as door openers and security systems. AutoScan optimum signal selectivity. Highway: Select Highway mode when traveling in rural or highway environments for maximum X, K, Super Wideband Ka sensitivity.
- Page 13 Description of Selectable Features There are a total of 1 1 Driver Selectable Features for VECTOR 960 and 9 Driver Selectable Features for VECTOR 940. These features may be selected depending upon your driving environment and preference. 1. AutoMute ON or OFF 2.
- Page 14 Feature 1 – AutoMute On or Off With “ A A m m u u t t e e o o n n X, K or Super Wideband Ka audio alerts followed by the Digital Voice announcement of the signal detected.
- Page 15 Feature 4 – Safety Warning System (Model V960) When “ S S W W S S v v o o i i c c e e Digital Voice announcements when SWS are detected. Factory setting is “ “ ” is selected, Digital Voice is replaced by S S W W S S t t o o n n e e tone/clicking only.
-
Page 16: Entering Selectable Features Mode
Entering Selectable Features Mode 1. With the unit OFF, press and hold the PWR and CTY buttons simultaneously. The word “ appear in the display, followed by the status of the first Selectable Feature. 2. Press the AUD button to make your selection. 3. - Page 17 Consider occupant safety when selecting a mounting location. Choose a location where the unit will not be hazardous in case of an accident. For optimum detection, position your unit with a clear, unobstructed view of the road from the front and rear. Do not allow the unit to make contact with the windshield.
-
Page 18: Visor Mounting
To adjust the angle of the bracket, squeeze and hold the circular “buttons” on the sides of the bracket; this will allow you to angle the bracket to your windshield. Note—some vehicles have a plastic coating on the inside of the windshield designed to protect occupants in case of an accident. -
Page 19: Understanding Radar, Laser And Sws
In 1987, FCC approval was given for Radar equipment using a third frequency, Ka. In response to this, BELTRONICS introduced the first Radar detectors capable of detecting X, K and Ka Band signals. In late 1990, FCC approval was given to Wideband Ka: 34.2 GHz to 35.2 GHz. -
Page 20: Interpretation Of Alerts
Safety Warning System The Radio Association Defending Airwave Rights, Inc. (R.A.D.A.R.) conceived and developed the Safety Warning System to warn motorists of potential road hazards by employing Safety Warning System areas such as construction zones, accident sites and detours. These SWS the 24 GHz portion of the K band frequency, and broadcast uniquely coded signals that are detected by your unit. - Page 21 alert coupled with simultaneous identification of the Radar band (X, K or Ka) and signal strength in the Text Display. The number of bar graph segments displayed depends upon the strength of the signal received. As the strength of the Radar signal increases, the audio alert becomes more rapid and the bar graph will display the maximum number of five segments indicating maximum signal strength.
- Page 22 Stationary Radar concealed by the crest of a hill aimed in your direction Radar signals travel in a straight line and do not pass through earth. Consequently, police Radar aimed at the crest of a steep hill cannot be received until you are at or near the top.
-
Page 23: Instant-On/Pulsed Radar Alert
Instant-on/pulsed alert to Ka band K K a a 9 9 Typical False Alert (Radar) Ideally, a Radar detector should only alert in the presence of police Radar. However, because other devices share X band with police Radar, false alerts sometimes occur. -
Page 24: Safety Warning System ® (Sws ™ ) Alerts
greater the displacement of the beam and the shorter the dwell time of the beam at the target point. Therefore, there is the possibility of receiving only a few Laser pulses. Due to these characteristics, all Laser alerts should be taken seriously. Safety Warning System With the Safety Warning System ™... - Page 25 Abbreviated SWS “ ” H H w w y y W W o o r r k k confirms Highway Construction/Maintenance (messages 1–1 1) “ ” H H a a z z d d Z Z o o n n e e confirms Highway Hazard Zone Advisory (messages 13–31) “...
-
Page 26: Performance Verification
Performance Verification Conditions that Affect Radar Alerts If you feel your unit is not alerting properly, keep in mind that there are many conditions that influence the intensity or duration of an alert: The police are using instant-on/pulsed Radar, in which case no signal is transmitted until visual contact has been made with your vehicle. -
Page 27: Troubleshooting
Troubleshooting Solutions for Common Problems If your unit is not operating properly, please refer to the outline below. Problem Unit not receiving power “Poor detection range” Erratic or frequent alerts sources Partial or no display Possible Cause Plug not properly inserted Fuse in power cord is defective Lighter socket not clean... -
Page 28: Limited Warranty
In the event of a defect, malfunction or other failure to conform to this warranty, BELTRONICS will, at its sole discretion, repair or replace the unit at no charge. You are responsible for all shipping costs in connection with warranty service pursuant to this warranty. -
Page 29: Service
BELTRONICS will in no event be liable for any consequential, incidental, indirect or special damages (including, but not limited to, lost profits) arising out of or in connection with the use, misuse, or function of the unit. Some states do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. -
Page 30: Post Warranty Service
Enclose with your unit the following information: (a) Your name, complete return address and written description of the problem. (b) A telephone number where you can be reached during regular business hours. (c) A copy of your dated sales receipt. Post-Warranty Service The following arrangements apply if the warranty period has expired or you are not able to provide a... -
Page 31: Accessories
Accessories If you require any additional accessories, replacement accessories or any accessory which is not included with your unit, call to order or for more information: Monday to Friday, 8:30 am–4:30 pm est. 1-800-341-2288 USA 1-800-268-3994 CANADA DESCRIPTION •Suction Cup Kit (2) •Straight Power Cord (12') DA-16 •Coiled Power Cord (8') •Power Cord Fuses (2) - Page 32 Notes...
