Summary of Contents for AEMC L452

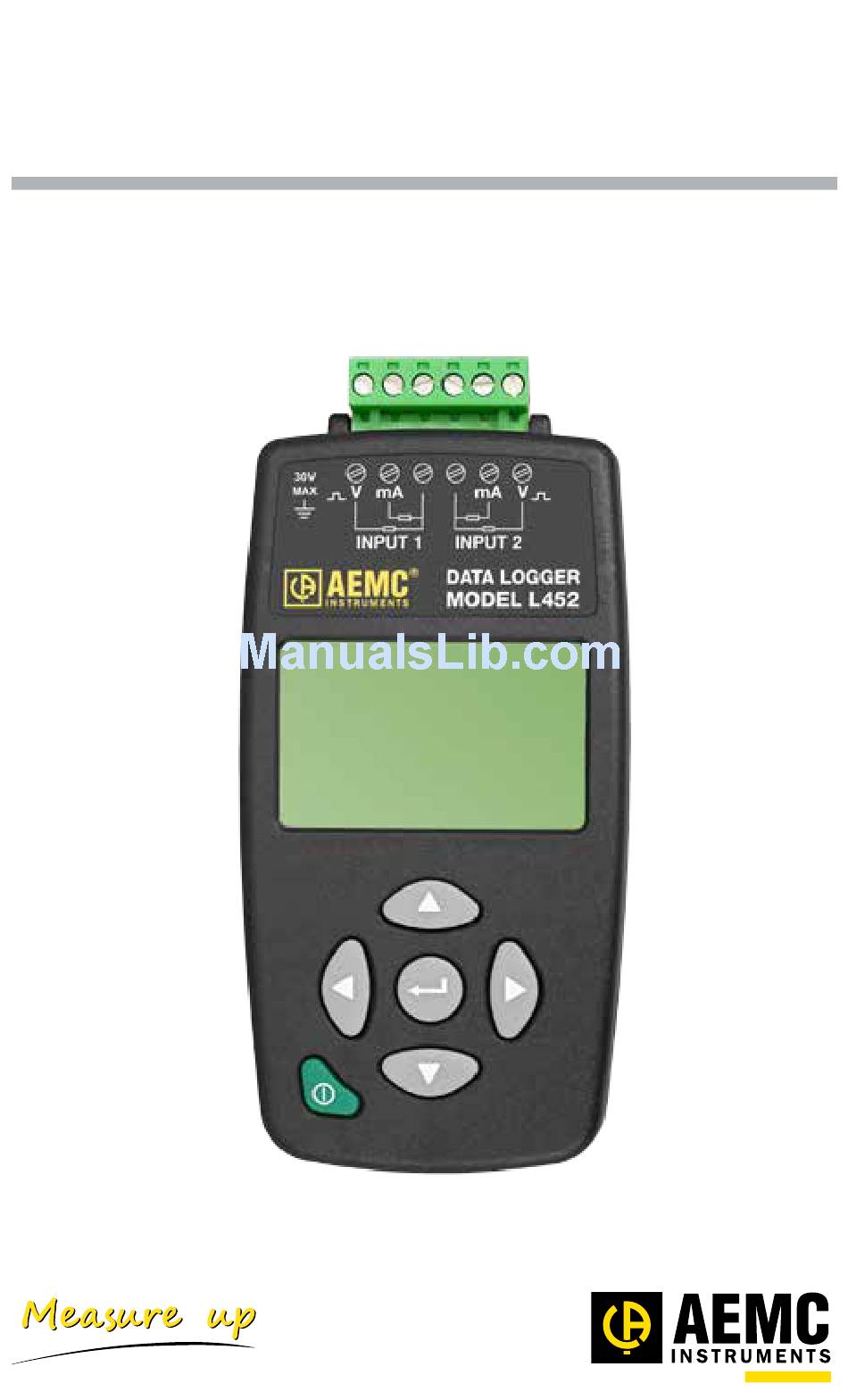

- Page 1 Data Logger Model L452 Quick Start Guide ENGLISH ® www.aemc.com CHAUVIN ARNOUX GROUP...
-
Page 2: Statement Of Compliance
The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2153.51 Model #: L452... -
Page 3: Product Packaging
PRODUCT PACKAGING US 120V Wall Plug to USB Cat. #2153.78 Data Logger Model L452 Cat. #2153.51 Cable - 6 ft USB Cat. #2138.66 Also Included: (1) USB Stick with User Manual & DataView Software ®... - Page 4 Before using your Data Logger Model L452 for the first time, please take a moment to review the following. Signifies that the instrument is protected by double or reinforced insula- tion. CAUTION - Risk of Danger! Indicates a WARNING that the operator must refer to the User Manual for instructions before operating the instrument in all cases where this symbol is marked.
-
Page 5: Precautions Before Use
Precautions Before Use These warnings are provided to ensure the safety of personnel. Please read and comply with these precautions. This instrument complies with safety standard EN 61010-1 (Ed 3) and IEC 61010.2- 030 (Ed 1) for voltages and categories of installation, at an altitude below 2000m (6562 ft) and indoors, with a degree of pollution at most equal to 2. -
Page 6: Installing Batteries
NOTE: If the Model L452 is stored without the batteries installed, the internal clock will need to be reset, as instructed in the following section. - Page 7 Help system. Use the Contents window in the Help system to locate and open the topic “Connecting to an Instrument,” which describes how to connect the Model L452 to the computer. When the instrument is connected, its name appears under the Data Logger Network in the...
- Page 8 With Bluetooth enabled and configured on the instrument, you can connect to the computer. These steps assume the instrument has not been previously connected via Bluetooth: Open the Bluetooth Devices dialog on your computer to pair the Model L452 with your computer. Different operating systems have different steps for opening this dialog, so consult your computer’s documentation for instructions.
- Page 9 Press the Help button at the bottom of the dialog box for instructions. Setup via the Model L452 User Interface In addition to enabling/disabling and configuring Bluetooth, the following configuration parameters can be set through the instrument’s front panel interface: •...
-
Page 10: Channel Configuration
• Consult the Data Logger Control Panel Help system for information about configuration through the Control Panel. • Consult “L452 User Interface Screens” later in this Quick Start Guide for a table listing all configuration screens available through the user interface. For detailed instructions about how to complete these screens, see the Model L452 User Manual. -
Page 11: Recording Data
To see this screen, display the “home” (Channel 1 & 2 Measurement Data) screen and press ►. Consult the Model L452 User Manual for detailed information about configuring recording sessions. Starting a Recording Session You can start a configured recording session immediately, or schedule one for a later date and time. -
Page 12: Scheduling A Recording Session
This icon appears an empty circle. You can turn OFF the Model L452 with a scheduled recording pending. When the start date and time occurs, the instrument will turn... - Page 13 L452 User Interface Screens The primary interface for working with the Model L452 consists of configuration and display screens. These screens appear in the instrument’s front-panel LCD. The instrument’s but- tons enable you to navigate these screens, select options, and enter information.
- Page 14 Measurement Recording Channel 1 Channel 2 Instrument Instrument Data Configuration Configuration Configuration Information Channels Start/Stop/ Enabled/ Enabled/ Language and Model 1 & 2 Schedule/ Disabled and Disabled and Date/Time Number, Measurement Cancel a Input Type Input Type Format Serial Data Recording, Number, and (“Home”...
-
Page 15: Repair And Calibration
N.I.S.T. (includes calibration certificate plus re- corded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. - Page 16 06/17 99-MAN 100423 v4 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
