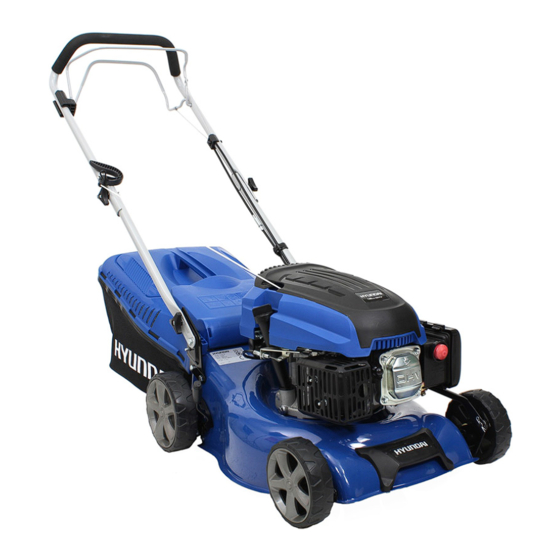

Summary of Contents for Hyundai HYM430SP

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 PART LOCATIONS QUICK START GUIDE 9 - 15 STARTING PROCEDURE 15 - 16 STOPPING PROCEDURE USING THE MACHINE 17 - 18 MAINTENANCE 18 - 22 TROUBLESHOOTING SPECIFICATION RECYCLING DECLARATION OF CONFORMITY CONTACT DETAILS WARRANTY...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls. 1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
  • Page 7 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.

  • Page 8: Part Locations

    2. PART LOCATIONS Drive Control Lever Handlebar Operator Presence Control Lever Quick Release Hand Wheel Fuel Filler Cap Air Filter Primer Bulb Spark Plug Exhaust Side Discharge Chute* Oil Filler/Dipstick Central Cutting Height Adjuster Grass Collector Recoil Starter Handle * Not Available On All Models...

  • Page 9: Quick Start Guide

    3. QUICK START GUIDE CAUTION This guide is meant to serve as a quick reference for operating your Hyundai Lawn Mower. We always advise reading the manual in full before operation. CAUTION For OUTDOOR use ONLY. Petrol lawnmowers produce carbon monoxide – a poisonous, colourless and odourless gas that can cause serious injury or death.
  • Page 10 Attach the base of the handle to the mower (4) and tighten bolts securely. Attach the upper handle to the lower handle (5) and tighten bolts securely. Slowly pull the recoil cord and thread it through the cord loop (6). Remove the oil filler cap (7) and fill with fresh 15W-40 engine oil to the upper mark (8) on the dipstick.
  • Page 11 Remove the fuel tank cap (9). 2.10 Fill the fuel tank with fresh straight unleaded petrol. Allow a 25mm gap from the top of the tank, then refit the cap securely. 2.11 DO NOT mix petrol with oil and clean up any spills immediately. MULCHING MODE 2.12 For mulching mode, lift the rear flap and remove the grass box (1).
  • Page 12 CABLE ATTACHMENT NOTE If you are stood behind the lawn mower: OPC Cable: This attaches to the lever in front of the main handlebar and if followed, will attach to the engine. Drive Cable: This attaches to the lever behind the main handlebar and if followed, will enter the deck of the lawn mower behind the engine.
  • Page 13 2.22 Refit the lever back into its location hole on the main handlebar (5). 2.23 Check the cable lies flat and has not snagged on any other part of the lawnmower (6). OPC CABLE ADJUSTMENT NOTE It is necessary as part of routine maintenance to adjust the OPC cable tension to ensure the lawnmower will start correctly.
  • Page 14 2.28 Once the movement has been removed, hold the adjustment nut in place and tighten the lock nut back towards the adjustment lever to lock the cable in place (4). 2.29 Check the cable adjustment has worked by starting the mower. If the mower still fails to start, re-adjust until the lawnmower starts.

  • Page 15: Starting Procedure

    2.34 Tighten the lock nut finger tight, back towards the adjuster nut and check for drive on the lawn mower. Once drive is restored, tighten the lock nut securely (4). 4. STARTING PROCEDURE NOTE You MUST ensure the mower has the correct oil and fuel level before operation. From cold, pump the primer bulb (1) 5 times.

  • Page 16: Stopping Procedure

    5. STOPPING PROCEDURE CAUTION The engine and exhaust will remain hot for a while after use. Ensure the engine and exhaust have cooled before carrying out any maintenance or storage. Before stopping the machine, you must allow the engine to idle for 30 seconds. Release the OPC Lever (1) and the engine will stop.

  • Page 17: Using The Machine

    6. USING THE MACHINE Always use the lawnmower with the grass catcher, or rear deflector in position. Stop the engine before emptying the grass catcher or before you change the cutting height. Never put feet or hands near the mower when running. Before mowing, remove all foreign objects from the lawn, which may cause injury or damage.

  • Page 18: Maintenance

    5.18 Start the engine carefully according to instructions and with feet well away from the blade. 5.19 Do not tilt the lawn mower when starting the engine. 5.20 Do not put hands or feet near or under rotating parts. 5.21 Never pick up or carry a lawn mower while the engine is running.
  • Page 19 THE BLADE The blade. You MUST wear gloves to protect your hands from being cut when working with the blade. The blade is made of pressed steel, in order to obtain a good cut, sharpen the blade frequently, typically around every 25 hours of work. Following blade sharpening you must make sure that the blade is always well balanced.
  • Page 20 0.028” to 0.031” 0.70mm to 0.80mm Refit the cleaned and adjusted spark plug by hand to avoid cross-threading. 6.10 After spark plug seats then tighten as necessary but avoid over-tightening. 6.11 Re-attach the spark plug cap. AIR FILTER CAUTION A dirty air filter will restrict the air flow to the carburetor, which will reduce engine efficiency.
  • Page 21 6.14 Clean the filter by blowing air through it using an air gun not exceeding 30psi. 6.15 Also clean the foam pre-filter (3). Wash in detergent and let dry. 6.16 Never use a brush to clean the filter it will only drive dirt into the fibres of the filter. 6.17 Wipe dirt from the air cleaner body by using a moist rag, be careful to prevent dirt or debris entering in to the carburetor.
  • Page 22 CLEANING CAUTION DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. 6.23 Wipe the deck with a dry cloth. 6.24 You can hose under deck by tilting the mower. Make sure you tilt the machine so that the air filter is facing up.

  • Page 23: Troubleshooting

    8. TROUBLE SHOOTING NOTE Where necessary, all corrective actions should be carried out by suitably qualified persons. If the starter rope becomes disconnected from the rope guide on handle, disconnect the spark plug cap. Pull the starter rope out from engine slowly and re-engage in guide. Re connect spark plug cap.

  • Page 24: Specification

    9. SPECIFICATION MODEL HYM430SP HYM460SP HYM510SP Engine Type IC140V IC140V IC175V Engine Size – cc Fuel Tank Capacity Straight – Unleaded Petrol Fuel Type Oil Capacity – ml Rated Speed – rpm 3000 3000 3000 Rated Power – kw Self-propelled 4...

  • Page 25: Recycling

    10. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 26: Declaration Of Conformity

    11. DECLARATION OF CONFORMITY Genpower Ltd confirms that these Hyundai products conform to the following CE Directives. 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC, Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:...

  • Page 27: Contact Details

    12. CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire. SA72 4RW. UK. TELEPHONE +44 (0) 1646 687880 +44 (0) 0164 686198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.hyundaipowerequipment.co.uk 13. WARRANTY To register your machine for the manufacturer’s warranty, please visit: https://www.hyundaipowerequipment.co.uk/warranty MANUAL UPDATES 10.0...

This manual is also suitable for:

Hym460spHym510sp
