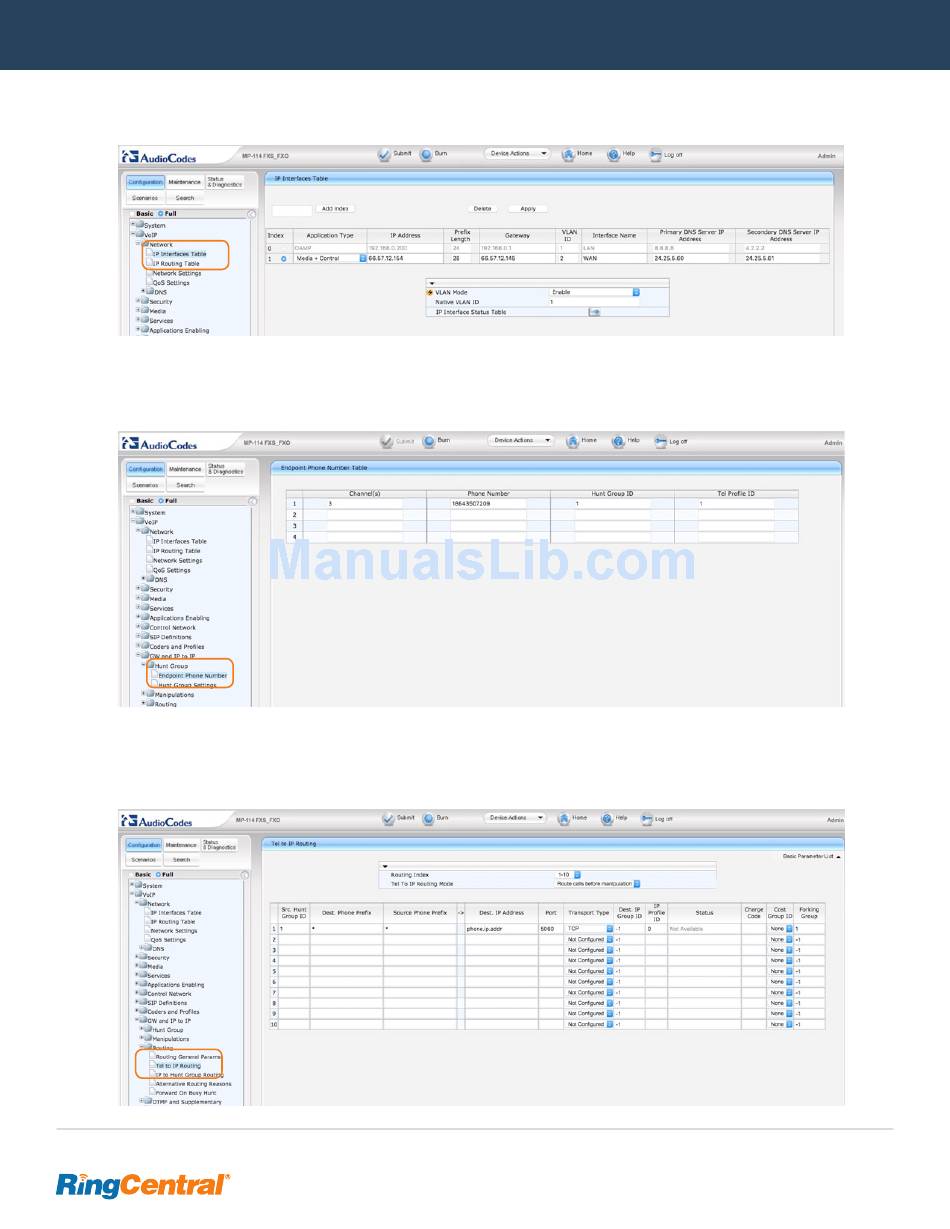

• Navigate to VoIP / Network / IP Interfaces Table and set Index 0 to inside interface addressing; there is no need for an outside interface.
• Navigate to VoIP / GW and IP to IP / Hunt Group / Endpoint Phone Number to set phone number of FXO line and the channel
assignment of the FXO port on the back of the device.
• Navigate to VoIP / GW and IP to IP / Routing / Tel to IP Routing and set up one row for each phone that should ring for incoming calls on
the FXO line (transport type should be TCP and port number should match local SIP port). Be sure to enter the forking group "1" for each
entry so that all phones will ring simultaneously for 911 callback.
***For this MP114, there are 2 FXS ports (1, 2) and 2 FXO ports (3, 4)***
»
