RingCentral
Datasheet | AudioCodes Gateway Configuration Guide
®
AudioCodes Gateway
Configuration Guide
Provisioning
The Emergency Survivability Failover Configuration is available with AudioCodes' analog gateways
MediaPack 114 and 118. AudioCodes offers these models with the FXO port necessary for connecting the
analog POTS line.

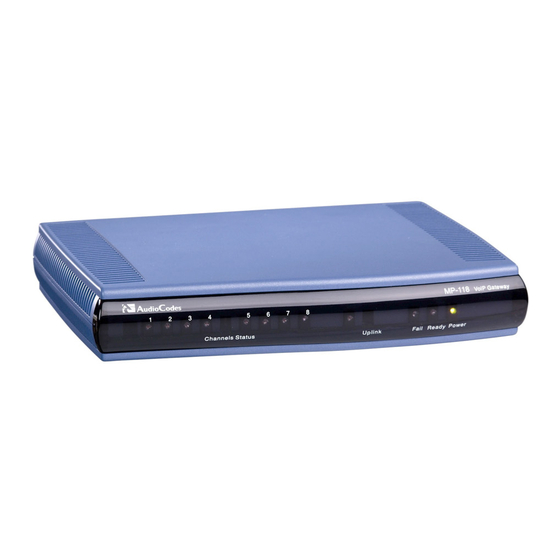

The AudioCodes analog gateway MediaPack 114 or 118 connects to the POTS line from the telco provider on
its FXO port. The gateway is deployed in the customer LAN granting access to the Polycom VVX phones that
will be using the gateway for emergency survivability. The AudioCodes gateway must be configured either
using a configuration file or using the gateway's element manager.
The details of the AudioCodes MediaPack gateways are available here.
Gateway configuration
The gateway must be configured manually by loading a prepared configuration file on the gateway's element
manager or configured directly using the element manager GUI.
These are the steps for configuring the MediaPack 114 Gateway using the element manager GUI. Similar
steps are applicable for MediaPack 118.
Advertisement
Table of Contents
Related Manuals for AudioCodes MediaPack 114
Summary of Contents for AudioCodes MediaPack 114
-
Page 1: Gateway Configuration
POTS line. The AudioCodes analog gateway MediaPack 114 or 118 connects to the POTS line from the telco provider on its FXO port. The gateway is deployed in the customer LAN granting access to the Polycom VVX phones that will be using the gateway for emergency survivability. - Page 2 RingCentral Datasheet | AudioCodes Gateway Configuration Guide ® Data required • Inside IP address for mp114—mp114.ip.addr • Phone number for external FXO line • Inside IP addresses of all phones involved—phone.ip.addr NOTE: IP address of the Polycom VVX phones should be static so that the gateways can be configured with the phone IP address for the connections.
- Page 3 RingCentral Datasheet | AudioCodes Gateway Configuration Guide ® • Navigate to VoIP / Network / IP Interfaces Table and set Index 0 to inside interface addressing; there is no need for an outside interface. • Navigate to VoIP / GW and IP to IP / Hunt Group / Endpoint Phone Number to set phone number of FXO line and the channel assignment of the FXO port on the back of the device.
- Page 4 RingCentral Datasheet | AudioCodes Gateway Configuration Guide ® • Navigate to VoIP / GW and IP to IP / Routing / IP to Hunt Group Routing and set up row 1 as shown. You can restrict outbound to FXO to only allow 911 by replacing “*” in the Dest. Phone Prefix table to 911 or any variation of patterns you want to allow versus “*” for all destinations, depending on your needs.
- Page 5 ® • Navigate to VoIP / SAS / Stand Alone Survivability and set as shown. It is important that you use ports 5070 for SAS. For assistance with gateway deployment, installation, and/or configuration, please contact AudioCodes directly. Email: support@audiocodes.com North America: +1-732-652-1085, +1-800-735-4588 RingCentral, Inc.
