VG3.290 D
VG3.360 D
Operating instructions
For specialist installation engineers
Gas burners ........................................... 2-28
de, fr..................................... 4200 1021 2101
it, nl ...................................... 4200 1021 2201
............................................. 4200 1021 2002
02/2011 - Art. Nr. 4200 1027 9501B
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VG3.290 D and is the answer not in the manual?

Questions and answers

Farid
January 22, 2025

Manuel de regulateur de puissance

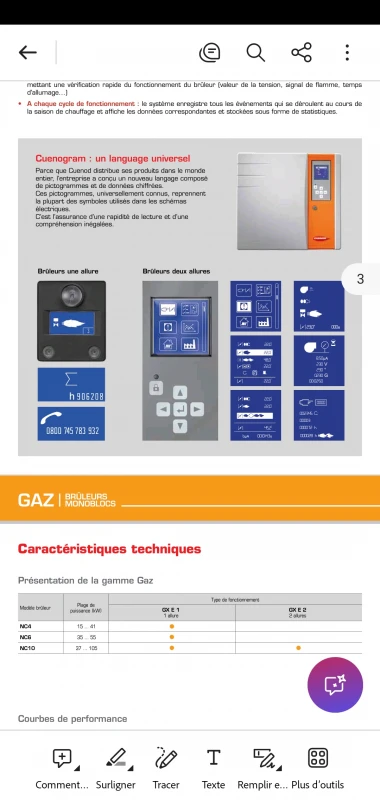

User image 67909589d4fdd
1 comments:
Mr. Anderson
May 14, 2025

The power regulator manual for the Elco VG3.290 D includes instructions for adjusting the MB-ZRDLE gas train and air regulation. It provides guidance on:

- Setting the pressure switch (initially set to 1 mbar)
- Adjusting combustion air on the pressure side using screw A to control the gap between the baffle plate and burner tube
- Regulating air on the vacuum side using an air flap driven by servomotor Y10
- Adjusting dimension Y according to the settings table
- General adjustment of the gas train regulator
- Pre-adjustment without flame and setting the flame
- Saving adjustment values

These procedures ensure proper combustion and burner operation.
