- Page 1 Version 1...
- Page 2 Features 1. AM/FM 2 bands radio receiver 2. FM-stereo via earphones ( not included ) 3. Rugged and water-resistant 4. Soft and bendable spring antenna 5. Two heavy-magnet 3 inches speakers create excellent sound 6. Precision tuning 7. Tuning LED indicator 8.

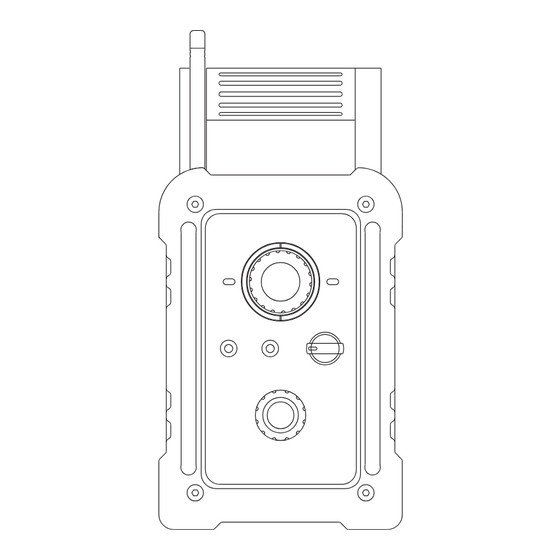

- Page 4 Controls Tuning Control Power and AM/FM band selector Volume Control Low battery LED indicator Tuning LED indicator Earphones jack DC input socket Battery Compartment Cover Compartment fixture Carry Handle Soft spring antenna for FM band Speaker Speaker...
-
Page 5: Installing Batteries
Installing Batteries 1. Unscrew the compartment fixture with a tool, lift up the battery compartment cover located on the rear of your Utility Radio. 2. Insert four C sizes (UM-2) battery into the compartment. Ensure that battery is inserted in accordance with the diagram shown. - Page 6 AC adaptor ( included ) The AC adaptor for use with the Utility Radio provides 6V DC output at 1 ampere center pin positive. Remove the rubber sheet which covers both the DC socket and earphones jack, insert the adaptor plug into the DC socket of the radio.
- Page 7 Operating your radio AM (MW) 1. Turn on your radio by switching the Power knob to AM position. 2. Rotate the Tuning Control to select the desired station. On AM, the tuning scale is marked in kHz (Kilohertz). The tuning LED will be lighted on, if the radio station has been correctly tuned.
-
Page 8: Specifications
Rugged and water-resistant device Your Utility Radio is particularly designed and capable for outdoors use. It meets JIS 4 ( Japanese Industry Standard ) water-resistant standard. Its ultra rugged device prevents possible damages from accidental drop. Specifications Frequency range: AM 522 - 1710 kHz FM 87.5 - 108 MHz Battery: 4 x C sizes (UM-2) Battery life: Approx.
