  • Page 1 Version 1...
  • Page 2 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SANGEAN ELECTRONICS INC. is under license.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS . Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 4 . Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
  • Page 5 9. The power plug should be close to the radio, and easy to be approached that during the emergency, to disconnect the power from the radio, just unplug the power plug from the AC power slot. 20. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnected device shall remain readily operable.

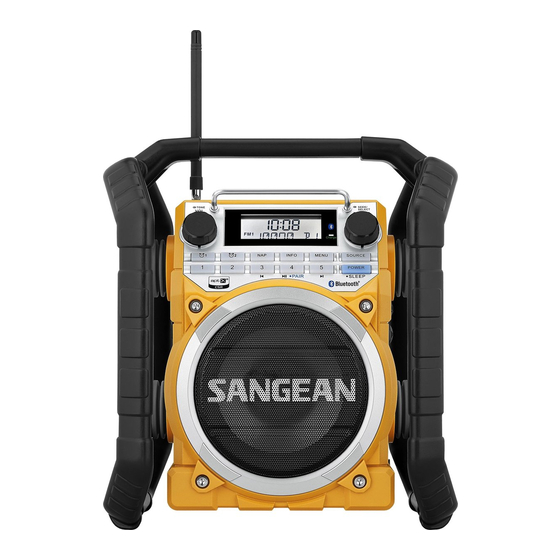

  • Page 7 Control Battery locker Menu button NFC detection tag Bluetooth status indicator Display protection bar Battery charging indicator Preset button (Preset 3: pre- Tuning control/Select vious track button/Preset 4 Source button Play/Pause/Bluetooth pair Power button button/Preset 5: next track Speaker button) Auxiliary input socket Alarm  button DC in socket...

  • Page 8: Lcd Display

    LCD Display RDS indicator Alarm  and 2 indicator AM/PM time indicator Text display Clock digits FM mode indicator Sleep indicator AM mode indicator Battery power status Bluetooth mode indicator...
  • Page 9 Power the radio Note: No batteries are included with this radio. Back up battery is to back up the preset stations and also clock- functions during power outage, not for formal radio operation. It is necessary to insert back up battery (2 x UM-3 1.5V, not supplied) for memory back up even if you use AC power only.
  • Page 10 Battery operation Pull out the battery compartment locker to release battery compartment. Insert 6 x D size (UM-1) battery into the compartment. Ensure the battery is inserted in accordance with the diagram shown. Return the battery locker to the original position. If the radio is not to be used for any extended period of time, it is recommended that the battery is removed from the radio.
  • Page 11 Note: Duration for charging your battery fully can be varied according to the mAh capacity of a battery. Higher mAh batteries required longer charging time. Important: Under some conditions the charging LED indicator may switch off after flashing briefly. This may happen if the batteries are already freshly charged, or if the radio detects that you may be attempting to recharge alkaline batteries or mixed different types or capacity of rechargeable battery.
  • Page 12 Battery charging status indication Please note that the battery charging status detection can only be activated when the radio is in charging mode (i.e. the radio is switched off, the battery switch slides to the NiHM position and it is connected to the AC mains socket).
  • Page 13 If charging process is terminated, the radio can detect the faulty batteries which cause the charging failure. Enter the menu and it will show the overall battery charging status (see the first picture at right). Then rotate the Tuning control to view each battery status (e.g.
  • Page 14 Operating your radio – FM/AM auto-tune . Straighten up the antenna. 2. Press the Power button to switch on your radio. 3. Press and release the Source button until the FM (1 or 2)/AM band is selected. 4. Press and release the Tuning control to cause your radio to search from low frequency to high frequency and to stop automatically when it finds a station of sufficient strength.
  • Page 15 Display options – FM Your radio has a range of display options for FM mode:- The Radio Data System (RDS) is a system in which inaudible digital information is transmitted in addition to the normal FM radio programme. RDS offers several useful features. The following are available on your radio.
  • Page 16 Presetting stations – FM/AM You may store your preferred FM radio stations to the preset station memories. There are 5 memory presets in your radio 5 each for FM, FM2 and AM. Presets are memorized by your radio in the event of a power failure. The procedure for setting presets and using them to tune stations is the same for FM and AM mode, and is described below.
  • Page 17 3. Activate Bluetooth on your device according to the device's user manual to link to the speaker. Locate the Bluetooth device list and select the device named ‘SANGEAN U4’ With some mobiles (which are equipped with earlier versions than BT2. Bluetooth device), you may need to input the pass code “0000”.
  • Page 18 Be aware that during the period of disconnection, no other Bluetooth device can pair or link with your radio. 3) If ‘SANGEAN U4’ shows in your Bluetooth device list but your device cannot connect with it, please delete the item from your list and pair the device with the speaker again following the steps described previously.
  • Page 19 Playing audio files in Bluetooth mode When you have successfully connected your radio with the chosen Bluetooth device you can start to play your music using the controls on your connected Bluetooth device. . Once playing has started adjust the volume to the required setting using the Volume control on your radio or on your enabled Bluetooth device.
  • Page 20 Pairing another device to your radio Before pairing another device to the speaker, you need to make the radio discoverable. . Press and hold the Bluetooth pair button to make the radio discoverable again and the Bluetooth status indicator flashes. 2.
  • Page 21 NFC to work.) 2. Touch the NFC area of your playing device against the NFC area marked on top panel of U4. The unit will switch to Bluetooth mode and enter automatic pairing . If you pair with U4 for the first time, your NFC-enabled device will be asked the permission to link with the radio.
  • Page 22 Clock Setting the clock automatically The clock time and day of week can be set automatically when re- ceiving an RDS station that transmits clock time (CT). The CT infor- mation is transmitted once every minute. If the station has sufficient signal strength the clock will set within one or two minutes.
  • Page 23 4. Rotate the Tuning control to set the desired hour. Then press the Tuning control to confirm the setting. The minute digit will flash on the display. 5. Rotate the Tuning control to set the desired minute. Then press the Tuning control to confirm the setting. Setting date manually .
  • Page 24 Alarms Your radio has 2 separate alarms which can be set to wake you to FM/AM radio or buzzer alarm. Each alarm can be set to sound once, daily, on weekdays or at weekends. The alarms can be set whether the radio is on or in standby mode. In the event of a power interruption your radio has a built in memory chip that will maintain your alarm settings for when the power is restored.
  • Page 25 4. Rotate the Tuning control to choose the required alarm type, and then press the Tuning control to confirm the setting. The alarm can be set to buzzer, FM or AM. When radio mode is selected, the radio frequency on the display will begin to flash. Rotate the Tuning control to adjust the required radio frequency or press the corresponding preset button to select the required preset number for the alarm, then press the Tuning control to confirm the setting.

  • Page 26: Nap Timer

    Snooze . When the alarm sounds, press any button other than the Power button will silence the alarm for 5 minutes. “SNOOZE” will a pear on the display. 2. To adjust the silence time for the snooze timer, press the Menu button to enter the menu setting.
  • Page 27 Nap timer volume control . Press the Menu button to enter the setting. 2. Rotate the Tuning control until ‘NAP VOL X’ shows on the dis- play. Press the Tuning control to enter the setting. 3. Rotate the Tuning control to adjust the volume of the nap timer. The sound will change as you adjust the level.
  • Page 28 Set my own EQ The sound of your sound system can be adjusted to suit your per- sonal taste for the material that you are listening to. You can set the treble and bass levels to your own preferences. . Press the Volume control to enter EQ menu. 2.

  • Page 29: Auxiliary Input Socket

    Setting tuning step . Press the Menu button to enter the menu setting. 2. Rotate the Tuning control until ‘FM X KHZ’ or ‘AM X KHZ’ shows on the display. Press the Tuning control to enter the setting. 3. Rotate the Tuning control to choose desired FM tuning step (50 kHz or 100 kHz) or AM tuning step (9 kHz or 10 kHz).

  • Page 30: Factory Reset

    Factory reset If you wish to completely reset your radio to its initial state this maybe performed by following this procedure. By performing a fac- tory reset, all user entered settings will be erased. . Press the Menu button to enter the setting. 2.
  • Page 31 USB socket for iPhone or Smartphone charging Your radio has a USB socket which is intended only for charging an iPhone or smart phone and similar devices. Charge time may vary and in some cases may take longer to charge than when using the manufacturers charging unit supplied with the smart phone.

  • Page 32: Specifications

    Specifications Frequency Coverage: FM 87.50 - 08MHz AM 520 - 1710kHz (10kHz / step) 522 - 1710kHz (9kHz / step) AC Power: AC 230V / 50Hz / 24W (Europe) Batteries: 6 x UM-1 (D size) DC IN : 2V / .2A center pin positive Bluetooth Bluetooth specification Bluetooth®...
  • Page 33 DC Out: 5V 000mA Speaker unit: 6.5 inches 8 ohm 5W, full range Internal Antenna system: FM built-in bended spring antenna LED illuminator: 2 x white LED, current consumption 30mA Dimension: 298 X 342 X 268 Weight: approx. 4.83 The company reserves the right to amend the specification without notice. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste.
