Yang Boon Quek
1 Introduction
Board layout and stencil information for most Texas Instruments (TI) Quad Flat No-Lead (QFN) devices is
provided in their data sheets. This document helps printed-circuit board (PCB) designers understand and
better use this information for optimal designs.
The QFN package is a thermally enhanced standard size IC package designed to eliminate the use of
bulky heat sinks and slugs. This package can be easily mounted using standard PCB assembly
techniques and can be removed and replaced using standard repair procedures.
The QFN package is designed so that the lead frame die pad (or thermal pad) is exposed on the bottom
of the IC (see Figure
the exterior of the package.
SLOA122 – July 2006
Submit Documentation Feedback
1). This provides an extremely low thermal resistance (θ
Plastic Mold Compound
IC (Silicon)
Exposed Thermal Pad Located
Underneath the Package
Leadframe (Copper Alloy)

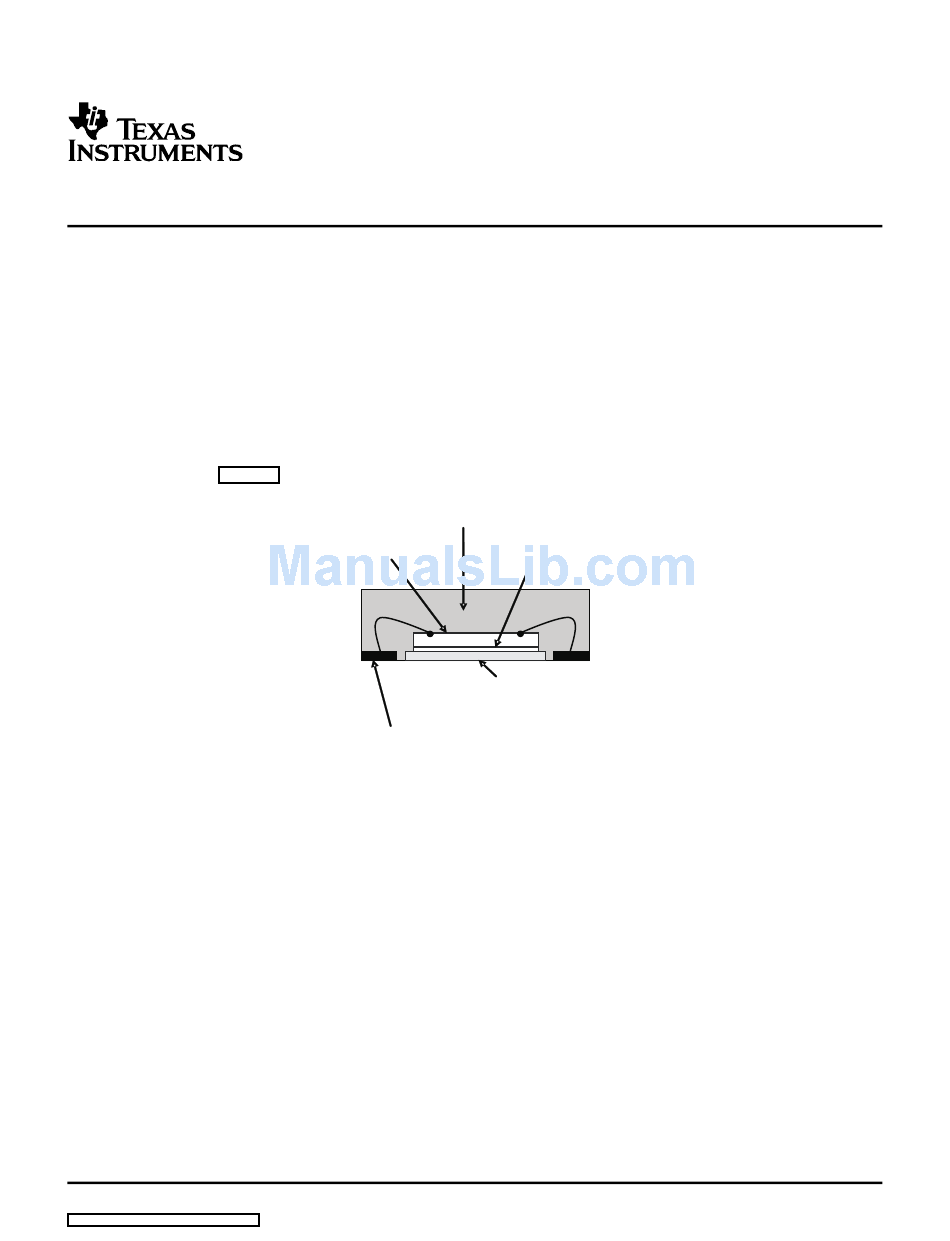

Figure 1. Section View of a QFN Package
QFN Layout Guidelines
Die Attach (Epoxy)
Application Report
SLOA122 – July 2006
HPL Audio Power Amplifiers
) path between the die and
JC
QFN Layout Guidelines 1
