General Description

The LM833 is a dual general purpose operational amplifier
designed with particular emphasis on performance in audio
systems.
This dual amplifier IC utilizes new circuit and processing tech-
niques to deliver low noise, high speed and wide bandwidth
without increasing external components or decreasing stabil-
ity. The LM833 is internally compensated for all closed loop
gains and is therefore optimized for all preamp and high level
stages in PCM and HiFi systems.
The LM833 is pin-for-pin compatible with industry standard
dual operational amplifiers.

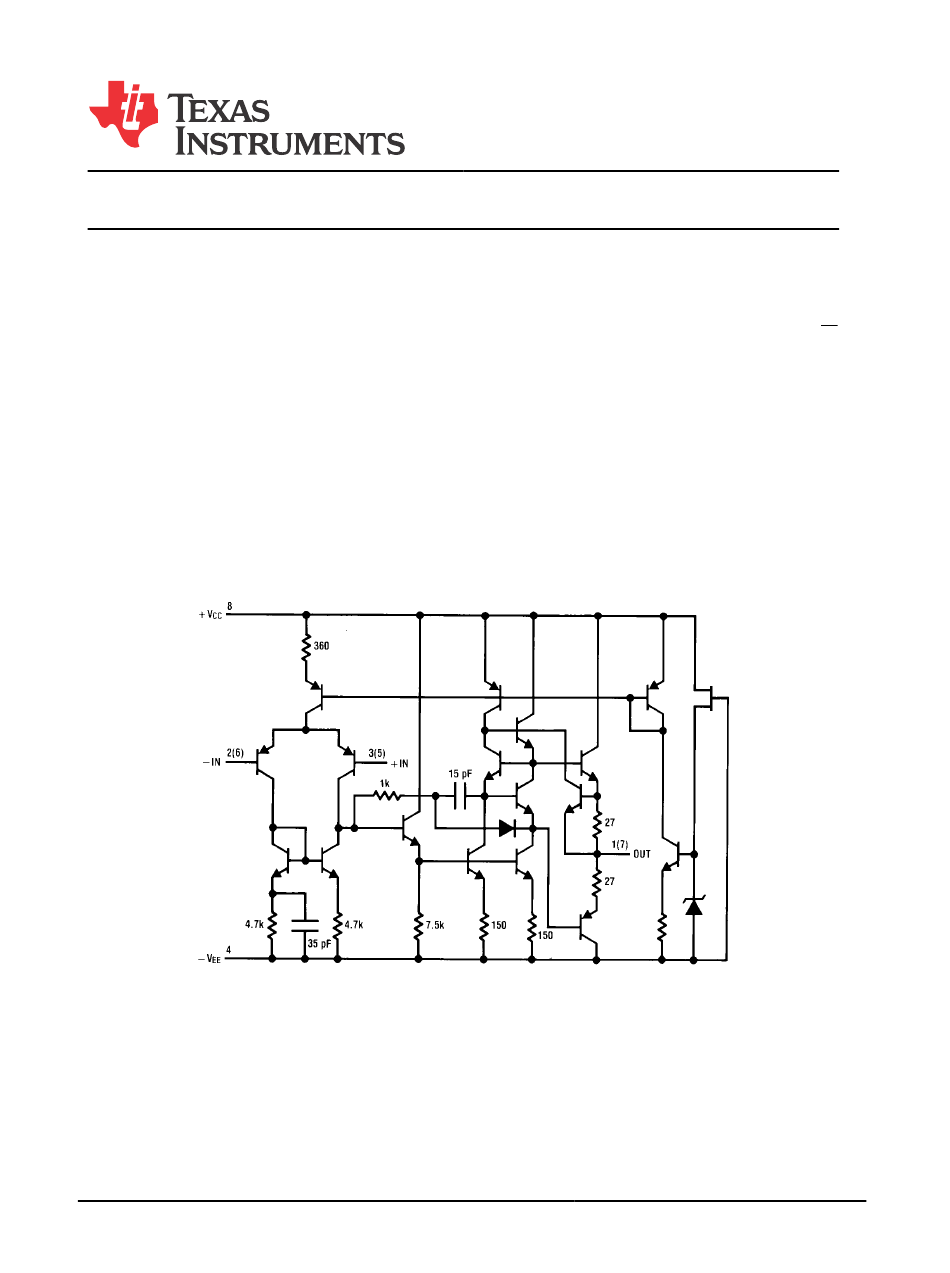

Schematic Diagram

(1/2 LM833)
PRODUCTION DATA information is current as of
publication date. Products conform to specifications per
the terms of the Texas Instruments standard warranty.
Production processing does not necessarily include
testing of all parameters.
Dual Audio Operational Amplifier
5218 SNOSBD8E
Features
■
Wide dynamic range:
■
Low input noise
voltage:
■
High slew rate:
■
High gain bandwidth:
■
Wide power bandwidth:
■
Low distortion:
■
Low offset voltage:
■
Large phase margin:
■
Available in 8 pin MSOP
package
Copyright © 1999-2012, Texas Instruments Incorporated
LM833
>140dB
√
4.5nV/ Hz
7 V/μs (typ); 5V/μs (min)
15MHz (typ); 10MHz (min)
120KHz
0.002%
0.3mV
60°
521801
