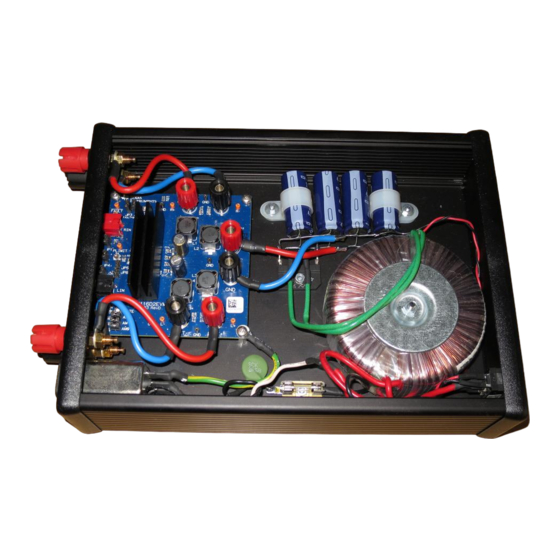

Texas Instruments TPA3116 Quick Start Manual

Hifi Stereo Bluetooth Digital Power Amplifier Board TPA3116 50Wx2 Speaker Audio Amplifier With Filter
note! The heat sink with 3M glue needs to be pasted onto the chip, please refer to the description picture. The hotter
the 3M glue, the better the thermal conductivity. The shell version requires you to assemble the shell and a screwdriver
will be provided with the product.
This product is made of high quality materials, high performance power amplifier for HIFI music.
The TPA3116D2 is a Class D amplifier IC from TI that has very high index parameters. The modulation frequency can
be up to 1.2MHZ, and the high power output distortion is less than 0.1%.
With AUX and Bluetooth two audio input methods, 2-in-1;
The potentiometer adjusts the volume with a switch for easy control of the volume, making it ideal for DIY speakers.
With a filter inductor, the sound is round and clear.
It adopts copper DC connector and fence type terminal. It can withstand large current, no heat, no damage to the wire,
good wiring and short circuit.
Free DC head lead, compatible with the input power interface of this product, even if you don't have a DC head adapter
or battery, it can be easily wired.
5.0 Bluetooth version, the transmission efficiency is higher, the transmission distance is farther.
Precautions for use: The power switch on the board is the standby switch. After the switch is turned off, the machine is
in a low-power standby state. To completely turn off the power or unplug the DC plug on the machine for a long time.
Question and answer:
1. How to choose a power supply?
The power supply with the board is critical. The higher the voltage, the higher the current and the better the output
power. If you only have 12V 1A, you can bring a 3-4 inch speaker. If you are 19V 5A or above, there is no problem with
8-10 inches, and the power supply must be highly valued. If the voltage is too low, the sound will be distorted after the
sound is amplified. If the current is too small, the speaker will pull the voltage low, work abnormally or the sound
quality will deteriorate.
It is recommended to use 18V19V24V power supply with current above 3A. If you only have 9V12V or 1A 2A power
supply, it can also be used but the power is small. Please pay attention to the maximum volume when using it, which
may affect the sound quality.
2. How to choose a speaker?
Commonly used speakers are generally 8 ohms, can not distinguish between positive and negative, the effect is the
same, 4 ohm speakers can also be used.
