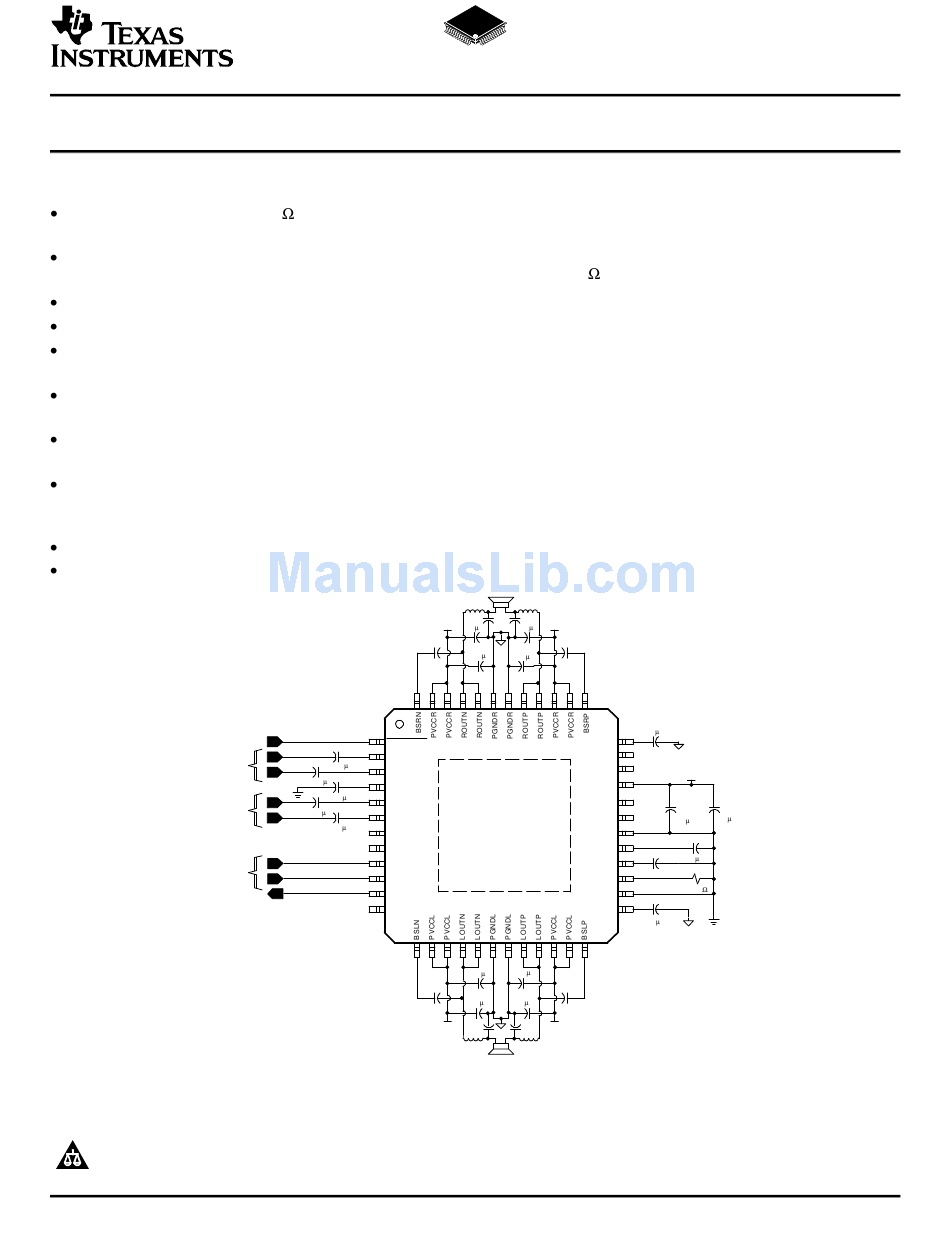

10-W STEREO CLASS-D AUDIO POWER AMPLIFIER
FEATURES
10-W/Channel Into an 16-
17-V Supply
Up to 92% Efficient, Class-D Operation
Eliminates Need For Heatsinks
8.5-V to 18-V Single-Supply Operation
Four Selectable, Fixed Gain Settings
Differential Inputs Minimizes Common-Mode
Noise
Space-Saving, Thermally Enhanced
PowerPAD™ Packaging
Thermal and Short-Circuit Protection
With Auto Recovery Option
Pinout Similar to TPA3000D Family
APPLICATIONS
LCD Monitors and TVs
All-In-One PCs
Shutdown/Mute
Control
Right Differential
Inputs
Left Differential
Inputs
Gain
Control
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Load From a
PVCC
10 F
220 nF
0.1 F
SHUTDOWN
RINN
0.47 F
RINP
0.47 F
V2P5
0.47 F
LINP
0.47 F
LINN
TPA3008D2
0.47 F
AVDDREF
NC
GAIN0
GAIN1
FAULT
NC
0.1 F
10 F
220 nF
PVCC
SLOS435A – MAY 2004 – REVISED JULY 2004
DESCRIPTION
The TPA3008D2 is a 10-W (per channel) efficient,
class-D audio amplifier for driving bridged-tied stereo
speakers. The TPA3008D2 can drive stereo speakers
as low as 8
. The high efficiency of the TPA3008D2
eliminates the need for external heatsinks when
playing music.
The gain of the amplifier is controlled by two gain
select pins. The gain selections are 15.3, 21.2, 27.2,
and 31.8 dB.
The outputs are fully protected against shorts to
GND, VCC, and output-to-output shorts. A fault ter-
minal allows short-circuit fault reporting and automatic
recovery. Thermal protection ensures that the maxi-
mum junction temperature is not exceeded.
PVCC
10 F
220 nF
0.1 F
1 F
VCLAMPR
NC
NC
AVCC
NC
NC
0.1 F
AGND
AVDD
COSC
220 pF
ROSC
AGND
VCLAMPL
1 F
0.1 F
10 F
220 nF
PVCC
†
†Optional output filter for EMI suppression
Copyright © 2004, Texas Instruments Incorporated
TPA3008D2
AVCC
10 F
1 F
120 k
