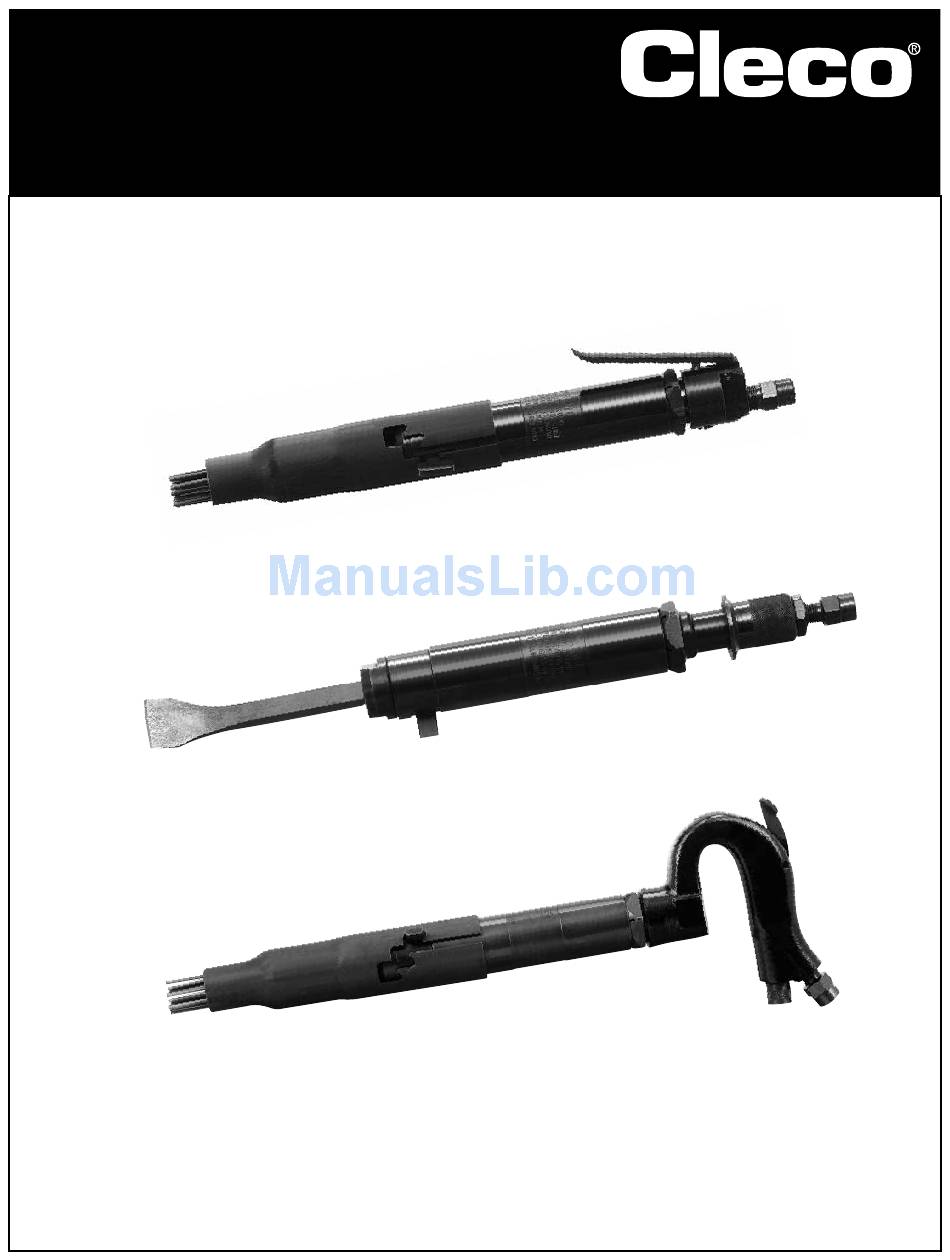

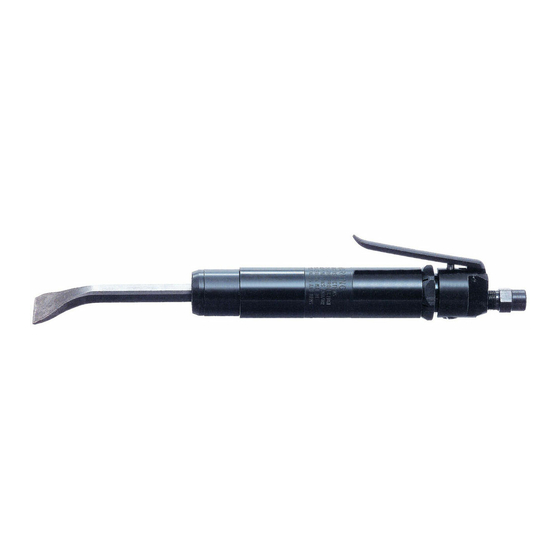

- Page 1 Parts Manual 823108EN 12/31/2015 B1-C & BR-C Series Chisel and Needle Scaler For additional product information visit our website at http://www.apextoolgroup.com...
- Page 3 823108EN Cleco ® 12/31/2015 Nomenclature Tool Series B1 = Shank (Square Chisel) BR = Shank (Round Chisel) Tool Style C = Chisel CNB = Chisel and Needle Scaler Throttle Type BV = Pistol Grip, Lever Throttle LT = Inline, Lever Throttle...
-
Page 4: Service And Repair
Intended Use: copper. Also, do not use cupped rivet sets with Cleco percussion tools to drive nails. Blows not centered on These chisels and needle scalers are driven by the nail can cause the nail to ricochet off the work and compressed air to remove material. -
Page 5: Handle Assembly
Push the tang on the driver retainer (832956), away from Clean and inspect all parts for excessive wear or the barrel to remove the chisel (see illustration below). damage and replace as necessary with genuine Cleco replacement parts. Replace all o-rings and seals whenever the tool is disassembled. - Page 6 823108EN Cleco ® 12/31/2015 Inline Handle - Push-Pull Start “A” Throttle Type: PT Series Page 6...
- Page 7 823108EN Cleco ® 12/31/2015 Inline Handle - Push-Pull Start Illustration "A": Inline Handle, Push-Pull Start Number Description 831219 Handle Assembly (includes Ref. 1-10) 841554 Air Inlet Bushing 843645 Throttle Valve Casing Lock Nut 832610 Control Valve Handle 834878 Set Screw 832600 Throttle Valve (includes Ref.
- Page 8 823108EN Cleco ® 12/31/2015 Inline Handle - Lever Throttle Throttle Type: “B” LT Series Page 8...
- Page 9 823108EN Cleco ® 12/31/2015 Inline Handle - Lever Throttle Illustration "B": Inline, Lever Throttle Number Description 861731 Handle Assembly (includes Ref. 1-14) 841553 Air Inlet Bushing 869310 Handle 834780 Throttle Lever 834848 Throttle Lever Pin 834782 Throttle Valve (includes Ref. 6) 844302 Throttle Valve O-Ring (5/32"...
- Page 10 823108EN Cleco ® 12/31/2015 Pistol Grip Handle - Lever Throttle Throttle Type: “C” BV Series Page 10...
- Page 11 823108EN Cleco ® 12/31/2015 Pistol Grip Handle - Lever Throttle Illustration "C": Pistol Grip, Lever Throttle Number Description 831121 Handle Assembly (includes Ref. 1-18) 832948 Handle (includes Ref. 2) 832211 Throttle Valve Pin Bushing 832148 Throttle Lever 832128 Throttle Lever Pin...
- Page 12 823108EN Cleco ® 12/31/2015 Scaler Barrel Assemblies “D” B1-C Series Scaler “E” BR-C Series Scaler Page 12...
- Page 13 823108EN Cleco ® 12/31/2015 Scaler Barrel Assemblies Illustration "D": B1-C Barrel Assembly Number Description 832173 Valve Block Button 844652 Valve Block Pin 832196 Valve 832508 Valve Block 832373 Plunger 861735 Barrel Assembly (includes Ref. 7-9) 832963 Tool Nose 842801 Tool Nose Key...
- Page 14 823108EN Cleco ® 12/31/2015 Needle Scaler Assembly “F” The “J” slot retainer has three positions, spaced 7/16” apart. As the needles wear or greater extension is desired, the needle housing can be telescoped back over the scaler barrel up to 7/8”...
- Page 15 834046 Needle Holder 834044 Needle Holder Spring Table "F" Needle Tube Table "F1" Chisel (B1-C series models) Table "F2" Chisel (BR-C series models) (#) Quantity (X) Recommended Spare Parts (quantity shown based on 1-5 tools in operation) Table "F" B1-C...
- Page 16 823108EN Cleco ® 12/31/2015 Needle Scaler Kit “G” Model: B1-CNB-LT-RD-K Page 16...
- Page 17 823108EN Cleco ® 12/31/2015 Needle Scaler Kit Illustration "G": Needle Scaler Kit Number Description B1-C-LT Needle Scaler (Inline, Lever Throttle) 831322 Needle Tube Assembly 834043 19 Needle (5") - Standard Equipment 834024 19 Needle (7") - Optional Equipment 832956 Chisel Retainer...
- Page 20 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements. NORTH AMERICA | SOUTH AMERICA Detroit, Michigan Louisville, Kentucky Lexington, South Carolina...
