Parts Manual
823108
05/10/2011
Tool Series
B1 = Shank (Square Chisel)
BR = Shank (Round Chisel)
Tool Type
C = Chisel
CNB = Chisel and Needle Scaler
Throttle
BV = Pistol
LT = Lever
PT = Push
Nose Type (CNB Models only)
RD = Round
RET = Rectangular
Option
K = Kit: Case, Scaler, Whip Hose, Extra Needle Set, 2 Chisels, Chisel Retainer parts
For additional product information visit our website at http://www.apextoolgroup.com
XX
-
XXX
-

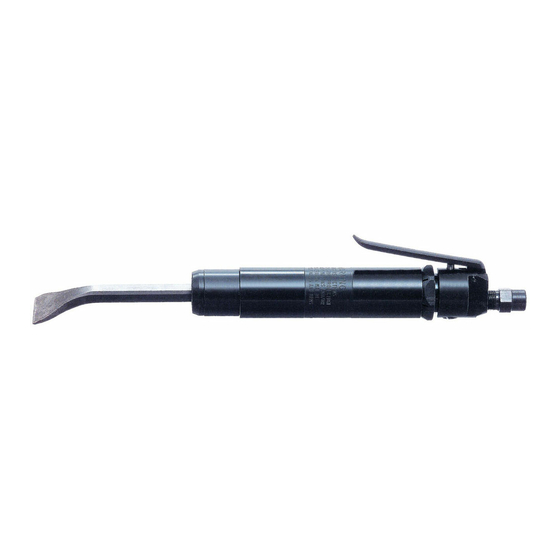

B1-C & BR-C Series
XX
-
XXX
-
Scalers
K
Advertisement
Related Manuals for Cleco B1-C Series
Summary of Contents for Cleco B1-C Series
- Page 1 Parts Manual 823108 05/10/2011 B1-C & BR-C Series Scalers Tool Series B1 = Shank (Square Chisel) BR = Shank (Round Chisel) Tool Type C = Chisel CNB = Chisel and Needle Scaler Throttle BV = Pistol LT = Lever PT = Push Nose Type (CNB Models only) RD = Round RET = Rectangular...
-
Page 2: Safety Recommendations
Also, do not use cupped rivet sets with Cleco percussion tools to drive nails. WARNING Blows not centered on the nail can cause the nail to ricochet off the work and strike the user. - Page 3 Safety Recommendations the throttle is accidently engaged. Use of a self-relieving valve thought to contribute to the conditions. Any user suffering within reach of the user of the tool is highly recommended. prolonged symptoms of tingling, numbness, blanching of fingers, clumsiness or weakened grip, nocturnal pain in the hand, or any other disorder of the shoulders, arms, wrists, or INDIVIDUAL WORK STATION fingers is advised to consult a physician.
- Page 4 Excessive amounts of oil should be avoided. If the operation of the scaler becomes sluggish or erratic, pour one teaspoon of kerosene into the air inlet and B1-C SERIES SCALER operate the tool for a few seconds. Lubricate the tool as explained above after flushing.
- Page 5 Eye protection must be worn when disassembling tool or when air line is turned on. A WARNING self-relieving valve in close proximity to the repair station to bleed off air is recom- mended. SERVICE INSTRUCTIONS DISASSEMBLY REASSEMBLY To disassemble the tool, remove the chisel retainer clip The tool is reassembled in the reverse order of disassem- and clamp the flats of the barrel in a soft-jawed vise.
- Page 7 B1-C SERIES SCALER B1-C SERIES SCALER PART NO. NAME OF PARTS QTY. Valve Block Button 832173 Valve 832196 Plunger 832373 832508 Valve Block 832554 Retainer Clip 832700 Barrel Sleeve 832956 Driver Retainer Tool Nose 832963 Retainer Buffer 833527 Tool Nose Key...
- Page 8 DISASSEMBLY INSTRUCTIONS FOR PT HANDLE DlSASSEMBLY REASSEMBLY To disassemble the handle. push the controlling valve handle The handle is reassembled in the reverse order of disas- 832610, to the full open position and slide off the throttle sembly. When assembling the throttle valve always use a valve casing retainer ring 833600.
- Page 9 DISASSEMBLY INSTRUCTIONS FOR C MODEL LT HANDLE DlSASSEMBLY REASSEMBLY Unscrewing the throttle valve cap 832207, will allow the throttIe The handle is reassembled in the reverse order of disassembly. vaIve spring 832078, and throttIe vaIve 834782, to be removed The throttle valve seal 844302, should be replaced before reas- from the handle.
-
Page 10: Name Of Part
DISASSEMBLY INSTRUCTIONS FOR BV HANDLE DISASSEMBLY Should it be necessary to replace the throttle valve casing, screw a 7/16- 20 bolt in the casing and using a suitable puller, remove it from the handle To disassemble the handle, pull the regulating valve lock nut, No. 832834, The screen bushing, No. - Page 11 NOTES...
-
Page 12: Sales & Service Centers
Sales & Service Centers Note: All locations may not service all products. Please contact the nearest Sales & Service Center for the appropriate facility to handle your service requirements. Dallas, TX Detroit, MI Houston, TX Lexington, SC Apex Tool Group Apex Tool Group Apex Tool Group Apex Tool Group...
