VideoEase™ Audio-Video Hub (500200)
Installation Guide
94-000278-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VideoEase and is the answer not in the manual?

Questions and answers

Summary of Contents for MuxLab VideoEase

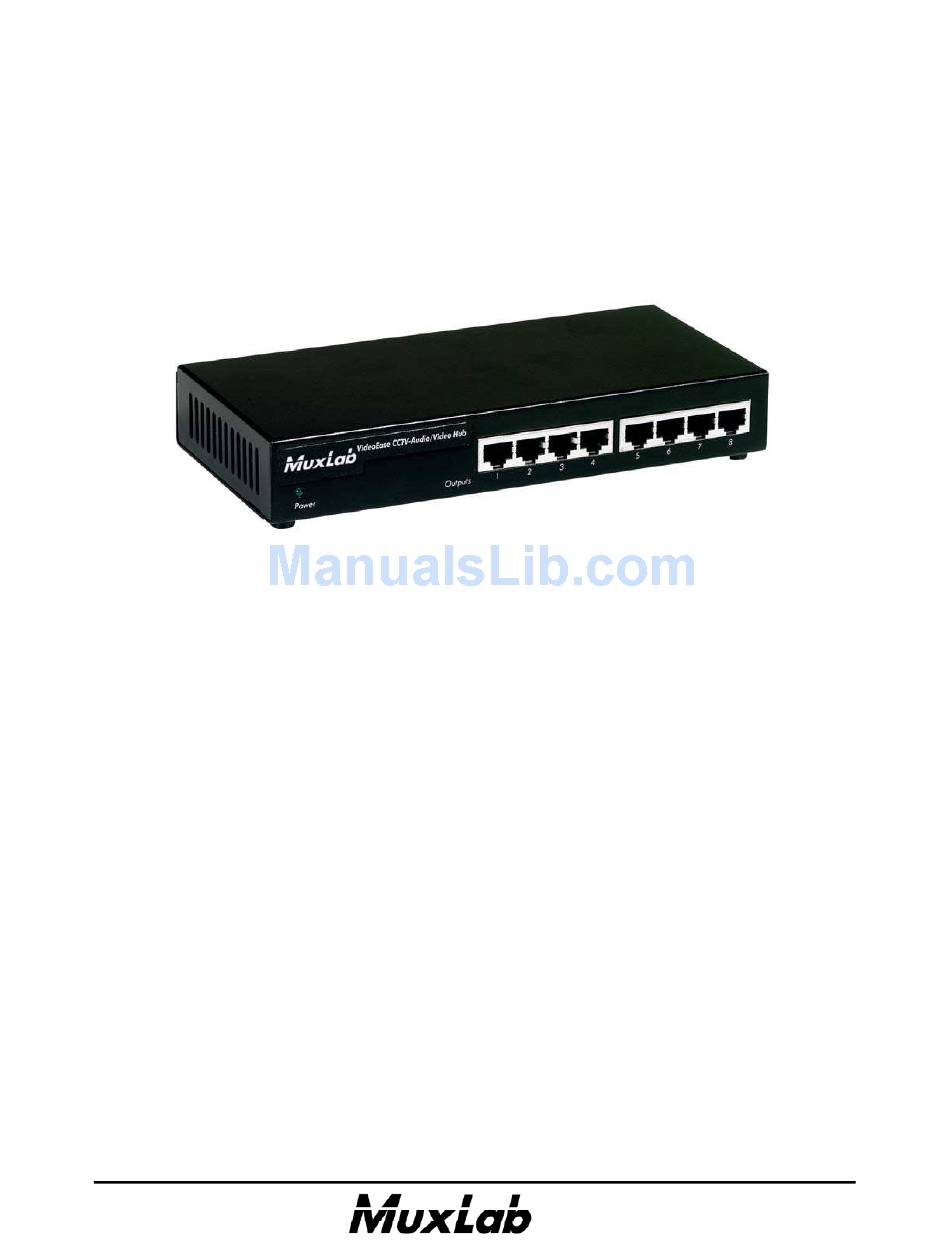

  • Page 1 VideoEase™ Audio-Video Hub (500200) Installation Guide 94-000278-C...
  • Page 2 ©MuxLab Inc. Audio-Video Hub Installation Guide Copyright Notice : Copyright © 2002 Inc. All rights reserved. Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopy- ing, recording, or otherwise without prior written permission of the author.
  • Page 3: Table Of Contents

    ©MuxLab Inc. Audio-Video Hub Installation Guide Table of Contents 1. Overview ........................4 1.1. Description......................4 1.2.1. Applications....................5 1.2.2. Benefits ....................5 1.2.3. Features....................5 2. Technical Specifications ....................6 3. Installation Procedure ....................7 3.1. Installation ......................7 3.2. Typical Applications..................12 3.3. Cascading Multiple Hubs ................13 Troubleshooting......................15...
  • Page 4: Overview

    1.1. Description The VideoEase Audio-Video Hub allows up to two (2) baseband video signals and up to two (2) audio signals to be distributed to up to eight (8) destinations via twisted pair (UTP) cable for more cost-effective and versatile cabling.
  • Page 5: Applications

    Up to 2200 feet between the source and destination via Cat 5 twisted pair in color.. Supports up to 2 video and 2 audio channels Integrates seamlessly with MUXLAB VideoEase baluns Looping output to cascade to other hubs or audio-video equipment...
  • Page 6: Technical Specifications

    Operating: 0 to 55 C. Storage:-20 to 85 C. Humidity: up to 95% non-condensing Dimensions 8.5” x 4” x 1.3” FCC, CE-EMC Directive 89/336/EEC Compliance 2 years Warranty 500200 VideoEase Audio-Video 8-Port Active Hub, 110V Order Information 500201 VideoEase Audio-Video 8-Port Active Hub, 220/240V Page 6...
  • Page 7: Installation Procedure

    Follow the steps listed below to install the Audio-Video Hub : The Audio-Video Hub is polarity sensitive and works in conjunction with MUXLAB’s VideoEase video baluns. If the Audio-Video Hub is used with baluns which have a signal polarity opposite to that of the Audio-Video Hub, then the signal polarity of the cabling between the hub and the video baluns may need to be reversed.
  • Page 8 Flat cable acts as an antenna and will pick up nearby ra- dio-frequency interference. Identify the pin configuration of both the video balun and the Audio- Video Hub. For example, when using the VideoEase Stereo Audio- Video Balun (500001), the modular cable must use straight through polarity.
  • Page 9: Troubleshooting

    1&2 1&2 1&2 Audio 2 3&6 3&6 3&6 Figure 2 : MUXLAB Video Balun Pin Configurations RJ45 Pin Configuration Video 1: Ring 7 Tip 8 Video 2: Ring 4 Tip 5 Audio 1: Ring 1 Tip 2 + 12V -12V...
  • Page 10 MuxLab Inc. Troubleshooting Power Outputs Figure 4 : Audio-Video Hub Front Panel Straight polarity Reverse polarity Plug the Audio-Video Hub into the nearest AC power outlet. The Power LED should light up and stay on. Page 10...
  • Page 11 MuxLab Inc. Troubleshooting VideoEase 2-Way Audio/Video Balun (500012) Audio1 Video 1 Audio 2 Cat 5 Twisted Pair Video 2 (4-Pair) RJ45 8-pin modular plug RJ45 Pin Configuration Video 1: Ring 7 Tip 8 Video 2: Ring 4 Tip 5 Audio 1: Ring 1 Tip 2...
  • Page 12: Typical Applications

    MuxLab Inc. Troubleshooting 3.2. Typical Applications CCTV Baluns Cat 3 or Cat 5 Twisted Pair Distribution Hub Monitoring locations Parking Audio Video Source DVD or VCR Audio-Video Hub Stereo Audio Video Balun Audio Audio Video Left Right Cat 5 UTP...
  • Page 13: Cascading Multiple Hubs

    For example an audio video presentation from a VCR or DVD source may be distributed to multiple classrooms via pre-installed Cat 5 twisted pair cable. Due to the active elec- tronics in the hub, the number of hubs that may be cascaded is eight (8). VideoEase Stereo To next hub Video Balun (500001)
  • Page 14 Input Port of another hub. In the example below, nine hubs may be used to distribute an audio-video program to up to 64 audio-video monitors in a classroom or corporate training environment. VideoEase Stereo Video Balun (500001) DVD or VCR...
  • Page 15: Troubleshooting

    MuxLab Inc. Troubleshooting Troubleshooting Reading this section carefully will surely allow you to pinpoint and resolve any type of malfunction. If after going through this section your problems still cannot be resolved, then refer to section 4.2 for additional assistance.
  • Page 16: Technical Support Information

    Visit our web site at www.muxlab.com 4.2. Technical Support Information When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready : 1. Baluns used. Model and part number. 2. Hub serial number. 3. Environment layout. Include audio-video source and destination equipment used, estimated cable lengths and type of cable used (UTP, STP, 25 pair, 50 pair or 100 pair).
  • Page 17: Manufacturer's Limited Warranty

    Return Material Authorization number (RMA#) issued by its Customer Service Depart- ment and a proof of purchase date. If this product is delivered to MUXLAB by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the war- ranty service location and to use the original shipping container or equivalent.
  • Page 18: Notes

    MuxLab Inc. Notes...
  • Page 19 MuxLab Inc. MuxLab Inc. Telephone : ........514-905-0588 5450, Côte de Liesse Toll-free (North America) : ..1-877-689-5228 Mount-Royal (Quebec) Fax : ..........514-905-0589 CANADA H4P 1A5...
