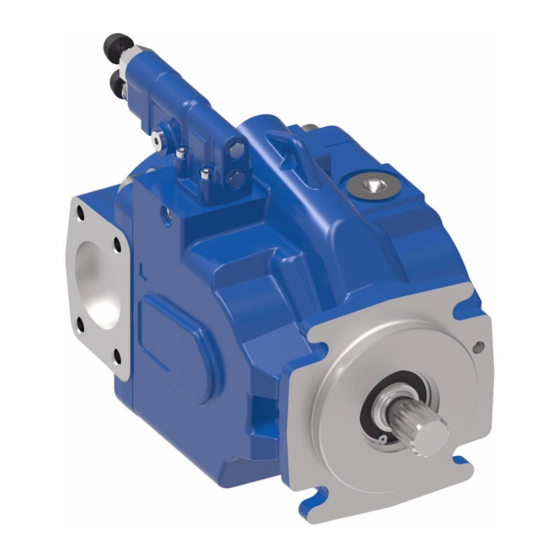

Mobile open circuit piston pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

620 Mobile open circuit
Piston pump service manual
ADY074
ADY098

Advertisement

Table of Contents
loading

Related Manuals for Eaton 620

Summary of Contents for Eaton 620

  • Page 1 620 Mobile open circuit ADY074 Piston pump service manual ADY098...
  • Page 2 EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 3 Assembly torque values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 4 Bolts / Thru drive adapter kit See table 16 Cold start manifold (Destroke) 107275-011 O-ring (Destroke) 6022841-001 Link, feedback Standard seal kit: 9900758-000 Adjustable maximum displacement volume stop kit: 9900772-000 EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 5: Parts Identification

    Control S/A, Electronic displacement control S/A 6040933-001 Spring feedback 473712 Screw, Hex socket 6035825-012 Coil, solenoid, 12V 6041646-001 Check valve S/A standard seal kit: 9900758-000 adjustable maximum displacement volume stop kit: 9900772-000 EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 6: Exploded Assembly

    Exploded assembly Assembly with longer segment toward top of pump Steel side of valve plate must face End cover EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 7: Optional Assembly

    Optional assembly Torque control option 4 X Torque 8.2 ± 0.8 Nm Torque 161 ± 16.0 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 8 Optional assembly Electronic displacement control option 4 X Torque 4 X Torque 8.2 ± 0.8 Nm 4.0 ± 0.4 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 9 4 X Torque 30 ± 5.4 Nm Torque 115± 12 Nm Adjustable maximum stop option 4 X Torque 161 ± 16.0 Nm 4 X Torque 27 ± 2.7 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 10 Typical cross section Side view EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 11: Housing

    AA, AB, AC, AD, AF, AW 00, AA, AD, AG, AV 6030838-001 Housing AA, AB, AC, AD, AF, AW 0,1,3 00, AA, AD, AG, AV 6034961-001 Housing AT, AY 6038823-002 Housing (feedback sensor) EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 12 Seal, shaft, nitrile Swashplate – Item 8 Table 3 Table 3 - Swashplate (Item 8) Code position 29, 30 Part number Description 00,AA,AD,AG,AV 6022840-002 Swashplate AB,AE,AF,AH 6022840-001 Swashplate (Feedback sensor) EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 13 Shaft, drive, 1.25 tapered, str key, thru drive 16246-614 6036654-001 Shaft, drive, 1.25 straight key, 56 ext not 00 4999303-002 Shaft, drive, input 14 tooth, thru drive 14392-004 6035973-001 Shaft, drive, 1.25 Tapered, str key EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 14 4, 5, 6 Part number Description 6029369-001 Plate, valve (RH 74 cc) 6029369-002 Plate, valve (LH 74 cc) 6024330-001 Plate, valve (RH 98 cc) 6025319-001 Plate, valve (LH 98 cc) EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 15 End cover S/A, side port 98 cc metric not 00 6023824-004 End cover S/A, thru drive 98 cc metric 620 Series mobile piston pump end cover views Rear ported Side ported Thru drive EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 16 AA, AB, AC, AD, AF, AW 02, 03, 04 6024779-001 Plug AJ, AH 6033256-001 Assembly piston cap & sleeve AJ, AH 02, 03, 04, 06, 07 6033256-002 Assembly piston cap & sleeve EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 17 137.9-144.8 bar [2000-2100 lbf/in 9.65-12.41 bar [140-180 lbf/in 9901219-081 276-284 bar [4003-4119 lbf/in 9900771-006 196-204 bar [2843-2959 lbf/in 9900771-007 Torque 8.2 ± 0.8 Nm Pressure flow compensator Pressure compensator only EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 18 6028263-006 Coupler, 17 tooth 4999426-001 Coupler, 9 tooth 4999427-001 Coupler, 11 tooth 6024980-001 Coupler, 13 tooth 6024112-001 Coupler, 15 tooth 864458 Coupler, 14 tooth 864461 Coupler, 17 tTooth EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 19 Table 16 - Cold start manifold (Destroke) (Item 33) Code position 22, 23 Part number Description 0B,0C 631AA00288A-009 Destroke manifold with metri-pack connector 631AA00288A-003 Destroke manifold with integrated deutsch connector Torque 8.2 ± 0.8 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 20 Table 18 - Hex head cap screw (Item 49) Code position 26, 27 29, 30 Part number Description AA, AB 16136-607 Hex head cap screw AC, AD, AE 16136-812 Hex head cap screw EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 21 Electronic displacement control S/A – Item 63 Table 20 Table 20 - Electronic displacement control S/A (Item 63) Code position 14, 15 Part number Description 6041219-003 EDC, EP type 6041167-003 EDC, EPD type EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 22: Mobile Piston Pump Repair

    620 Mobile piston pump repair Cut section EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 23: General Information

    • 3/32” Allen wrench • Impact driver • Slide hammer for bearing removal • Dial indicator and accessories • Marker or paint pen • Petroleum jelly • Cleaning solvent EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 24: Disassembly

    . With the locator tool in place, tighten the adjustment screw so that control piston is compressed . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 25: Assembly

    . A shim kit is required if the crush ring is replaced . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 26: Eaton 620 Mobile Open Circuit Piston Pump Service Manual E-Pupi-Ts018-E2 November

    Note: Carefully remove the rotating group . 11. Remove shaft 13. Remove control piston Note: The open end of the control piston is positioned up . The control piston is allowed to rotate . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 27: Swashplate

    18. Remove cradle bearings screws and discard 16. Remove Bias Spring 16. Remove bias spring Caution: Socket head cap screws are easily damaged during repair with improper tool . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 28 Disassembly 19. Remove cradle bearings 21. Remove snap ring, shaft seal and discard. 20. Remove front bearing race EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 29 0 .03 mm ±0.03mm Between Piston Shoes (9) Shoe Piston Shoe face rides on swash plate . Shoe must swivel smoothly on ball . Movement up to 0.08mm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 30 . Replace any part that is in ques- ing for damaged or stripped threads . If any tionable condition . thread is damaged, replace the housing . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 31 .001” to .003” location as the removed ( .03 to .08 mm) clearance . crush ring . Add shims to achieve proper shaft end play . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 32 . The new cap screw threads will be coated with loctite . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 33 9. Install Control Piston 7. Install Swashplate Note: With the Bias Spring in place, tilt the swashplate toward the spring and install the swashplate . Ensure that Bias Spring is engaged. EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 34 . Shim installation instructions are on page 26 . Caution: Use care while inserting shaft end through shaft seal . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 35 End Cover . 15. Install gasket and bearing Note: After Installation of Bearing, lubricate all components with clean hydraulic oil . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 36 . 17. Install compensator 19. Testing Perform functional test on pump according to Eaton test procedure . Contact your area sales manager for more information . EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 37 Torque 135 ± 13.5 N.m Steel side of valve plate must face End cover Thru-drive part option 4 X Torque 30 ± 5.4 Nm Torque 115± 12 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...

  • Page 38: Cold Start Manifold (Destroke)

    Torque 3.0 ± 0.2 Nm Torque 4.0 ± 0.4 Nm Adjustable maximum stop option 4 X Torque 161 ± 16.0 Nm 4 X Torque 27 ± 2.7 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 39 Press to bottom of hole split to Torque be on this AZIS 24.5 ± 2.5 Nm within ± 5° Torque Torque 24.5 ± 2.5 Nm 15.0 ± 1.5 Nm EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017...
  • Page 40 Tel: +41 (0) 21 811 4600 200335 China Fax: 952-294-7722 Fax: +41 (0) 21 811 4601 Tel: (+86 21) 5200 0099 www.eaton.com/hydraulics Fax: (+86 21) 2230 7240 © 2017 Eaton Corporation All Rights Reserved Printed in USA Document No. E-PUPI-TS018-E2 November 2017...
