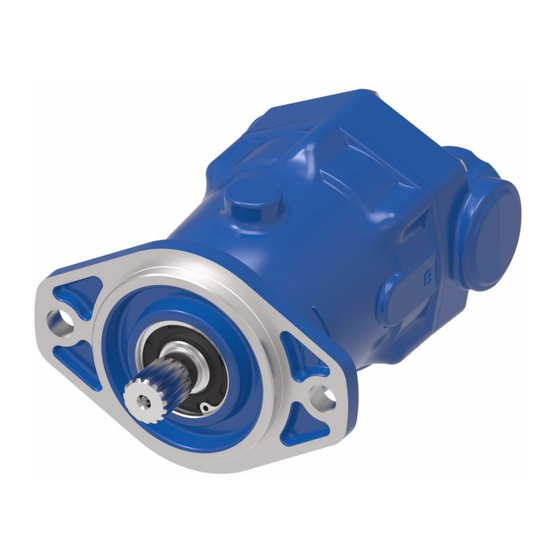

- Page 1 Eaton ® Medium Duty Piston Pump Repair Information Model 74318 and 74348 Piston Motors Fixed Displacement, Valve Plate Design...
-
Page 2: Parts Drawing
Rear or Opposite side Porting Backplate Assembly Date Code and Assembly Number Location Same Side Porting Backplate Assembly Include : Housing Assy., 9 Camplate Insert, 11 Rotating Kit Assy., 12 Valve Plate, 22 O-ring, 23 Thru Shaft Backplate Assembly © Copyright 1991 Eaton Corporation... - Page 3 Parts List - 74318 and 74348 Piston Motor Item Description Quantity Retaining Ring Shaft Seal Washer Retaining Ring Thrust Race Thrust Bearing Drive Shaft Key (Used on thru shaft only) Housing Assembly (Includes item #10) Needle Bearing Camplate Insert Rotating Kit Assembly (Includes item # 13 thru #21)
- Page 4 Repair Information - Model 74318 and 74348 Piston Motors Place one of the flat washers over the 3/8 in. x 3-1/4 in. cap Cleanliness is extremely important when repairing these motors. screw and place this through the center of the piston block.
- Page 5 The polished finish on the shoe surface of the 10 If roll pins were removed install to dimension shown camplate insert (11) should show no signs of scoring. and with opening of roll pin oriented away from bearing within 5 degrees of bearing center line. Inspect the shaft (7) for wear in the seal, bearing and spline areas.
-
Page 6: Motor Trouble Shooting
Motor Trouble Shooting In trouble shooting a pump and motor system it is necessary to isolate the pump from the motor. This will determine which unit is actually malfunctioning. A worn pump or motor will both give the same system indication. Therefore, it is advisable to first run a pressure and flow check on the pump. -
Page 8: Identification Number
Last number of year built Testers initials 00 00 00 = Data Code Example ot numbers on flange. 74318 - DAV = Assembly Number Identifies type of product Sequential Identification 74 = Fixed Axial Piston Motor Rotation D = Dual... - Page 9 Shanghai 200021 Tel: +41 (0) 21 811 4600 China Tel: 952-937-9800 Tel: 86-21-6387-9988 Fax: 952-294-7722 Fax: +41 (0) 21 811 4601 Fax: 86-21-6335-3912 www.eaton.com/hydraulics © 2008 Eaton Corporation All Rights Reserved Printed in USA Document No. E-PUPI-TS014-E Supersedes 07-141 December 2008...
