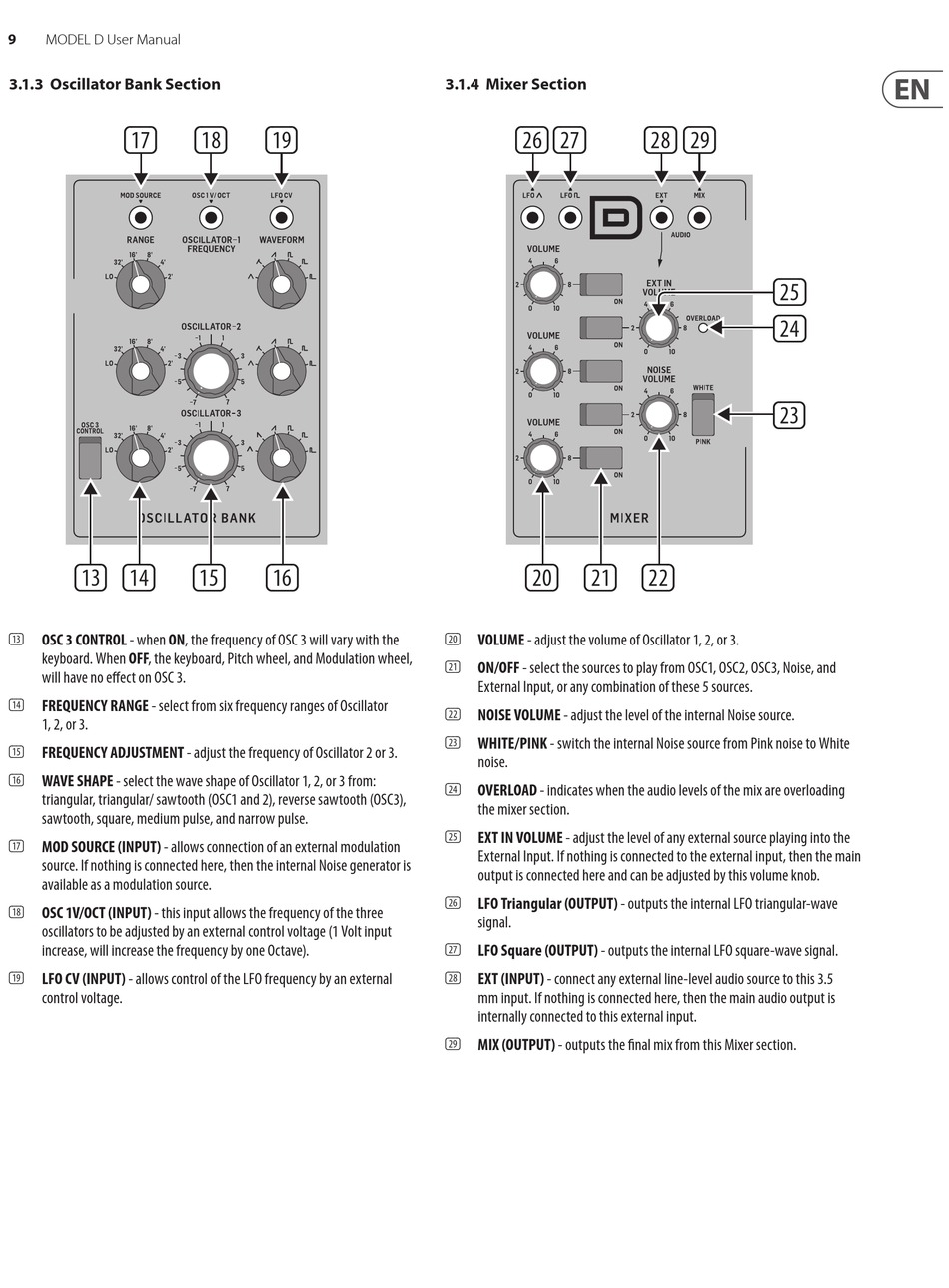

3.1.3 Oscillator Bank Section
(2) (3) (17)
(7) (7)
(8) (8)
(9) (9)
(11) (12) (13) (14) (15)
(37) (38) (39) (40) (41)
OSC 3 CONTROL - when ON, the frequency of OSC 3 will vary with the
(13)
keyboard. When OFF, the keyboard, Pitch wheel, and Modulation wheel,
will have no effect on OSC 3.
FREQUENCY RANGE - select from six frequency ranges of Oscillator
(14)
1, 2, or 3.
(33) (33)
FREQUENCY ADJUSTMENT - adjust the frequency of Oscillator 2 or 3.
(15)
(32) (32)
WAVE SHAPE - select the wave shape of Oscillator 1, 2, or 3 from:
(16)
triangular, triangular/ sawtooth (OSC1 and 2), reverse sawtooth (OSC3),
sawtooth, square, medium pulse, and narrow pulse.
(31) (31)
MOD SOURCE (INPUT) - allows connection of an external modulation
(17)
source. If nothing is connected here, then the internal Noise generator is
available as a modulation source.
OSC 1V/OCT (INPUT) - this input allows the frequency of the three
(18)
(30) (30)
oscillators to be adjusted by an external control voltage (1 Volt input
increase, will increase the frequency by one Octave).
LFO CV (INPUT) - allows control of the LFO frequency by an external
(19)
control voltage.
(18) (17) (19) (18)
(13) (14) (15) (16)
(37) (38) (39) (40) (41)
(36)
(35)
(34)
3.1.4 Mixer Section
(19) (26) (27) (26) (27) (28) (29)
(16) (20) (21) (22) (20) (21) (22)
(48) (49)
VOLUME - adjust the volume of Oscillator 1, 2, or 3.
(20)
ON/OFF - select the sources to play from OSC1, OSC2, OSC3, Noise, and
(21)
External Input, or any combination of these 5 sources.
NOISE VOLUME - adjust the level of the internal Noise source.
(22)
WHITE/PINK - switch the internal Noise source from Pink noise to White
(23)
noise.
(44) (36) (44)
OVERLOAD - indicates when the audio levels of the mix are overloading
(24)
the mixer section.
(43) (43)
EXT IN VOLUME - adjust the level of any external source playing into the
(25)
External Input. If nothing is connected to the external input, then the main
(42) (35) (42)
output is connected here and can be adjusted by this volume knob.
LFO Triangular (OUTPUT) - outputs the internal LFO triangular-wave
(26)
signal.
