Behringer MODEL D User Manual page 17

17
MODEL D User Manual

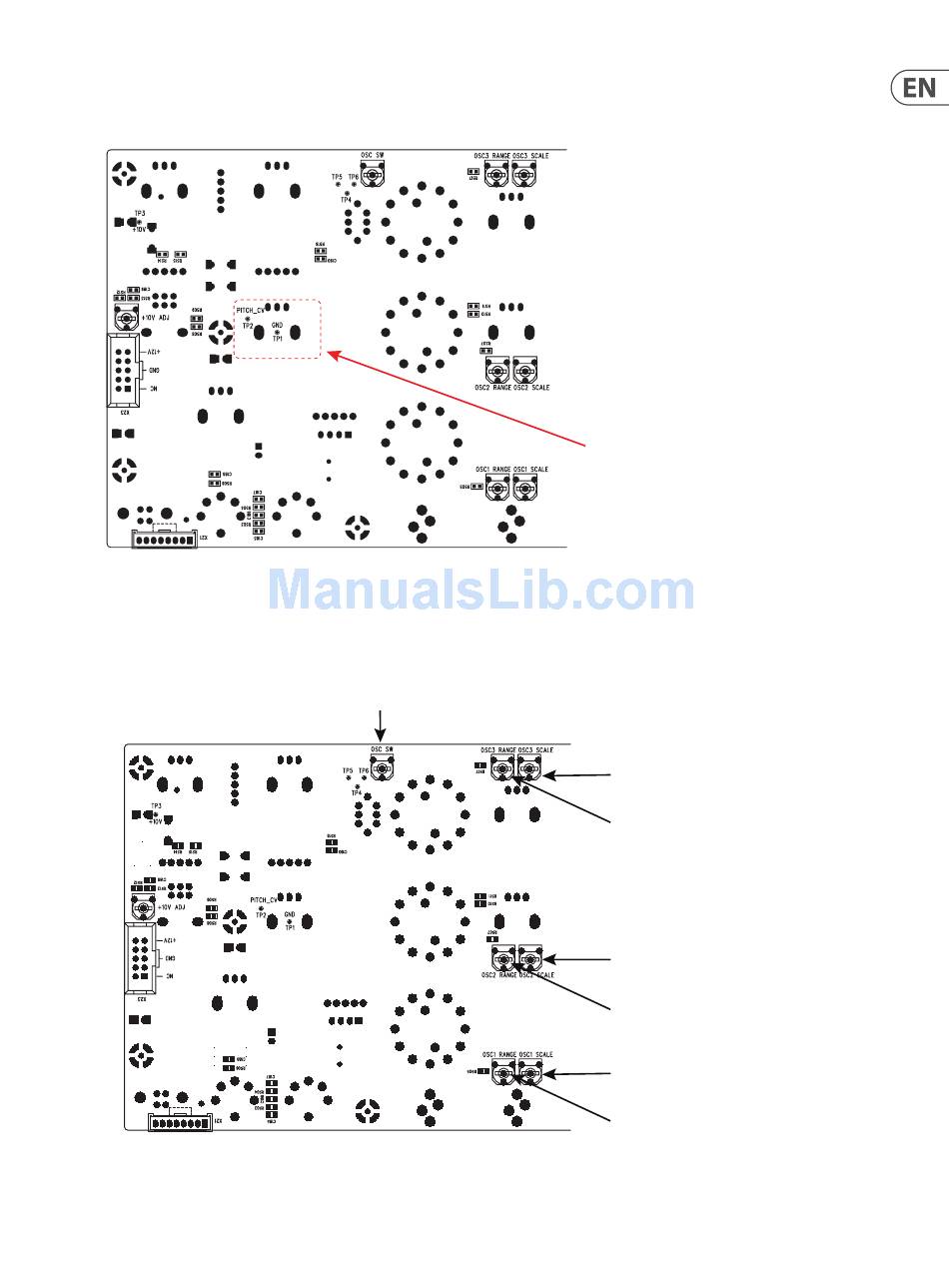

The diagram below shows the Test Points TP1 and TP2 used in the PITCH/CV
calibration. Take a look at the PCB and locate these two test points.
The diagram below shows the adjustment trimpots that are used in the Oscillator
and Octave range calibration procedures. Take a look at your PCB and locate these
various trimpots.
Highest C6
Octave Adjustment
DC Voltmeter DC Voltmeter
0.001
Highest A5
Lowest A2
OSC3 Scale Adjustment
OSC3 Range Adjustment
OSC2 Scale Adjustment
OSC2 Range Adjustment
OSC1 Scale Adjustment
OSC1 Range Adjustment
