MODEL D User Manual

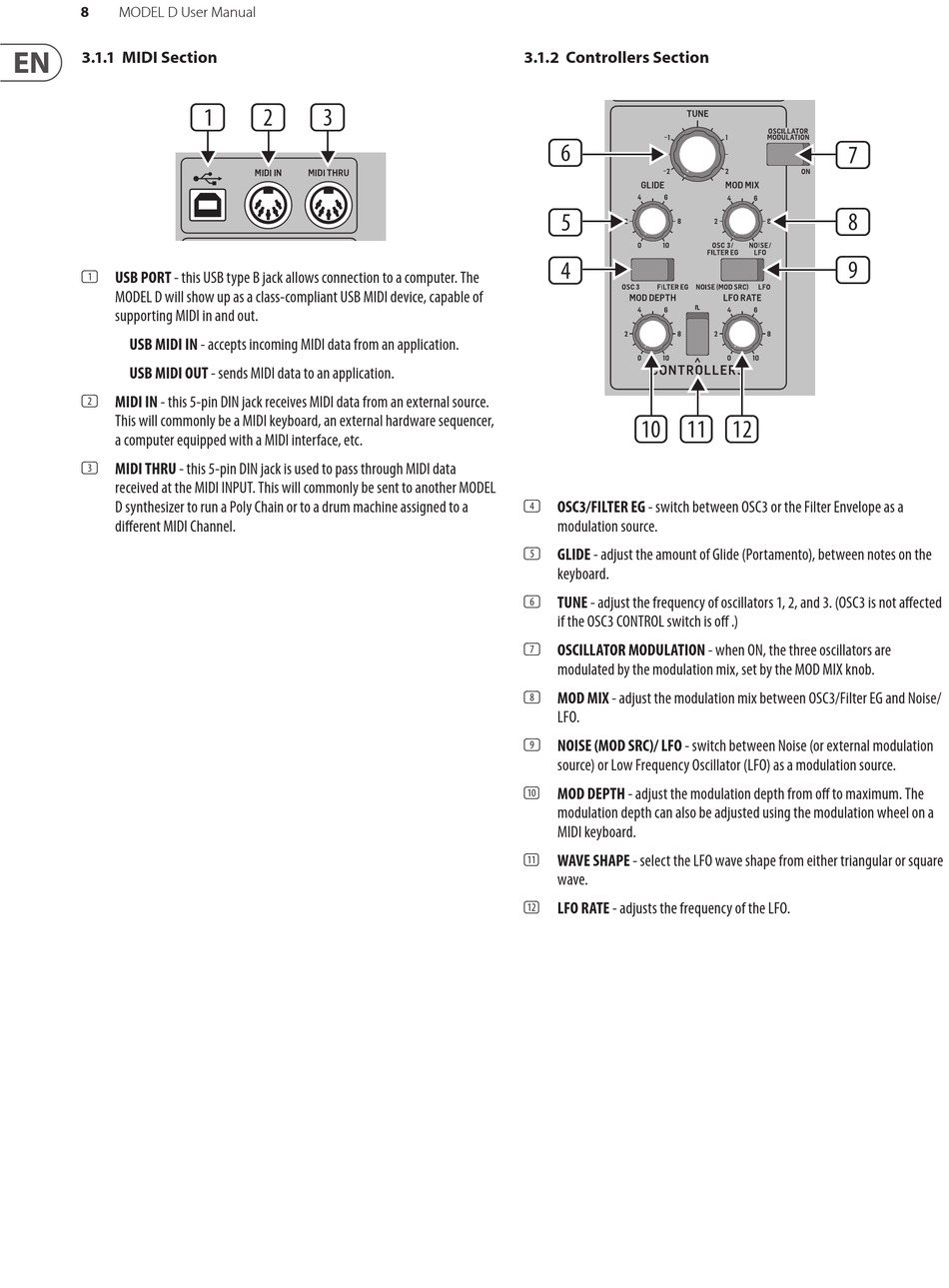

3.1.1 MIDI Section
(1) (2) (3)
(1) USB PORT - this USB type B jack allows connection to a computer. The
(6)
MODEL D will show up as a class-compliant USB MIDI device, capable of
supporting MIDI in and out.
USB MIDI IN - accepts incoming MIDI data from an application.
(5)
USB MIDI OUT - sends MIDI data to an application.
(4)
(2) MIDI IN - this 5-pin DIN jack receives MIDI data from an external source.
This will commonly be a MIDI keyboard, an external hardware sequencer,
a computer equipped with a MIDI interface, etc.
(3) MIDI THRU - this 5-pin DIN jack is used to pass through MIDI data
received at the MIDI INPUT. This will commonly be sent to another MODEL
D synthesizer to run a Poly Chain or to a drum machine assigned to a
different MIDI Channel.
(10) (11) (12)
3.1.2 Controllers Section
(17) (18)
(6)
(5)
(4)
(7)
(8)
(9)
(4) OSC3/FILTER EG - switch between OSC3 or the Filter Envelope as a
modulation source.
(5) GLIDE - adjust the amount of Glide (Portamento), between notes on the
(13) (14) (15)
keyboard.
(6) TUNE - adjust the frequency of oscillators 1, 2, and 3. (OSC3 is not affected
(37) (38) (39) (40) (41)
if the OSC3 CONTROL switch is off .)
(7) OSCILLATOR MODULATION - when ON, the three oscillators are
modulated by the modulation mix, set by the MOD MIX knob.
(8) MOD MIX - adjust the modulation mix between OSC3/Filter EG and Noise/
(33)
LFO.
(9) NOISE (MOD SRC)/ LFO - switch between Noise (or external modulation
(32)
source) or Low Frequency Oscillator (LFO) as a modulation source.
MOD DEPTH - adjust the modulation depth from off to maximum. The
(10)
modulation depth can also be adjusted using the modulation wheel on a
(31)
MIDI keyboard.
WAVE SHAPE - select the LFO wave shape from either triangular or square
(11)
wave.
LFO RATE - adjusts the frequency of the LFO.
(12)
